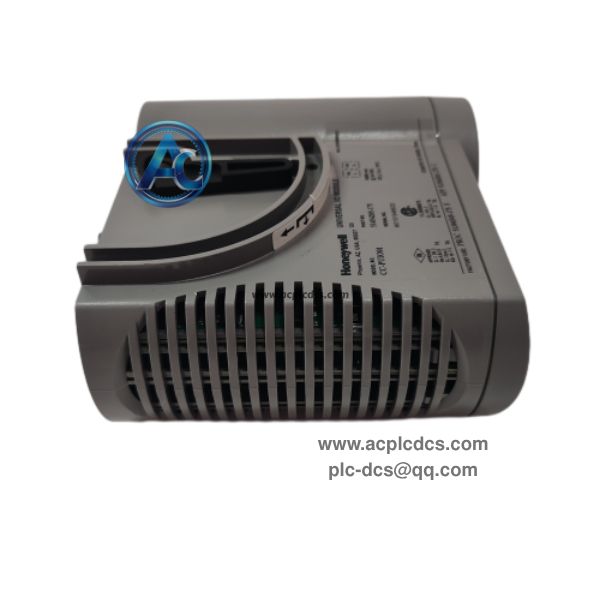

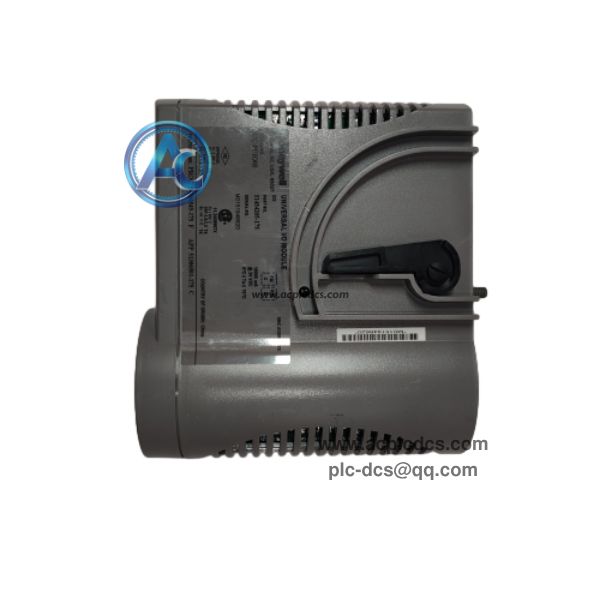

Honeywell CC-PUIO01 51454205-175 Universal Process I/O Module in stock

Honeywell CC-PUIO01 51454205-175 is a universal process I/O module for Honeywell Experion PKS DCS system, compatible with C300 controller rack. Each channel can be software configured as AI, AO, DI, DO or pulse input, realizing flexible signal access for various field instruments.

This module supports hot-swap and built-in channel isolation and self-diagnosis function. It reduces the types of spare cards and simplifies engineering configuration, widely used in petrochemical, refining and power plant process control cabinets for replacement and backup.

Data Parameters

• 1. Brand: Honeywell.

• 2. Model: CC-PUIO01, Part No: 51454205-175.

• 3. Product Type: Universal Process I/O Module.

• 4. Application: Experion PKS DCS, C300 controller I/O rack.

• 5. Feature: Software configurable multi-signal type per channel.

• 6. Characteristic: Channel isolation, full self-diagnosis, hot swap support.

• 7. Signal: 4-20mA, RTD, thermocouple, dry contact, pulse signal.

• 8. Package: Complete I/O card for standard C300 rack slot.

• 9. Mounting: Rack slot installation, match with IOTA terminal assembly.

• 10. Operating Temperature: -20℃ ~ +70℃.

Core Functions

• 1. Collect analog and discrete signals from transmitters, valves and field switches.

• 2. Output analog and digital control signals to actuators and solenoid valves.

• 3. Support on-site channel reconfiguration through Experion control software.

• 4. Detect channel faults, open circuit and short circuit and upload alarm information.

• 5. Realize high-speed data exchange with C300 controller via backplane bus.

Application Scenarios

• 1. Petrochemical and refinery Experion PKS distributed control system.

• 2. Power plant thermal process monitoring and automatic control cabinet.

• 3. LNG terminal, chemical reactor and pipeline control system.

• 4. Honeywell C300 DCS system transformation, maintenance and spare replacement.

• 5. Universal I/O module spare inventory backup for process plants.

FAQ

• 1. Q: What is Honeywell CC-PUIO01 51454205-175?
      A: It is a configurable universal I/O module for Honeywell Experion PKS C300 DCS system.

• 2. Q: Can channels be configured to different signal types?
      A: Yes, each channel can be independently set as AI, AO, DI, DO or pulse input.

• 3. Q: Does it support hot swap?
      A: Yes, hot swap is supported for online replacement without system shutdown.
