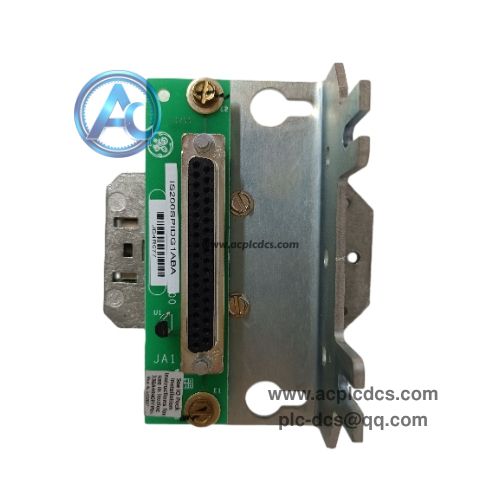

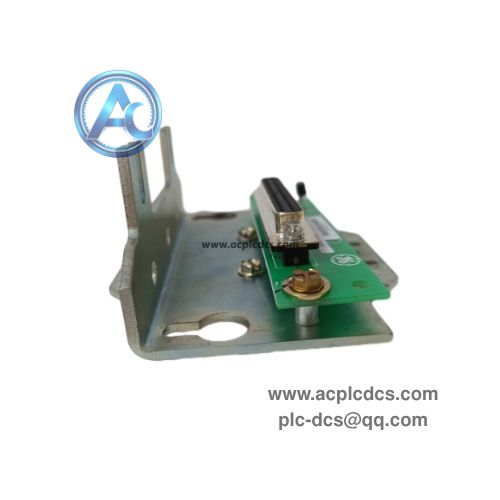

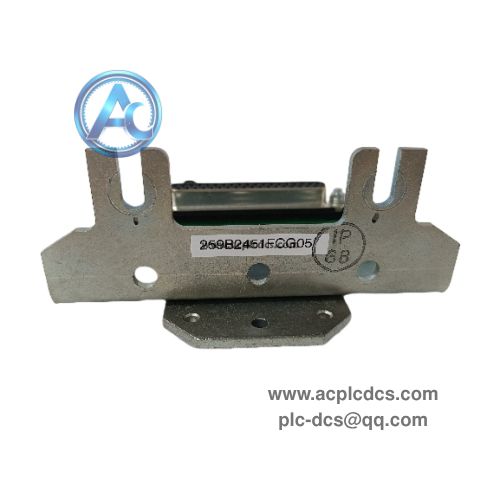

GE IS200SPIDG1ABA SPID PID Control I/O Pack in stock
GE IS200SPIDG1ABA (SPID) is a local PID control I/O pack for GE Mark VIe Speedtronic turbine control system. It integrates analog input, analog output and discrete I/O, running PID algorithm locally to handle auxiliary closed-loop control of turbine units and reduce main controller computing load.
This module communicates with the main controller through IONet, supports configurable 4-20mA / 0-10V analog signals and built-in signal diagnosis. It adopts rack-mounted structure and is widely used in gas turbine and steam turbine auxiliary control loops of power plants.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | GE |
| 2 | Model | IS200SPIDG1ABA |
| 3 | Module Type | SPID Local PID Control I/O Pack |
| 4 | Applicable System | Mark VIe Speedtronic Turbine Control System |
| 5 | Communication | IONet bus |
| 6 | Signal Type | 4-20mA / 0-10V configurable analog signal |
| 7 | Operating Temperature | -40℃ ~ +85℃ |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Onboard local PID closed-loop calculation for turbine auxiliary control loops |
| 2 | Collect analog signals from pressure, temperature and flow field transmitters |
| 3 | Output analog control signal to drive valves and regulating actuators |
| 4 | Signal fault diagnosis: wire break, overrange and sensor abnormality detection |
| 5 | Real-time data interaction with Mark VIe main controller via IONet network |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Power plant gas turbine auxiliary system pressure and temperature control |
| 2 | Steam turbine lube oil system closed-loop regulation |
| 3 | Combined cycle unit feedwater and fuel gas control loops |
| 4 | Mark VIe turbine control system distributed local I/O control |
| 5 | Thermal power plant turbine control cabinet spare parts replacement |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:What is IS200SPIDG1ABA? A:It is SPID local PID control I/O pack designed for GE Mark VIe turbine control platform. |
| 2 | Q:What communication bus does it adopt? A:It communicates with main controller through IONet bus. |
| 3 | Q:What is its advantage? A:It executes PID locally to reduce main controller load and shorten control loop response time. |
