Products Description

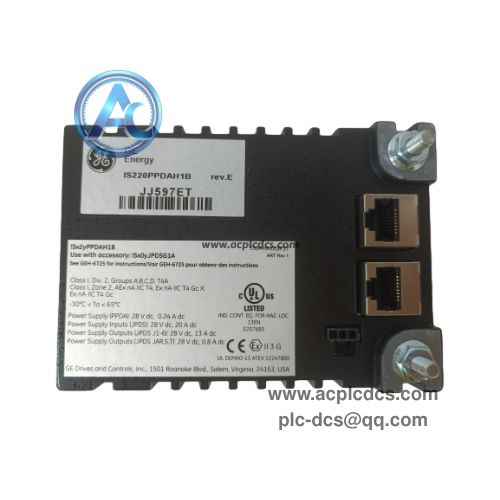

GE IS220PPDAH1B Mark VIe Power Distribution Assembly I/O Pack in stock
GE IS220PPDAH1B is a packaged power distribution assembly I/O pack for GE Mark VIe Speedtronic turbine control system. It monitors power bus health, voltage status and ground fault signals for the rack’s I/O modules and power supply boards, and sends diagnostic data to the main controller via IONet.
This module is compatible with JPDS, JPDC and JPDM power boards, supporting AC analog feedback and ground fault detection. It adopts conformal coating for harsh industrial environments and supports automatic reconfiguration after replacement. It is discontinued legacy spare widely used for gas and steam turbine control cabinet maintenance in power plants.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | GE |
| 2 | Model | IS220PPDAH1B |
| 3 | Module Type | PPDA Power Distribution Assembly I/O Pack |
| 4 | Applicable System | GE Mark VIe Speedtronic Turbine DCS |
| 5 | Nominal Input | 24VDC, 115/230VAC analog feedback |
| 6 | Communication | Dual redundant IONet Ethernet ports |
| 7 | Compatible Boards | JPDS, JPDC, JPDM power distribution boards |
| 8 | Coating | Conformal coated for harsh environment |
| 9 | Operation Temperature | -30℃ ~ +65℃ |
| 10 | Status | Discontinued legacy power monitoring spare part |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Monitor voltage status and health of redundant power buses inside Mark VIe turbine control rack. |
| 2 | Detect ground fault and overvoltage conditions to prevent power system failure and turbine trip. |
| 3 | Collect AC analog feedback signals from matched JPD series power distribution boards. |
| 4 | Transmit real-time power diagnostic data to Mark VIe controller via redundant IONet Ethernet. |
| 5 | Built-in self-diagnostic tests and auto-reconfiguration after module replacement. |
Application Scenarios
| No. | Application |
|---|---|
| 1 | GE Mark VIe gas turbine and steam turbine control cabinet power monitoring system in power plants |
| 2 | Oil & gas compressor turbine unit power distribution fault detection and early warning system |
| 3 | Critical power bus health monitoring for high-reliability turbine safety control rack |
| 4 | Legacy Mark VIe turbine control system spare replacement and cabinet maintenance |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q: What is GE IS220PPDAH1B? A: It is PPDA power distribution assembly I/O pack for Mark VIe, used for power bus monitoring and ground fault detection. |
| 2 | Q: What boards does it work with? A: It works together with JPDS, JPDC, JPDM power distribution boards inside the turbine control rack. |
| 3 | Q: What is auto-reconfiguration? A: After replacing the module, the system can automatically recognize the hardware without manual configuration. |
