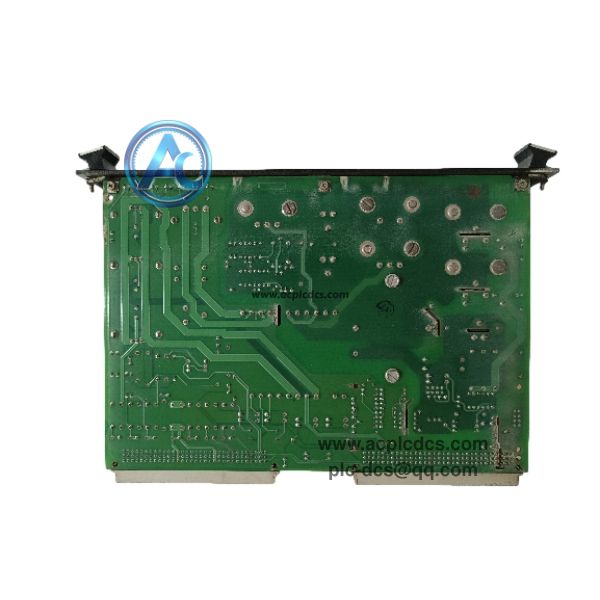

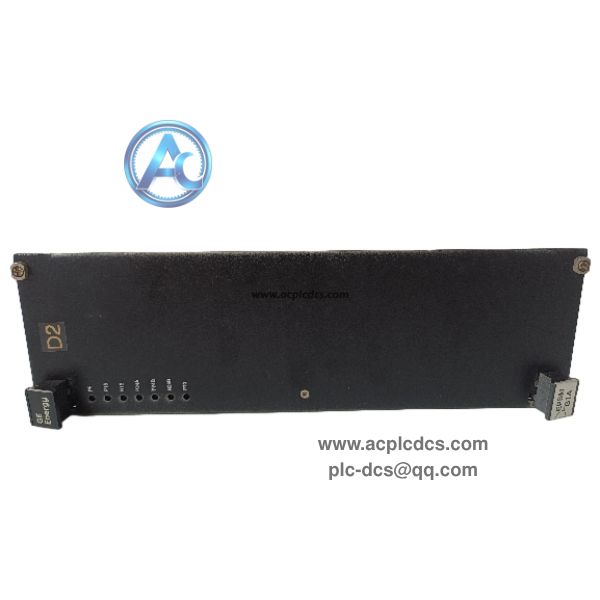

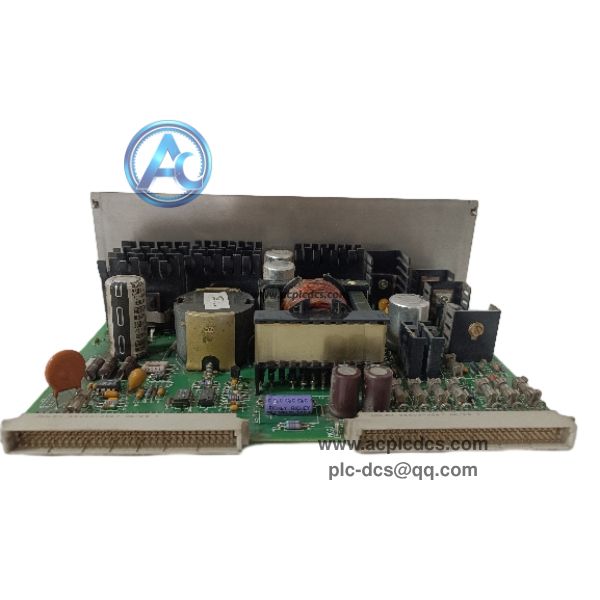

GE IS200EPSMG1AED Exciter Power Supply Monitor Board in stock
GE IS200EPSMG1AED is the exciter power supply monitoring board designed for GE Mark VIe turbine control and EX2100 generator excitation system. It continuously samples multiple power rail voltage and current signals inside the excitation rack, tracking power supply operating status in real time.
This board performs hardware overvoltage, undervoltage and overcurrent detection, sending alarm and trip signals to the main control unit once abnormalities are captured. It adopts standard rack-mounted structure and can work stably under high electromagnetic interference environment in power plant control cabinets.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | GE |
| 2 | Model | IS200EPSMG1AED |
| 3 | Module Type | Exciter Power Supply Monitor Board |
| 4 | Applicable System | EX2100 Excitation System, Mark VIe Turbine Control |
| 5 | Monitoring Items | Multi-channel voltage and current of internal power rails |
| 6 | Installation | Rack mount, fits EX2100 backplane |
| 7 | Operating Temperature | -30℃ ~ +65℃ |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Real-time monitoring of multiple power supply voltage and current in exciter cabinet |
| 2 | Hardware detection for overvoltage, undervoltage and overcurrent faults |
| 3 | Transmit power status data and fault alarm signals to Mark VIe controller |
| 4 | Provide power abnormality protection logic to avoid excitation equipment damage |
| 5 | Onboard status indicator lights to show working and fault status locally |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Power plant steam turbine generator EX2100 excitation system |
| 2 | Gas turbine generator excitation power supply online monitoring |
| 3 | Hydro generator excitation cabinet power safety protection |
| 4 | Mark VIe turbine control system auxiliary monitoring unit |
| 5 | Thermal power unit generator excitation cabinet maintenance retrofit |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:What is IS200EPSMG1AED? A:It is exciter power supply monitor board used in GE EX2100 generator excitation system. |
| 2 | Q:What faults can this board detect? A:It monitors overvoltage, undervoltage and overcurrent faults of exciter internal power rails. |
| 3 | Q:Which control platform it matches? A:It works with GE Mark VIe turbine control platform and EX2100 excitation rack. |
