Products Description

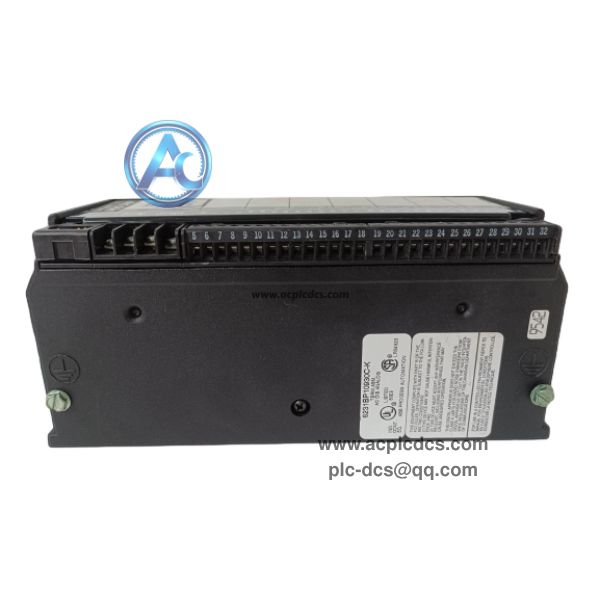

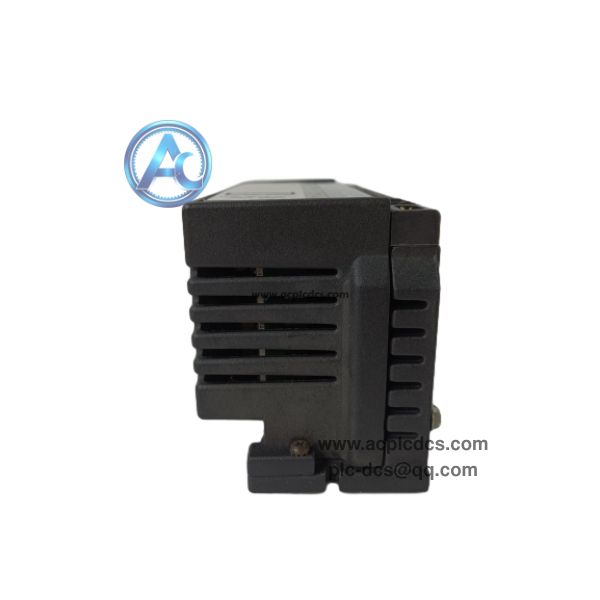

GE IC660BBA104 6231BP10910 I/O Analog Combined I/O Module in stock
GE IC660BBA104 (6231BP10910) is a Genius distributed analog combined I/O module from GE Fanuc, featuring 4 analog input channels and 2 analog output channels for 4-20mA current loop signals. It adopts high isolation design to suppress field electromagnetic interference and realize reliable signal conversion between field transmitters and upper PLC controllers.
This module is widely deployed in distributed automation systems. It supports software configuration and built-in channel diagnosis, suitable for continuous process monitoring and closed-loop regulation under harsh industrial conditions.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | GE Fanuc |
| 2 | Model | IC660BBA104, Part No:6231BP10910 |
| 3 | Channel | 4AI + 2AO, 4-20mA current signal |
| 4 | Power Supply | 115VAC / 125VDC |
| 5 | Isolation | 1500V AC channel to channel isolation |
| 6 | Input Accuracy | 0.1% full scale at 25℃ |
| 7 | Operating Temperature | -40℃ ~ 70℃ |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Real-time acquisition of 4-20mA analog signal from field sensors and transmitters |
| 2 | Output 4-20mA control signal to drive valves, actuators and regulators |
| 3 | Comprehensive channel diagnosis: open wire, overrange, underrange and fault feedback detection |
| 4 | Software configurable conversion time and linear scaling for engineering unit conversion |
| 5 | Data communication with main controller via Genius bus for distributed I/O network |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Power plant distributed control and auxiliary system monitoring |
| 2 | Petrochemical process flow, pressure and temperature closed-loop control |
| 3 | Water treatment plant dosing control and water quality parameter monitoring |
| 4 | Pulp & paper industrial automation and continuous production control |
| 5 | General manufacturing factory remote I/O signal collection system |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:What bus does IC660BBA104 use? A:It communicates through Genius bus, compatible with Genius I/O distributed system. |
| 2 | Q:Does it support channel isolation? A:Yes, 1500VAC isolation between channels, effectively resist industrial noise interference. |
| 3 | Q:What signal type it supports? A:Standard 4-20mA current loop signal, widely used for industrial transmitters. |
