Products Description

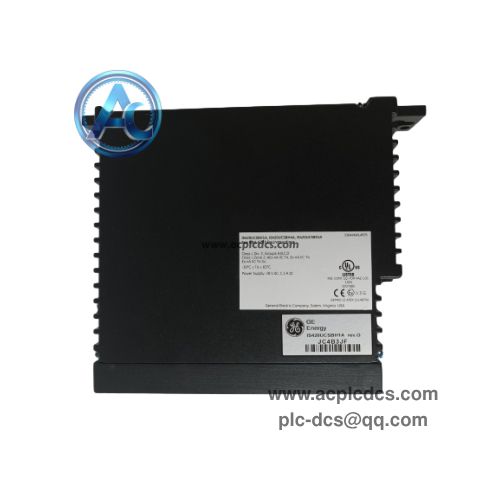

GE IS420UCSBH1A Mark VIe UCSB Universal Controller Single Board
GE IS420UCSBH1A is the UCSB universal single-board controller for GE Mark VIe turbine distributed control system. It adopts Intel EP80579 processor and QNX real-time operating system, responsible for executing turbine control logic, processing IONet data and communicating with HMI/SCADA system.

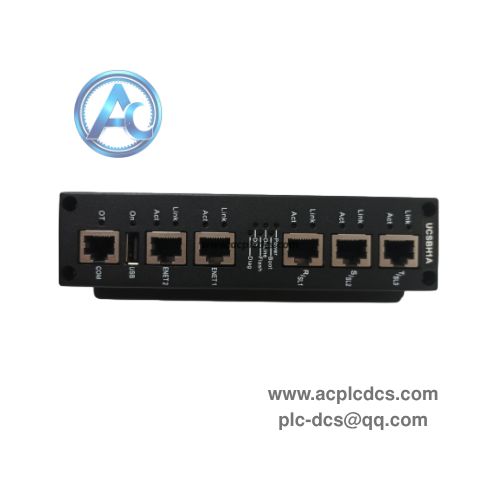

This controller uses passive heat dissipation design without fan, equipped with ECC memory and multiple Ethernet ports for redundant network communication. It supports simplex configuration for plant auxiliary control. It is discontinued legacy spare widely used for gas and steam turbine control system upgrade and maintenance in power plants.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | GE |
| 2 | Model | IS420UCSBH1A |
| 3 | Module Type | UCSB Universal Controller Single Board |
| 4 | Applicable System | GE Mark VIe Speedtronic Turbine DCS |
| 5 | Processor | Intel EP80579 600MHz |
| 6 | Memory | 256MB DDR2 ECC RAM |
| 7 | Operating System | QNX Neutrino RTOS |
| 8 | Power Supply | 24~28VDC |
| 9 | Cooling Method | Passive heat dissipation, fanless |
| 10 | Status | Discontinued legacy controller spare part |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Run real-time turbine control logic, PID calculation and sequence control algorithms for auxiliary equipment. |
| 2 | Communicate with Mark VIe I/O packs via IONet high-speed Ethernet to collect field signals and send control commands. |
| 3 | Multiple Ethernet ports support independent network for control bus and HMI/SCADA communication. |
| 4 | ECC memory provides error detection and correction to enhance long-term stable operation in harsh industrial environment. |
| 5 | Built-in self-diagnostic function to monitor controller health status and report fault alarms automatically. |
Application Scenarios
| No. | Application |
|---|---|
| 1 | GE Mark VIe gas turbine and steam turbine auxiliary balance-of-plant control system in power plants |
| 2 | Oil & gas power generation unit auxiliary equipment sequence and interlock control system |
| 3 | Power plant boiler, pump and valve auxiliary control with simplex Mark VIe controller configuration |
| 4 | Legacy Mark VIe distributed control system spare replacement and on-site retrofit maintenance |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q: What is GE IS420UCSBH1A? A: It is UCSB single board controller for Mark VIe DCS, used for auxiliary equipment real-time control and IONet communication. |
| 2 | Q: What is the difference between IS420UCSBH1A and UCSBS1A? A: IS420UCSBH1A is standard simplex controller; UCSBS1A is SIL certified safety controller for Mark VIeS safety system. |
| 3 | Q: Does this controller need fan? A: No, it adopts fanless passive heat dissipation design, which reduces fan failure risk. |
