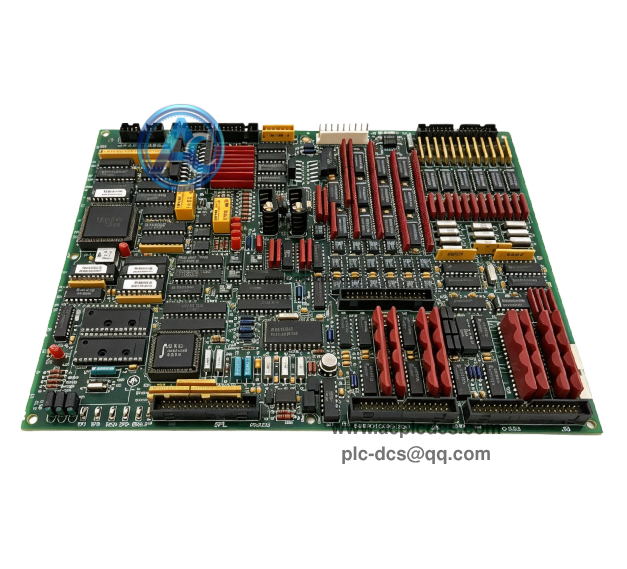

GE DS200TCQAG1BHE RST Analog I/O Board
GE DS200TCQAG1BHE is an RST analog I/O board for GE Mark V Speedtronic gas and steam turbine control system. It acquires and processes analog measurement signals for turbine speed, temperature and pressure, performing signal conditioning and closed-loop control calculation for turbine regulation.
This board has heavy conformal coating for harsh cabinet environments, equipped with onboard signal circuits, LED diagnostic indicators and backplane connectors. It exchanges analog data with other rack boards via the core bus. It is a discontinued legacy PCB, mainly used as surplus or refurbished spare parts for power plant Mark V turbine control retrofit and maintenance.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | GE General Electric |
| 2 | Model | DS200TCQAG1BHE |
| 3 | Module Type | RST Analog I/O Board |
| 4 | Compatible System | Mark V Speedtronic Gas / Steam Turbine Control System |
| 5 | Coating | Heavy conformal coating for harsh industrial cabinet environment |
| 6 | Diagnostics | Onboard LED indicators for operating status and fault diagnosis |
| 7 | Operating Temperature | 0℃ ~ +60℃ |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Collect analog signals of turbine speed, pressure and temperature from terminal boards |
| 2 | Signal conditioning, scaling and filtering for analog measurement inputs |
| 3 | Transmit processed analog data through core bus to main turbine controller |
| 4 | LED status indicators to show running status and capture board fault codes |
| 5 | Heavy conformal coating protects PCB against humidity, dust and corrosive gas |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Power plant Mark V gas and steam turbine control rack analog signal processing |
| 2 | Combined cycle power unit turbine closed-loop speed and process control |
| 3 | Oil & gas power generation turbine analog measurement monitoring system |
| 4 | Industrial heavy turbine control cabinet with high humidity or dusty environment |
| 5 | Legacy Mark V turbine control system spare parts replacement and retrofit |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:What is GE DS200TCQAG1BHE? A:It is RST analog I/O board for Mark V Speedtronic turbine control system, used for turbine analog signal acquisition and processing, with heavy conformal coating for harsh cabinet conditions. |
| 2 | Q:What does BHE suffix stand for? A:HE means heavy conformal coating version, designed for cabinets with high humidity, dust or corrosive atmosphere. |
| 3 | Q:Is this board still manufactured? A:No, GE discontinued production, only surplus and refurbished spare parts available for legacy turbine system maintenance. |
