Products Description

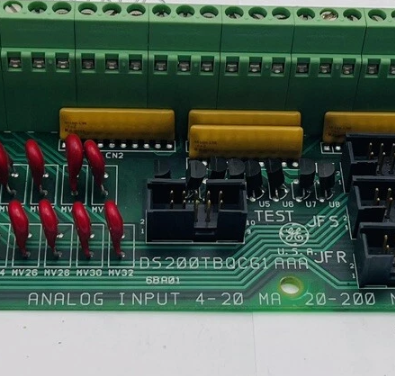

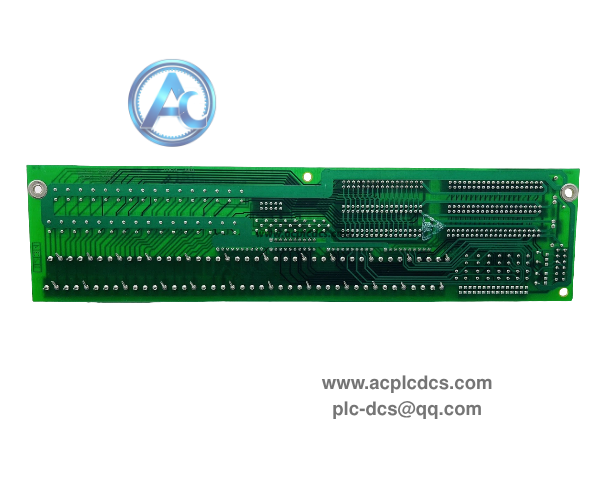

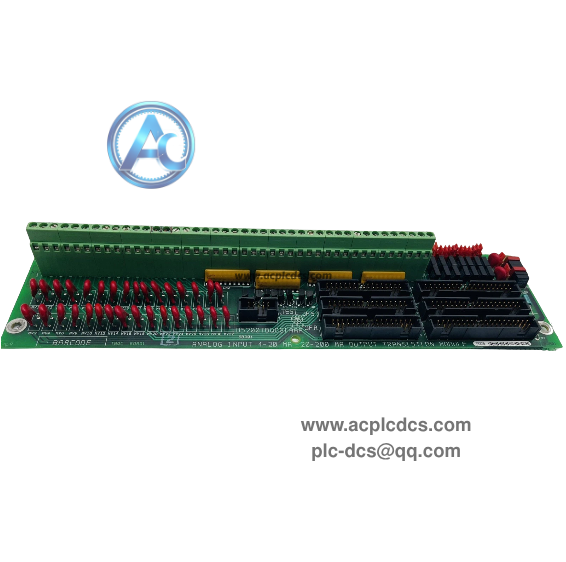

GE DS200TBQCG1A Analog Input Termination Board
GE DS200TBQCG1A is an analog input termination board for GE Mark V Speedtronic gas and steam turbine control system. It receives 4-20mA analog signals from field transmitters and sensors, converting and forwarding these measurement signals to the main turbine controller for closed-loop regulation.
This board is equipped with terminal blocks, configurable jumpers and multi-pin ribbon connectors for signal scaling and wiring setup. It collects critical process parameters including pressure, temperature and flow for turbine monitoring. It is an obsolete legacy PCB, widely used as spare parts for existing power plant Mark V turbine control cabinets.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | GE General Electric |
| 2 | Model | DS200TBQCG1A |
| 3 | Module Type | Analog Input Termination Board |
| 4 | Compatible System | Mark V Speedtronic Gas / Steam Turbine Control System |
| 5 | Input Signal | 4-20mA analog current loop signal |
| 6 | Hardware | Terminal blocks, configuration jumpers, multi-pin ribbon connectors |
| 7 | Operating Temperature | 0℃ ~ +60℃ |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Receive 4-20mA analog measurement signals from field pressure, temperature and flow transmitters |
| 2 | Onboard jumper configuration for signal scaling and channel parameter adjustment |
| 3 | Transmit conditioned analog measurement data to Mark V main controller via ribbon cable |
| 4 | Terminal block wiring interface for convenient field wiring, inspection and maintenance |
| 5 | Signal filtering to suppress field interference and ensure stable analog measurement data |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Power plant Mark V gas and steam turbine control cabinet analog signal termination |
| 2 | Combined cycle power unit turbine process parameter monitoring and closed-loop control |
| 3 | Oil & gas power generation turbine sensor signal acquisition system |
| 4 | Heavy industry large turbine analog measurement signal wiring cabinet |
| 5 | Legacy Mark V turbine control system spare parts replacement and maintenance retrofit |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:What is GE DS200TBQCG1A? A:It is analog input termination board for Mark V Speedtronic turbine control system, used to collect 4-20mA sensor signals for turbine process monitoring. |
| 2 | Q:What is the difference between DS200TBQBG1A and DS200TBQCG1A? A:TBQBG1A is digital I/O termination board; TBQCG1A is analog input termination board for 4-20mA loop signals. |
| 3 | Q:Is this board still manufactured? A:No, GE discontinued production, only surplus and refurbished spare parts available for legacy turbine system maintenance. |
