Products Description

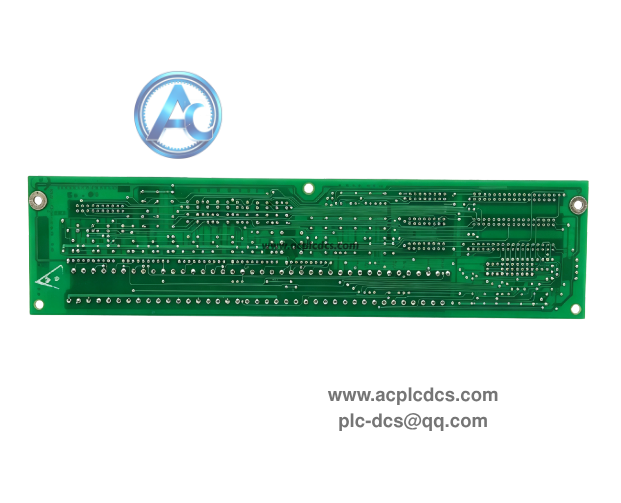

GE DS200TBQBG1A Digital I/O Termination Board
GE DS200TBQBG1A is a digital I/O termination board for GE Mark V Speedtronic gas and steam turbine control system. It serves as the wiring termination interface for field digital signals, connecting field switches and relay signals to the main turbine controller backplane.

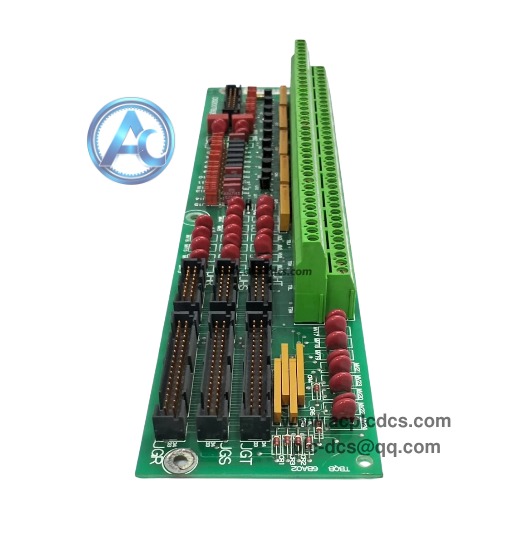

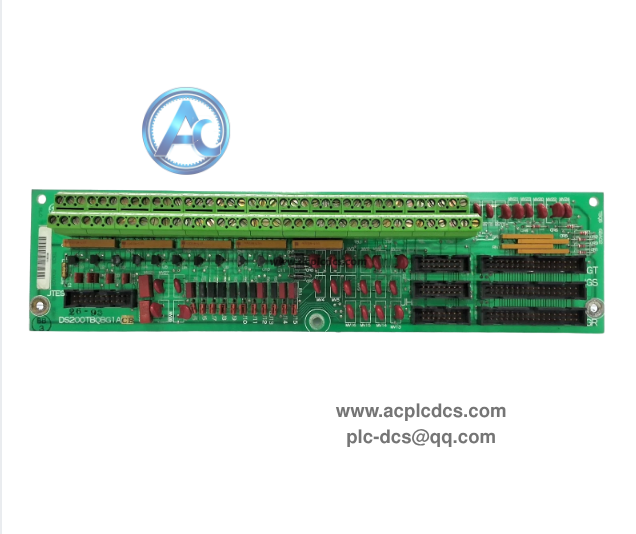

This board is equipped with dual large terminal blocks, multiple jumpers and multi-pin connectors for signal routing and wiring configuration. It handles discrete binary signals for turbine interlock, trip and auxiliary equipment status monitoring. It is an obsolete legacy hardware used for spare parts replacement of old power plant turbine control cabinets.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | GE General Electric |
| 2 | Model | DS200TBQBG1A |
| 3 | Module Type | Digital I/O Termination Board |
| 4 | Compatible System | Mark V Speedtronic Gas / Steam Turbine Control System |
| 5 | Hardware | 2 terminal blocks, 15 jumpers, 3×34-pin, 3×16-pin connectors |
| 6 | Signal Type | Dry contact discrete digital input / output signals |
| 7 | Operating Temperature | 0℃ ~ +60℃ |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Terminate field dry contact digital signals between turbine controller and field devices |
| 2 | Jumper configuration for signal routing, channel definition and wiring adaptation |
| 3 | Transmit interlock, trip and auxiliary equipment status signals to main controller |
| 4 | Terminal block wiring interface for convenient field wiring, inspection and maintenance |
| 5 | Signal isolation and noise suppression for discrete binary control loops |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Power plant Mark V gas and steam turbine control cabinet signal termination |
| 2 | Combined cycle power unit turbine safety interlock and trip protection system |
| 3 | Oil & gas power generation turbine auxiliary equipment status monitoring |
| 4 | Heavy industry large turbine discrete control signal wiring cabinet |
| 5 | Legacy Mark V turbine control system spare parts replacement and maintenance |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:What is GE DS200TBQBG1A? A:It is digital I/O termination board for Mark V Speedtronic turbine control system for discrete signal wiring termination. |
| 2 | Q:What are jumpers used for on this board? A:Onboard jumpers are used to configure channel assignment and signal routing to match site wiring requirements. |
| 3 | Q:Is this board still in production? A:No, GE discontinued production, only surplus and refurbished spare parts available for legacy turbine system maintenance. |
