Products Description

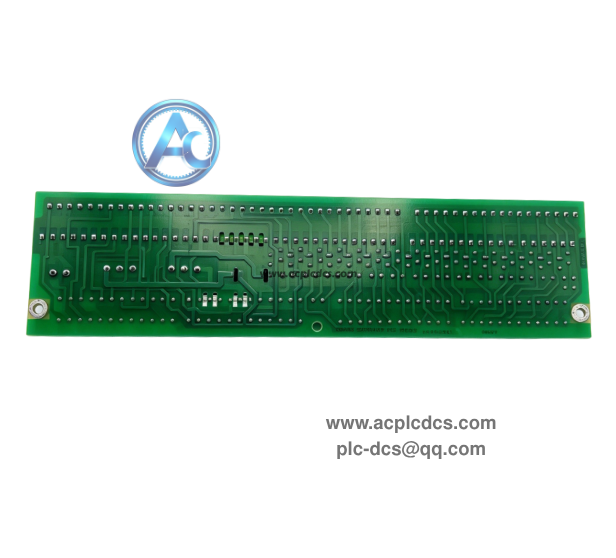

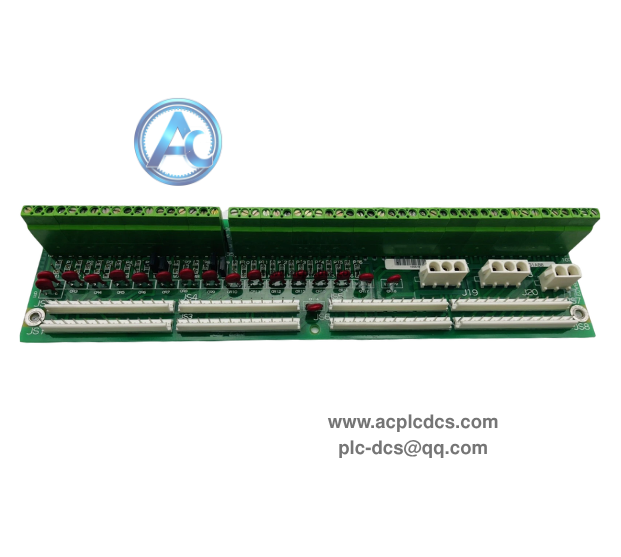

GE DS200DTBDG1A Contact Output Expansion Terminal Board
GE DS200DTBDG1A is a contact output expansion terminal board for GE Mark V Speedtronic gas and steam turbine control system. It expands discrete output termination capacity, serving as the wiring interface between the main turbine controller and field actuators, relays and solenoid valves.
This board is fitted with dual terminal blocks, multiple test points, jumpers and 34-pin connectors for signal routing and circuit inspection. It handles auxiliary control and interlock output signals for turbine systems. It is a discontinued legacy board mainly used as spare replacement parts for existing power plant turbine control cabinets.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | GE General Electric |
| 2 | Model | DS200DTBDG1A |
| 3 | Module Type | Contact Output Expansion Terminal Board |
| 4 | Compatible System | Mark V Speedtronic Gas / Steam Turbine Control System |
| 5 | Hardware | 2 terminal blocks, test points, jumpers, 3 × 34-pin connectors |
| 6 | Signal Type | Discrete contact output signals for turbine auxiliary control |
| 7 | Operating Temperature | 0℃ ~ +60℃ |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Expand contact output termination channels for Mark V turbine controller |
| 2 | Route control signals to field relays, solenoid valves and auxiliary actuators |
| 3 | Provide onboard test points for circuit troubleshooting and signal measurement |
| 4 | Terminal block interface for convenient field wiring, inspection and maintenance |
| 5 | Transmit turbine auxiliary interlock and sequence control output signals |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Power plant Mark V gas and steam turbine control cabinet signal termination |
| 2 | Combined cycle power unit auxiliary equipment sequence control |
| 3 | Oil & gas power generation turbine interlock and valve drive control |
| 4 | Heavy industry large turbine control system wiring expansion |
| 5 | Legacy Mark V system spare parts replacement and maintenance retrofit |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:What is GE DS200DTBDG1A? A:It is contact output expansion terminal board for Mark V Speedtronic turbine control system to expand discrete output wiring terminals. |
| 2 | Q:What are the test points on the board used for? A:Onboard TP test points are for technicians to measure signals and diagnose circuit faults during maintenance. |
| 3 | Q:Is this board still in active production? A:No, GE has discontinued production, only surplus and refurbished spare parts available for legacy turbine system maintenance. |
