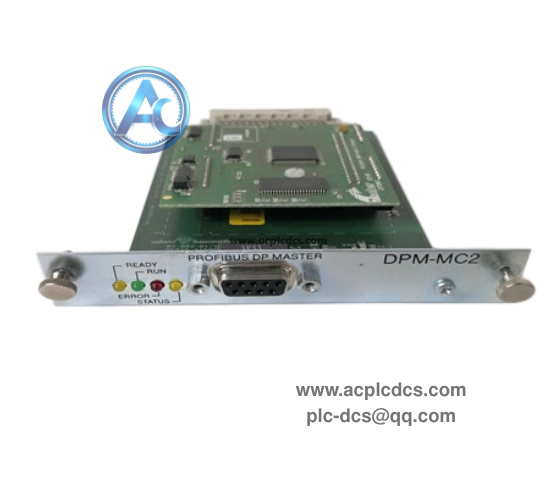

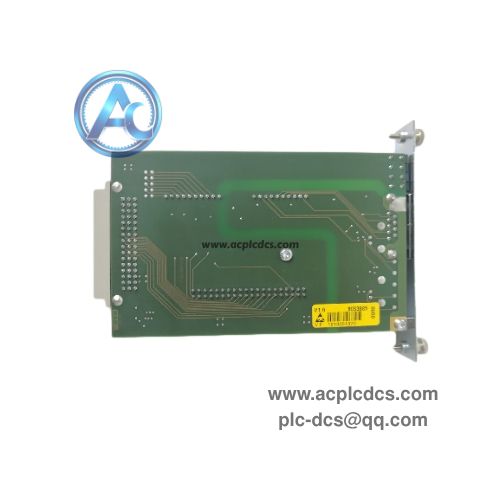

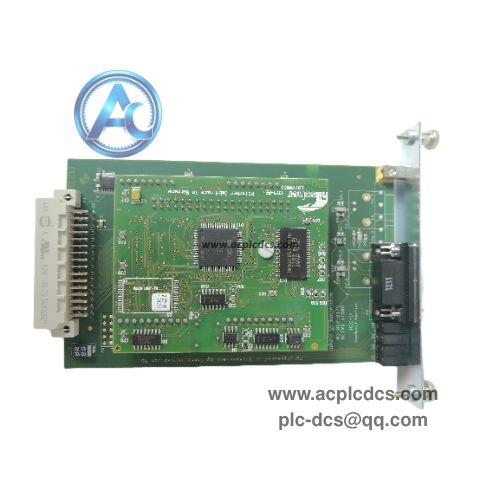

EATON DPM-MC2 PROFIBUS DP Master Communication Module in stock
EATON DPM-MC2 is a PROFIBUS DP master communication card specially designed for Eaton MICRO PANEL MC2 series HMI units. It complies with EN50170 standard and acts as a fieldbus master to manage PROFIBUS DP slave devices and realize high-speed field data exchange.
This plug-in slot module adopts isolated 9-pin D-SUB connector. It is widely used as legacy spare parts for industrial automation system maintenance replacement in manufacturing and process industries.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | EATON |
| 2 | Model | DPM-MC2 |
| 3 | Module Type | PROFIBUS DP Master Communication Module |
| 4 | Interface | Isolated 9-pin D-SUB female |
| 5 | Protocol Standard | EN50170 PROFIBUS DP |
| 6 | Operating Temperature | 0 ~ +50°C |
| 7 | Status | Legacy spare for MICRO PANEL MC2 |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Act as PROFIBUS DP master station to manage all slave devices on the bus network |
| 2 | Realize bidirectional real-time data exchange between MC2 HMI and PROFIBUS DP slaves |
| 3 | Support flexible bus parameter configuration for different automation network requirements |
| 4 | Isolated communication circuit to improve anti-interference capability in industrial environment |
| 5 | Front panel LED indicators for module running and communication fault status |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Eaton MICRO PANEL MC2 HMI fieldbus communication expansion |
| 2 | Factory automation production line PROFIBUS DP networking control |
| 3 | Drive and inverter data acquisition and monitoring systems |
| 4 | Legacy automation system spare replacement and retrofit |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q: What is EATON DPM-MC2? A: It is PROFIBUS DP master communication card for Eaton MICRO PANEL MC2 HMI to expand fieldbus communication. |
| 2 | Q: Can DPM-MC2 be used on other HMIs? A: No, it is only compatible with Eaton MICRO PANEL MC2 series devices with dedicated slot. |
| 3 | Q: Can plug or remove this module under power? A: No, installation and disassembly must be carried out when the equipment is de-energized. |
