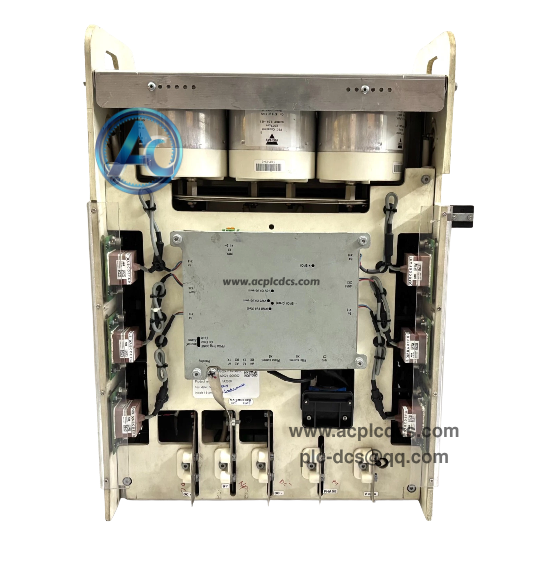

ABB PBAE10A01 3BHB024711R0020 ACS2000 Medium Voltage Phase Module
ABB PBAE10A01 3BHB024711R0020 is a medium voltage phase module for ABB ACS2000 series medium voltage variable frequency drives. It integrates three 47UF capacitors, acting as the core power filtering and power conversion unit for the ACS2000 1MVA drive system.
This module adopts compact rack-mounted structure, with stable capacitor bank for DC link filtering. It serves as spare replacement parts for ACS2000 VFDs, widely used in mining, cement, water treatment and oil & gas heavy-duty motor speed control systems.
Main Specifications
| Brand & Model | Brand: ABB; Model: PBAE10A01; Part No:3BHB024711R0020; Series: ACS2000 MV Drive |
| Type | Medium Voltage Phase Module, 6k100 / 1MVA |
| Capacitor Configuration | 3 × 47UF Capacitor Bank for DC-link filtering |
| Compatible Drive | ABB ACS2000 medium voltage variable frequency drive |
| Operating Temperature | -20℃ ~ +70℃; Industrial EMC protection |
| Mounting | Rack installation inside ACS2000 converter cabinet |
Core Functions
| DC Link Filtering | Built-in three 47UF capacitors to stabilize DC bus voltage and suppress voltage ripple. |
| Power Conversion Support | Work with power semiconductors to complete AC-DC-AC energy conversion for MV motor drive. |
| Voltage Stabilization | Smooth DC bus fluctuation to guarantee stable output waveform of medium voltage inverter. |
| Overvoltage Buffer | Absorb transient surge voltage and protect internal power devices of the converter. |
| Status Monitoring | Support temperature and capacitor status monitoring linked to drive control system. |
| Modular Replacement | Standard rack module for quick disassembly and on-site spare parts replacement. |
Application Scenarios
| ACS2000 MV Drive Cabinet | ABB ACS2000 1MVA medium voltage frequency converter cabinets. |
| Heavy-Duty Motor Control | Medium voltage speed regulation for fans, pumps and compressors in cement and mining plants. |
| Oil & Gas / Chemical | Medium voltage drive spare parts for oil & gas and chemical process plants. |
| On-site Maintenance | Faulty phase module replacement and overhaul of existing ACS2000 drive systems. |
| Energy Saving Retrofit | Medium voltage motor energy-saving renovation projects for water and power industries. |
| Spare Parts Stock | Industrial maintenance spare parts inventory for power and automation teams. |
FAQ
| Question | Answer |
| What is ABB PBAE10A01 3BHB024711R0020? | It is medium voltage phase module specially designed for ABB ACS2000 series medium voltage drives. |
| What is the capacitor specification? | It is equipped with three 47UF capacitors for DC bus voltage filtering and stabilization. |
| Which drive system does it match? | It is compatible with ABB ACS2000 1MVA medium voltage variable frequency converter. |
