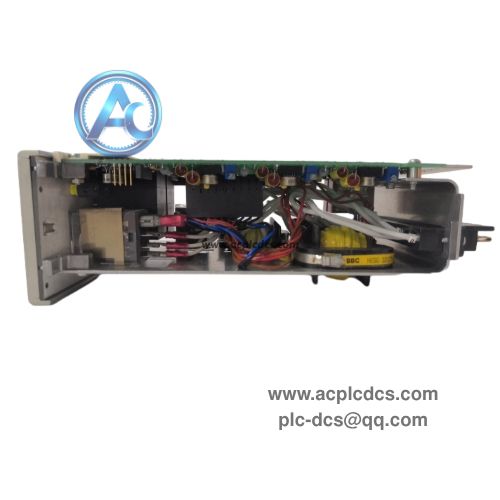

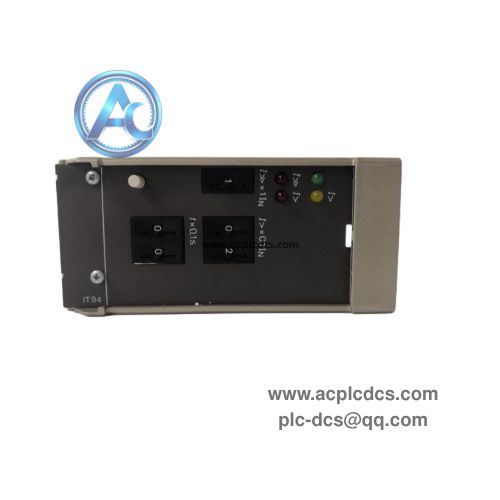

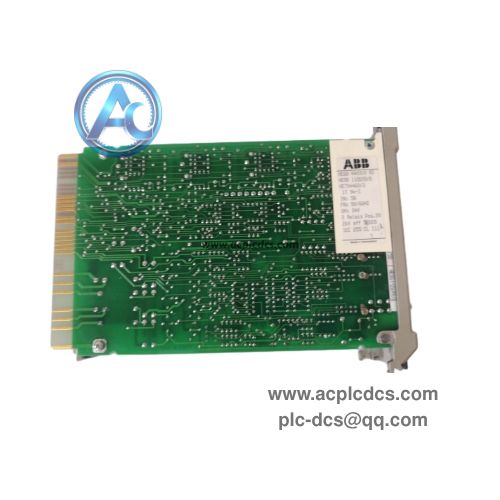

ABB IT94-3 HESG440310R2 HESG112699B Control Board in stock
ABB IT94-3 (HESG440310R2 / HESG112699B) is a high-performance control board for ABB industrial power and turbine control systems. It handles signal processing, logic calculation and data transmission between field sensors and the main controller, ensuring stable operation of the power control loop.
This board adopts robust industrial-grade circuit design with conformal coating for anti-corrosion and anti-interference. It is widely used in power plant excitation and turbine control cabinets. It is discontinued legacy spare part for maintenance and replacement of old ABB control systems.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | ABB |
| 2 | Model | IT94-3 |
| 3 | Part Number 1 | HESG440310R2 |
| 4 | Part Number 2 | HESG112699B |
| 5 | Module Type | Control Board |
| 6 | Application System | ABB Turbine & Excitation Control System |
| 7 | Coating | Conformal coated PCB |
| 8 | Mounting | Rack-mounted |
| 9 | Operating Temperature | -20℃ ~ +70℃ |
| 10 | Status | Discontinued legacy spare board |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Collect and condition analog and digital signals from field sensors and transmitters. |
| 2 | Execute local control logic and transmit processed data to the main control unit. |
| 3 | Realize data interaction and communication between different modules in the control rack. |
| 4 | Built-in circuit protection to resist electromagnetic interference and voltage surge. |
| 5 | Support self-diagnosis to detect board faults and send alarm signals for maintenance. |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Power plant generator excitation control cabinet and steam turbine control system |
| 2 | Oil & gas industry turbine control and power regulation system |
| 3 | Industrial heavy-duty power control and signal conditioning cabinet |
| 4 | Legacy ABB control system spare replacement and on-site maintenance |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q: What is ABB IT94-3? A: IT94-3 is ABB control board with part numbers HESG440310R2 and HESG112699B, used in turbine and excitation control systems. |
| 2 | Q: What is conformal coating? A: It is a protective coating on PCB to prevent moisture, dust and corrosion in harsh industrial environments. |
| 3 | Q: Is this board still in production? A: No, it is discontinued. It is only available as legacy spare for old system maintenance. |
