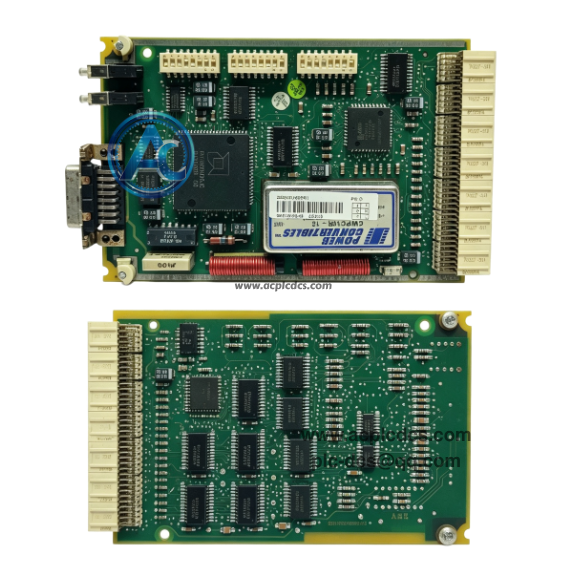

ABB CS513 3BSE000435R1 IEEE 802.3 LAN Communication Module
ABB CS513 3BSE000435R1 is an IEEE 802.3 LAN communication module developed for ABB Advant OCS DCS control system. It serves as the Ethernet network interface card to realize high-speed data exchange between controllers, workstations and field control units.
This module is a discontinued legacy spare part, with stable network transmission performance and strong anti-interference capability. It is widely used for maintenance replacement of old power, pulp & paper and chemical DCS automation systems.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | ABB |
| 2 | Model | CS513, 3BSE000435R1 |
| 3 | Module Type | LAN Communication Module |
| 4 | Supported Standard | IEEE 802.3 Ethernet |
| 5 | Applicable System | ABB Advant OCS DCS System |
| 6 | Mounting Type | S800 rack slot installation |
| 7 | Net Weight | Approx 0.2kg |
| 8 | Status | Discontinued legacy spare part |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Act as Ethernet network interface for Advant OCS controller to realize LAN communication. |
| 2 | Transmit real-time process data, alarm signals and control commands between DCS nodes. |
| 3 | Support network fault diagnosis, link status detection and communication error reporting. |
| 4 | Realize interconnection between field controllers, operator stations and engineering workstations. |
Application Scenarios
| No. | Application |
|---|---|
| 1 | ABB Advant OCS distributed control system for power plant automation |
| 2 | Pulp and paper industry process control and factory network communication |
| 3 | Chemical plant DCS real-time data transmission and system interconnection |
| 4 | Legacy ABB DCS spare replacement and old automation system maintenance |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q: What is ABB CS513 3BSE000435R1? A: It is IEEE 802.3 LAN Ethernet communication module for ABB Advant OCS DCS control system. |
| 2 | Q: Which DCS platform does it belong to? A: It is designed for ABB Advant OCS distributed control system, installed in S800 rack. |
| 3 | Q: Is this module still in production? A: It has been discontinued, only surplus and refurbished spare parts available for system repair. |
