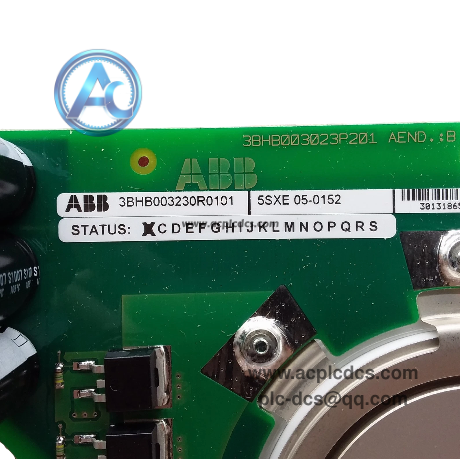

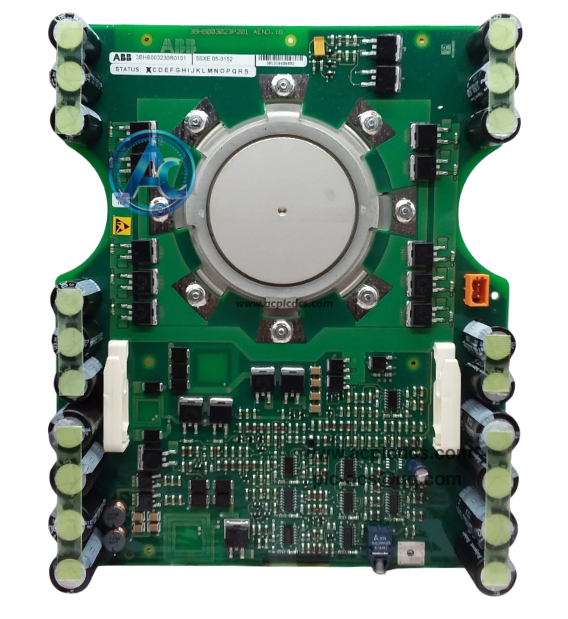

ABB GVC704AE01 5SHX1060H0001 3BHB003230R0101 IGCT Gate Drive Unit in stock

ABB GVC704AE01 5SHX1060H0001 3BHB003230R0101 is an IGCT gate drive unit for ABB medium voltage power converter systems. It acts as the interface between low voltage control board and high-power IGCT semiconductor, delivering accurate gate trigger pulses to control the switching of power devices.

This unit adopts fiber optic signal transmission and built-in multi-protection circuits for high voltage isolation. It is widely used as spare parts replacement for medium voltage converters in metallurgy, mining, power generation and oil & gas industries to guarantee reliable power conversion.

Main Specifications

1. Brand: ABB; Model: GVC704AE01; Code:5SHX1060H0001; Part No:3BHB003230R0101

2. Type: IGCT Gate Drive Unit for Medium Voltage Converter

3. Auxiliary Power: 24VDC; Signal Interface: Optical fiber communication

4. Mounting: Stack installation inside power converter cabinet

5. Operating Temperature: -40℃ ~ +85℃; High voltage galvanic isolation

6. Protection: Short circuit, desaturation, overcurrent and gate monitoring protection

Core Functions

1. Receive optical fiber trigger signals and generate high-current gate pulses to drive IGCT power semiconductor.

2. Provide galvanic isolation between low-voltage control circuit and high-power main power circuit.

3. Real-time monitor IGCT working status, detect desaturation and short-circuit faults rapidly.

4. Block gate drive pulses immediately once fault occurs to protect the power semiconductor device.

5. Feed back device status and fault information back to main controller via optical fiber link.

6. Compact stack-mounted design for convenient maintenance and faulty unit replacement in converter stacks.

Application Scenarios

1. ABB medium voltage converters adopting IGCT power semiconductors.

2. High-power medium voltage drives for mining, metallurgy and cement industry.

3. Power plant frequency conversion and reactive power compensation control systems.

4. Maintenance and faulty gate drive unit replacement of existing MV converter cabinets.

5. Oil & gas heavy-duty medium voltage power conversion spare parts inventory.

6. Large industrial high-power inverter and chopper system renovation projects.

FAQ

1. Q: What is ABB GVC704AE01 5SHX1060H0001 3BHB003230R0101?
   A: It is an IGCT gate drive unit for ABB medium voltage power converters, used to trigger and protect IGCT devices.

2. Q: What communication way does it use?
   A: It uses optical fiber to receive control signals and transmit fault feedback for high voltage isolation.

3. Q: What protection functions does it have?
   A: It supports short-circuit, desaturation, overcurrent protection and real-time gate status monitoring.
