Products Description

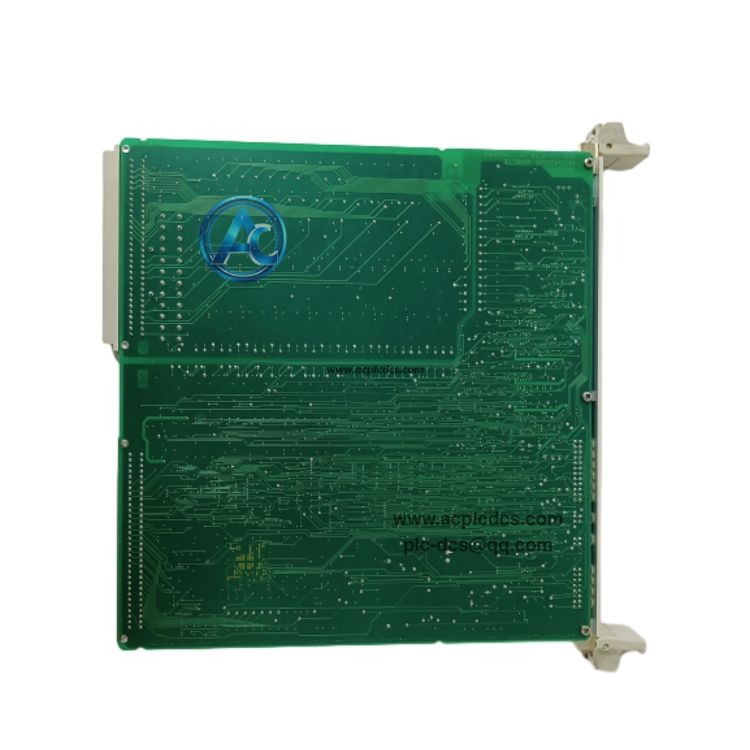

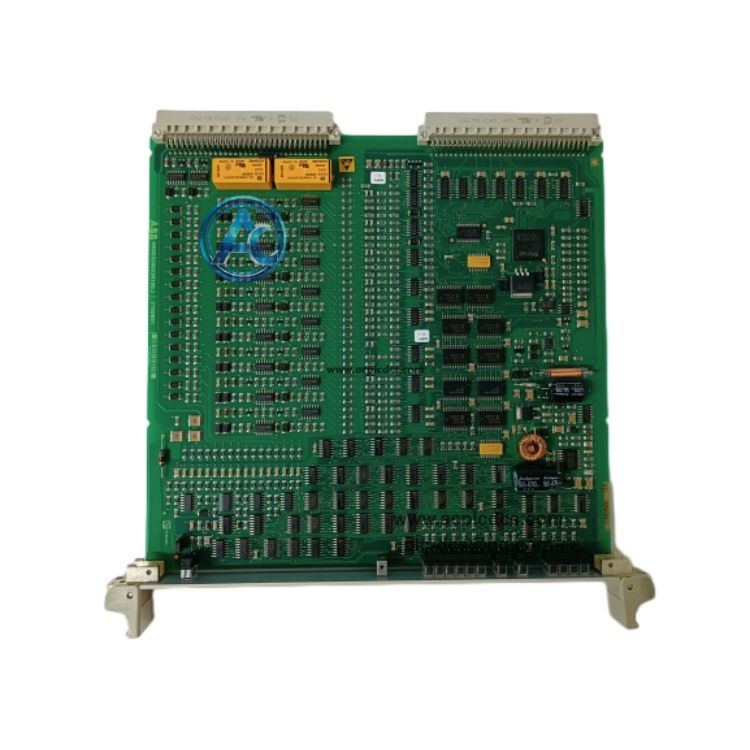

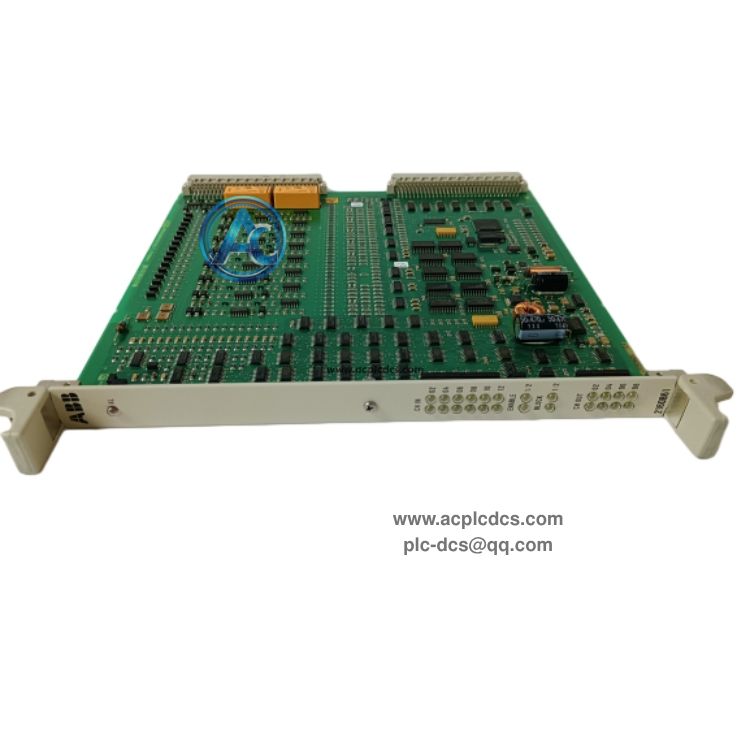

ABB 216DB61 HESG324063R100J Digital Input Module
ABB 216DB61 (HESG324063R100J) is a digital input module for ABB Advant Master DCS system. It acquires discrete on/off status signals from field switches, sensors and relays, then transmits the digital data to the DCS controller for process monitoring and logic control.
This module adopts isolated channel design to suppress field electrical noise and ground loop interference. It supports rack installation and comes with built-in diagnostic function. It is an obsolete spare part, mainly used for maintenance and replacement of old ABB Advant DCS systems.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | ABB |
| 2 | Model | 216DB61, HESG324063R100J |
| 3 | Module Type | Digital Input Module |
| 4 | System Platform | ABB Advant Master DCS |
| 5 | Signal Type | 24VDC Digital Input |
| 6 | Isolation | Channel galvanic isolation |
| 7 | Mounting | DCS rack mount |
| 8 | Operating Temperature | 0℃ ~ +60℃ |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Collect 24VDC discrete digital signals from field limit switches and sensors |
| 2 | Convert field on/off status into digital data and send to DCS controller |
| 3 | Galvanic isolation to reduce interference and protect internal control circuit |
| 4 | Channel fault detection and module self-diagnosis with status indication |
| 5 | Signal surge protection to avoid damage from transient voltage spikes |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Power plant ABB Advant Master DCS control cabinet |
| 2 | Petrochemical and oil & gas plant process monitoring system |
| 3 | Pulp & paper, metallurgy continuous industrial automation control |
| 4 | Field valve status, equipment running status signal acquisition |
| 5 | Legacy ABB Advant DCS spare parts replacement and overhaul |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:What is ABB 216DB61 HESG324063R100J? A:It is ABB Advant Master DCS digital input module. It collects 24VDC discrete signals from field devices and transmits equipment status data to the DCS controller for process control. |
| 2 | Q:What is the main feature of this DI module? A:It has galvanic isolation for each channel, strong anti-interference performance, supports module self-diagnosis to quickly locate channel faults in industrial sites. |
| 3 | Q:Which DCS system does it belong to? A:It belongs to ABB Advant Master DCS system, used in the original Advant rack and matched with corresponding Advant controllers. |
