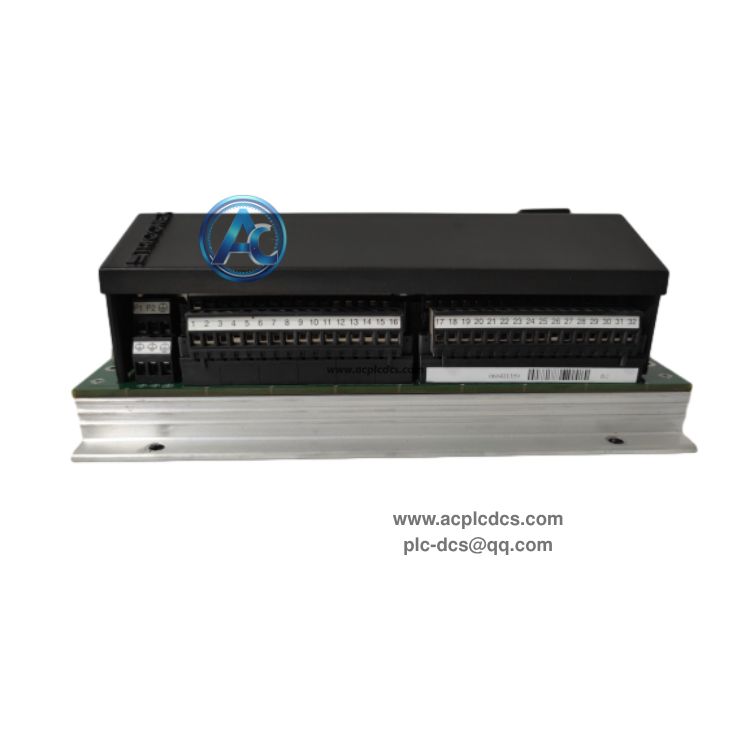

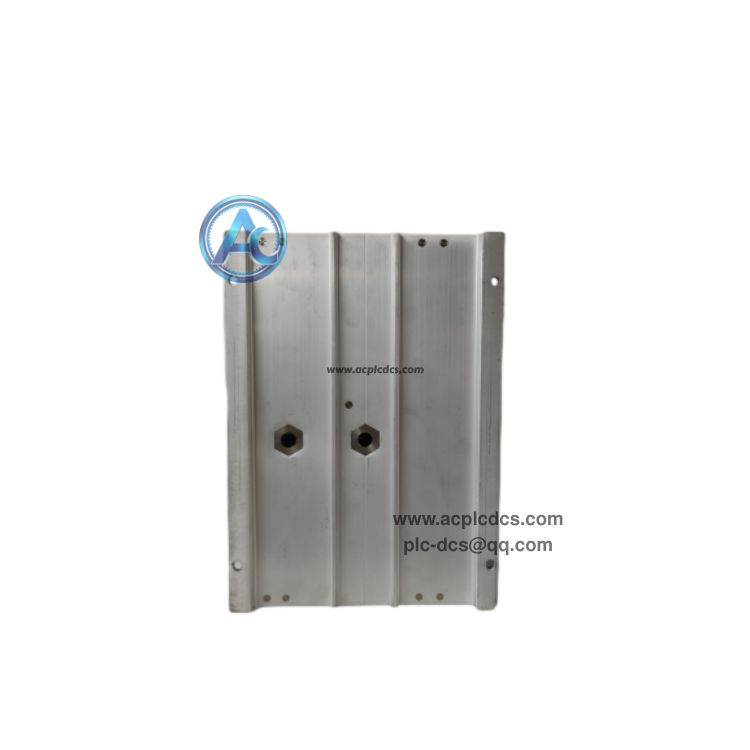

TRICONEX 2351 Analog Input Module

TRICONEX 2351 is an analog input module designed for Tricon triple modular redundant safety instrumented system. It collects 4-20mA analog signals from field transmitters for temperature, pressure, flow and liquid level measurement in safety critical processes.

This module adopts TMR triple voting fault-tolerant design with high signal precision and continuous channel self-diagnosis. It supports HART communication on the current loop and online hot swap, widely used as spare replacement for petrochemical, power and chemical safety control cabinet maintenance and upgrade projects.

Data Parameters

• 1. Brand: TRICONEX.

• 2. Model: 2351.

• 3. Product Type: Analog Input Module.

• 4. System Architecture: Triple Modular Redundant (TMR).

• 5. Safety Level: IEC 61508 SIL3 certified.

• 6. Input Signal: 4~20mA analog current signal, support HART.

• 7. Resolution: 16-bit high precision sampling.

• 8. Power Supply: 24V DC industrial power supply.

• 9. Feature: Support online hot swap replacement.

• 10. Compatible System: Tricon / Trident TMR SIS safety rack system.

Core Functions

• 1. Acquire analog process signals from field pressure, temperature and flow transmitters.

• 2. TMR triple channel voting to guarantee accurate and reliable analog signal sampling.

• 3. Built-in self-diagnosis to detect loop break, short circuit and module hardware faults.

• 4. HART protocol support to read transmitter diagnostic data over 4-20mA loop.

• 5. Support hot swap maintenance without stopping the running safety instrumented system.

Application Scenarios

• 1. Oil & gas industry ESD emergency shutdown system spare parts replacement.

• 2. Chemical plant reactor safety interlock control cabinet maintenance and retrofit.

• 3. Power plant boiler and turbine safety protection system renovation project.

• 4. Petrochemical refining SIS safety instrumented system spare parts inventory.

• 5. Legacy Tricon Trident TMR safety automation system overhaul and module renewal.

FAQ

• 1. Q: What is TRICONEX 2351?
      A: It is SIL3 analog input module for TRICONEX Tricon / Trident TMR safety instrumented SIS system.

• 2. Q: Does TRICONEX 2351 support HART communication?
      A: Yes, it supports HART digital signal superimposed on 4-20mA current loop.

• 3. Q: What safety standard does TRICONEX 2351 comply with?
      A: It meets IEC 61508 standard and obtains SIL3 safety certification for safety-critical industrial applications.
