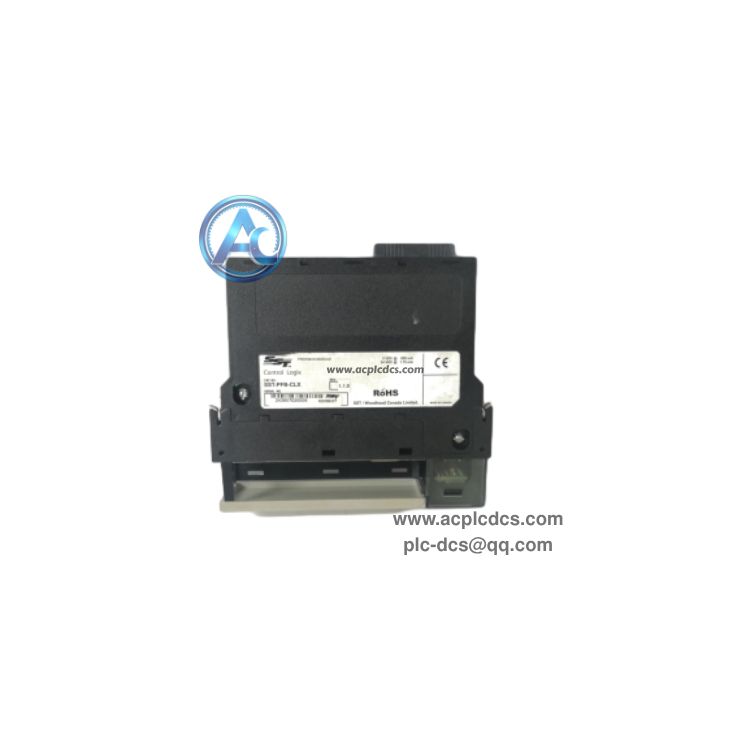

SST-PB3-CLX PROFIBUS DP Communication Module

SST-PB3-CLX is a PROFIBUS DP scanner module developed by Molex SST for Rockwell ControlLogix PLC chassis. It enables ControlLogix controllers to communicate with PROFIBUS DP slave devices in industrial process automation systems.

This module plugs directly into the ControlLogix backplane, with on-board co-processor handling PROFIBUS protocol independently. It supports high-speed cyclic data exchange and comprehensive bus diagnostics. It is widely used as spare replacement part for factory automation control cabinet maintenance and retrofit projects.

Data Parameters

• 1. Brand: SST (Molex Woodhead).

• 2. Model: SST-PB3-CLX.

• 3. Product Type: PROFIBUS DP Scanner Module for ControlLogix.

• 4. Compatible Rack: Rockwell ControlLogix 1756 backplane chassis.

• 5. Protocol: PROFIBUS DP-V0 / DP-V1, Master Scanner mode.

• 6. Bus Baud Rate: 9.6 kbps up to 12 Mbps.

• 7. Connector: 9-pin D-Sub PROFIBUS interface.

• 8. Processor: Onboard 32-bit co-processor for protocol processing.

• 9. Power Supply: Powered by ControlLogix backplane.

• 10. Operating Temperature: 0℃ ~ +60℃.

Core Functions

• 1. Act as PROFIBUS DP master scanner to exchange real-time I/O data between ControlLogix and PROFIBUS slave devices.

• 2. Support cyclic process data exchange and acyclic parameter read / write for field devices.

• 3. On-board co-processor processes PROFIBUS tasks separately and reduces the load of the main PLC CPU.

• 4. Provide complete bus diagnostic information including node status, communication errors and fault alarms.

• 5. Seamless data mapping between PROFIBUS DP data and ControlLogix controller tag memory.

Application Scenarios

• 1. Rockwell ControlLogix PLC rack PROFIBUS DP network expansion and spare replacement project.

• 2. Automobile manufacturing production line connecting PROFIBUS drives, remote I/O and sensors.

• 3. Chemical and energy industry hybrid automation system integrating Rockwell and European PROFIBUS equipment.

• 4. Material handling, packaging machinery factory automation control cabinet upgrade.

• 5. Legacy ControlLogix automation system maintenance, spare parts inventory and fault diagnosis.

FAQ

• 1. Q: What is SST-PB3-CLX?
      A: It is SST PROFIBUS DP master scanner module designed for Rockwell ControlLogix 1756 chassis to connect PROFIBUS DP slave devices.

• 2. Q: What PLC platform does SST-PB3-CLX fit?
      A: It is used for Rockwell ControlLogix 1756 series PLC racks and works with ControlLogix controllers.

• 3. Q: What is the main role of this module?
      A: It bridges ControlLogix PLC and PROFIBUS DP field network, realizing real-time data communication with PROFIBUS slave devices.
