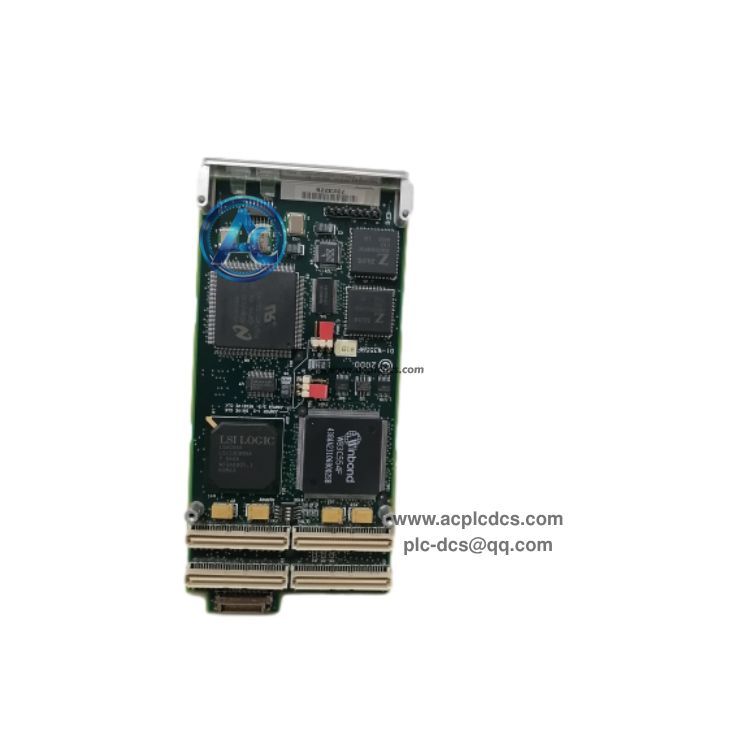

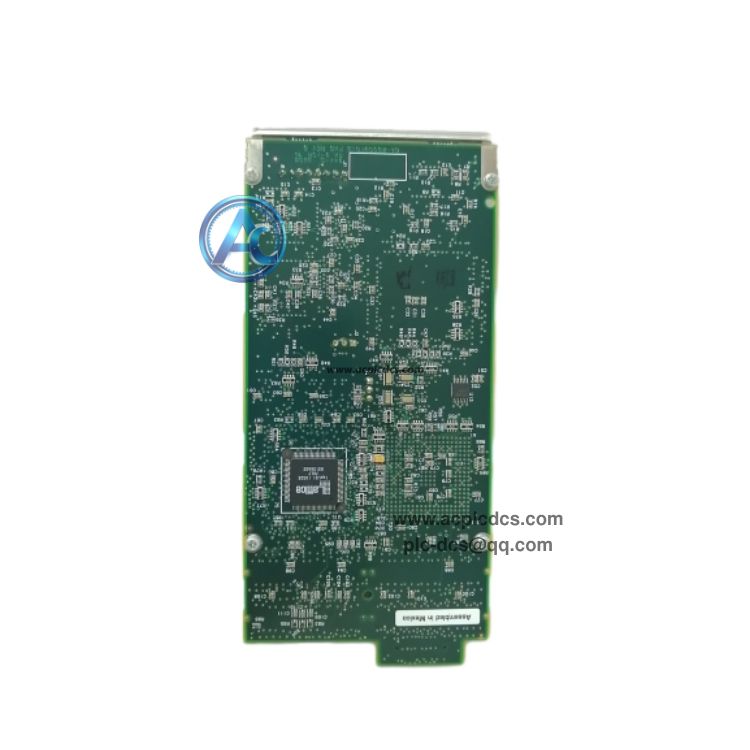

Motorola IPMC761-001 PMC Multi-function I/O Mezzanine Card

Motorola IPMC761-001 is a single-wide PMC multi-function rear I/O mezzanine expansion card for Motorola VME single board computers, compatible with MVME5100, MVME2600 and MVME2700 series SBC. It integrates 8-bit SCSI, parallel port and multi-channel serial ports to expand rich I/O resources for rugged VME embedded control systems.

This mezzanine card requires MVME761 transition module to lead out all external connectors from the VME rack. It adopts PMC standard mechanical specification and rugged industrial components, widely used as spare replacement part for legacy VME embedded control cabinet maintenance and retrofit projects.

Data Parameters

• 1. Brand: Motorola.

• 2. Model: IPMC761-001.

• 3. Product Type: PMC Multi-function I/O Mezzanine Expansion Card.

• 4. Standard: Single-wide PMC PCI Mezzanine Card form factor.

• 5. Compatible SBC: MVME5100, MVME2600, MVME2700 VME single board computer.

• 6. Interfaces: 8-bit SCSI, 1×parallel port, 2×async serial, 2×sync/async serial ports.

• 7. PCI Bus: 33MHz, A32/D32/D64 PCI bus interface.

• 8. Matching Accessory: MVME761 transition module.

• 9. Operating Temperature: 0℃ ~ +70℃.

• 10. Installation: Plug into PMC slot of VME single board computer.

Core Functions

• 1. Expand multi-type I/O interfaces for Motorola VME single board computer via PMC mezzanine bus.

• 2. Provide 8-bit SCSI storage interface, parallel port and multi-channel synchronous/asynchronous serial communication ports.

• 3. Support multiple serial communication protocols including EIA-232, EIA-530, V.35 and X.21 with SIM adapter modules.

• 4. Cooperate with MVME761 transition module to route all I/O signals to front panel external connectors.

• 5. Complete signal buffering and conversion to guarantee stable data transmission in rugged embedded VME rack.

Application Scenarios

• 1. Industrial VME embedded control system for power plant turbine monitoring cabinet spare replacement.

• 2. Railway transportation signal control equipment old VME rack maintenance and component upgrade.

• 3. Rugged embedded computer I/O expansion for aerospace and defense control systems.

• 4. Oil & gas offshore platform VME-based data acquisition and control unit.

• 5. Legacy Motorola MVME series single board computer spare parts inventory and repair project.

FAQ

• 1. Q: What is Motorola IPMC761-001?
      A: It is a PMC multi-function I/O mezzanine card, designed to expand SCSI, parallel and serial interfaces for Motorola MVME VME single board computers.

• 2. Q: What is the difference between IPMC761-001 and IPMC761-002?
      A: IPMC761-001 uses 8-bit SCSI, while IPMC761-002 supports 16-bit fast SCSI for higher storage transmission speed.

• 3. Q: What matching transition module does IPMC761-001 need?
      A: It needs MVME761 transition module to lead all I/O signals out to external connectors on the panel.
