GE IS200AEPAH1BKE & IS215WEPAH2BB Excitation Power Amplifier Board Set

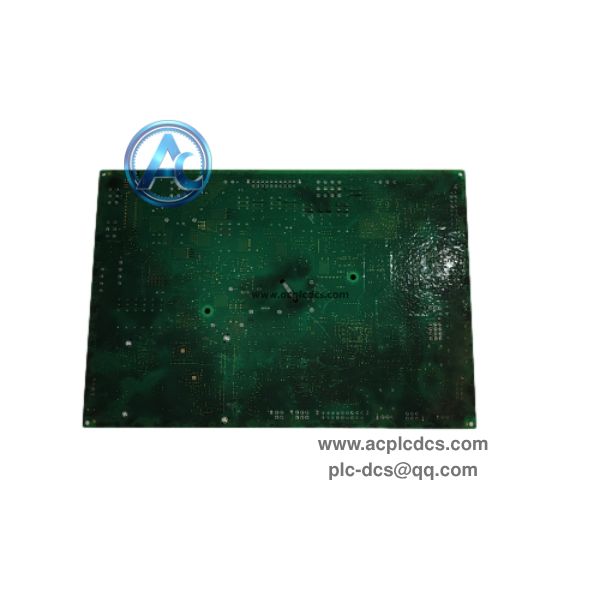

GE IS200AEPAH1BKE and IS215WEPAH2BB are matched excitation power amplifier board assemblies for GE Speedtronic Mark VIe turbine & generator excitation control system. IS200AEPAH1BKE is the AEPA power amplifier PCB, IS215WEPAH2BB serves as the supporting WEPA interface board, working together to drive the generator excitation loop with power amplification and signal conditioning.
This pair of boards features built-in overcurrent, overvoltage and thermal protection, and supports TMR redundant configuration for critical power generation units. They receive low-level excitation command signals from the Mark VIe controller and convert them into high-power drive signals for the exciter, widely used as matched spare parts for gas turbine and generator excitation cabinets.
Data Parameters
1. Brand: GE (General Electric, Speedtronic)
2. Model: IS200AEPAH1BKE, IS215WEPAH2BB
3. Product Type: Matched Excitation Power Amplifier Board Assembly
4. Application: Mark VIe generator excitation, gas & steam turbine control cabinet
5. Feature: Power amplification, excitation drive, multi-protection circuit, TMR compatible
6. Characteristic: Matched pair design, high-power output, conformal coating optional
7. Signal Interface: Low-level control input, high-power excitation output
8. Protection: Overcurrent, overvoltage, short-circuit and overtemperature shutdown
9. Mounting: Plug-in installation inside Mark VIe excitation rack
10. Operating Temperature: -20℃ ~ +70℃
Core Functions
1. Amplify low-voltage excitation control commands from Mark VIe main controller.
2. Output regulated high-power drive signals to generator excitation winding.
3. Real-time monitor output current, voltage and board temperature status.
4. Trigger protection lockout when abnormal excitation conditions are detected.
5. Work in triple modular redundant mode for high-reliability generator voltage regulation.
Application Scenarios
1. Combined cycle power plant gas turbine generator excitation control cabinet.
2. Large steam turbine generator voltage regulation and excitation system rack.
3. GE Mark VIe excitation system overhaul and matched board spare replacement.
4. Independent EX2100e excitation control system power drive unit.
5. Power plant critical generator protection and stable grid connection control loop.
FAQ
1. Q: What are IS200AEPAH1BKE and IS215WEPAH2BB?
A: They are a matched pair of excitation power amplifier boards for GE Mark VIe / EX2100e generator excitation systems.2. Q: Can they be used separately without each other?
A: Normally they are designed as a matched set; separate use is not supported for standard excitation loops.3. Q: Is it compatible with old Mark VI non-VIe racks?
A: No, this set belongs to Mark VIe platform and cannot directly replace Mark VI excitation boards.
