EPRO PR6425010-100+CON011 Eddy Current Probe Kit

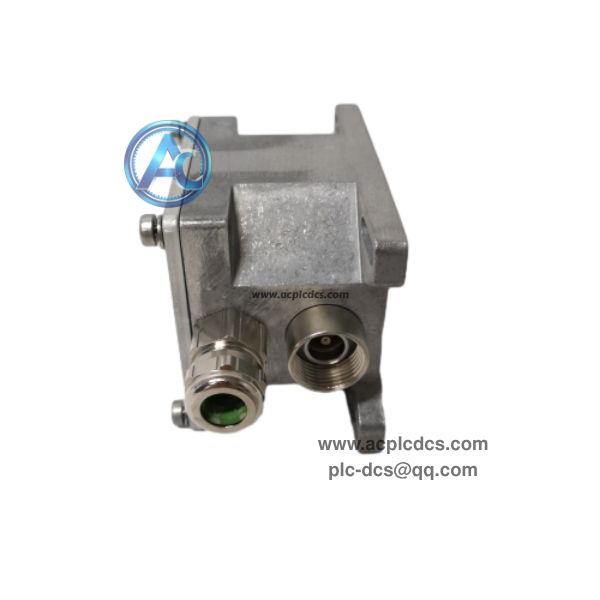

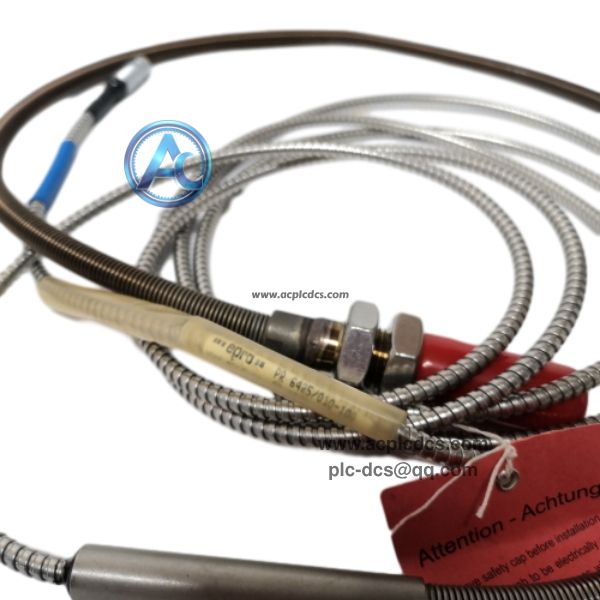

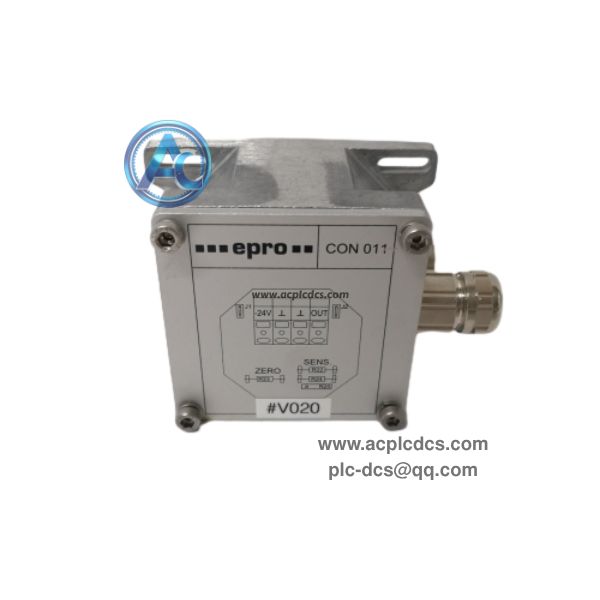

EPRO PR6425010-100+CON011 is a complete non-contact eddy current sensor assembly, including PR6425/010-100 probe and CON011 preamplifier. It is designed for MMS6000 machinery protection system, used to measure shaft vibration, axial displacement and keyphase signal of rotating machinery.
This 8mm probe adopts eddy current principle, with stable linear measurement range and wide frequency response. It is widely used for online condition monitoring of turbines, generators and compressors in power and petrochemical industries.
Data Parameters
1. Brand: EPRO (Emerson)
2. Model: PR6425010-100 + CON011
3. Product Type: 8mm Eddy Current Proximity Sensor Kit
4. Application: MMS6000 / MMS3000 Rotating Machinery Monitoring System
5. Feature: Non-contact measurement, 0~5000Hz frequency response
6. Characteristic: Linear range 2mm, sensitivity -7.87V/mm
7. Power Supply: -24VDC ±10%
8. Probe Thread: M10×1, integrated 1m cable
9. Target Material: AISI 4140 carbon steel
10. Operating Temperature: -35℃ ~ +120℃
Core Functions
1. Real-time non-contact detection of shaft radial vibration and axial displacement.
2. Capture keyphase pulse signal for rotating speed and phase reference.
3. Convert air gap variation into standard analog voltage output signal.
4. Transmit measured signal to MMS monitor module for protection and alarm.
5. Provide reliable raw data for equipment fault diagnosis and predictive maintenance.
Application Scenarios
1. Thermal power plant steam turbine and generator shaft monitoring.
2. Petrochemical centrifugal compressor and large blower protection rack.
3. Metallurgy heavy-duty fan and rotating equipment condition monitoring.
4. EPRO MMS series system retrofit, calibration and spare replacement.
5. Turbine vibration & displacement sensor spare parts inventory backup.
FAQ
1. Q: What is EPRO PR6425010-100+CON011?
A: It is a complete 8mm eddy current probe and preamplifier set for MMS6000 system.2. Q: What signal does it output?
A: Negative analog voltage signal proportional to the probe-to-shaft gap.3. Q: Can it match other brand monitoring systems?
A: It is optimized for EPRO MMS series monitors, not universal for other platforms.
