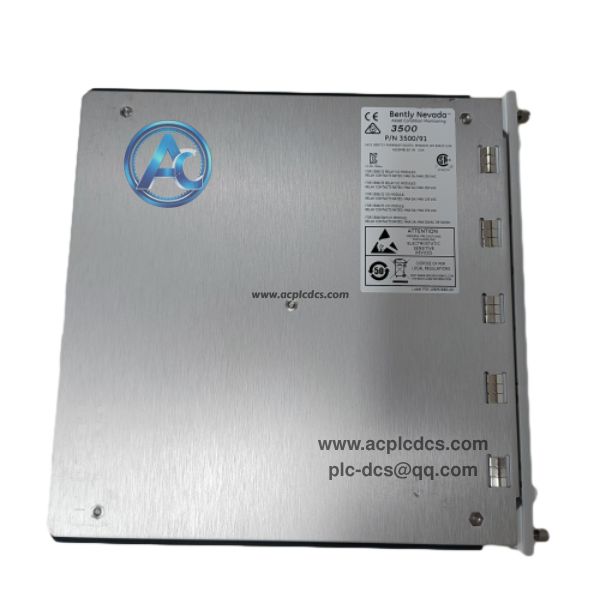

Bently Nevada 3500/91 Gateway Communication Module

Bently Nevada 3500/91 is a gateway communication module designed for the Bently 3500 machinery protection rack. It serves as the external data interface, responsible for transmitting machine vibration, speed and alarm data from the 3500 rack to plant SCADA and host monitoring systems.

This module supports multiple industrial communication protocols and provides isolated signal transmission. It adopts hot-swap plug-in design, widely used for rotating machinery monitoring cabinet maintenance, spare parts replacement and plant monitoring network renovation projects.

Data Parameters

• 1. Brand: Bently Nevada (Baker Hughes).

• 2. Model: 3500/91.

• 3. Product Type: Rack Gateway Communication Module.

• 4. Product Series: 3500 machinery protection monitoring system.

• 5. Supported Protocols: Modbus TCP, Modbus RTU and plant host communication protocol.

• 6. Mounting: Full-height slot installation inside 3500 rack.

• 7. Feature: Hot swappable without interrupting rack monitoring function.

• 8. Isolation: Electrical isolation between rack backplane and external communication port.

• 9. Compliance: API 670 standard for critical rotating machinery protection.

• 10. Operating Temperature: 0℃ ~ +60℃.

Core Functions

• 1. Collect vibration, speed, displacement and alarm data from all monitor modules within the 3500 rack.

• 2. Convert internal rack bus data into standard industrial protocol data for upper system access.

• 3. Upload real-time machine health data and fault event records to SCADA or DCS monitoring system.

• 4. Receive configuration commands from host system and forward them to each monitoring module in the rack.

• 5. Provide electrical isolation to protect the internal rack circuit from external network surge interference.

Application Scenarios

• 1. Thermal power plant steam turbine 3500 rack 3500/91 gateway module replacement and maintenance.

• 2. Petrochemical plant centrifugal compressor condition monitoring system network retrofit project.

• 3. Gas turbine and large rotating equipment online monitoring cabinet spare parts renewal.

• 4. Oil & gas refinery critical machinery protection communication spare parts inventory backup.

• 5. Legacy Bently 3500 monitoring system overhaul and aging gateway communication module replacement project.

FAQ

• 1. Q: What is Bently Nevada 3500/91?
      A: It is gateway communication module for Bently 3500 rack, used for data exchange between monitoring rack and plant host system.

• 2. Q: What main protocols does 3500/91 support?
      A: It supports Modbus TCP, Modbus RTU and dedicated host communication protocol for machinery data transmission.

• 3. Q: Can the 3500/91 be hot swapped?
      A: Yes, it supports hot swap, replacement will not stop the machinery protection and monitoring function.
