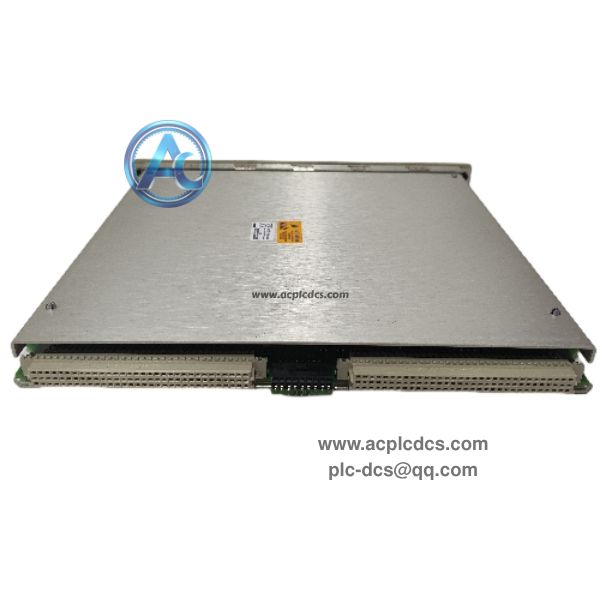

Bently Nevada 3500/42M 176449-02 Vibration / Position Monitor Module

Bently Nevada 3500/42M 176449-02 is a 4-channel vibration and position monitor module for the 3500 machinery protection system. It accepts signals from proximity probes and velocity transducers to measure shaft vibration, rotor position and differential expansion, providing alarm and trip protection for rotating equipment.

This module supports configurable measurement parameters and built-in sensor fault detection. It adopts hot-swap design, and can generate protection trip signals when the measured value exceeds threshold, widely used for vibration monitoring cabinet maintenance, spare parts replacement and rotating machinery protection system retrofit projects.

Data Parameters

• 1. Brand: Bently Nevada (Baker Hughes).

• 2. Model: 3500/42M, Part Number:176449-02.

• 3. Product Type: 4-Channel Vibration & Position Monitor Module.

• 4. Product Series: 3500 Machinery Protection System.

• 5. Channel Count: 4 independent measurement channels.

• 6. Supported Sensors: Proximity probes, velocity transducers.

• 7. Measured Variables: Shaft vibration, rotor position, differential expansion.

• 8. Feature: Hot swappable without system shutdown.

• 9. Diagnosis: Sensor cable break, short circuit and hardware fault detection.

• 10. Operating Temperature: 0℃ ~ +60℃.

Core Functions

• 1. Collect signals from proximity probes and velocity sensors to monitor vibration and shaft position of rotating machinery.

• 2. Set alarm and trip thresholds, output protection logic signals when measurement exceeds preset limits.

• 3. Detect sensor wiring faults such as open circuit and short circuit to ensure measurement reliability.

• 4. Transmit real-time machinery health data to rack communication modules for upper DCS or workstation display.

• 5. Support hot-swap replacement for on-site maintenance without stopping the whole monitoring rack.

Application Scenarios

• 1. Thermal power plant steam turbine vibration and shaft position monitoring cabinet spare replacement and maintenance.

• 2. Oil & gas field large centrifugal compressor machinery protection system upgrade project.

• 3. Petrochemical plant critical rotating equipment online condition monitoring spare parts renewal.

• 4. Steel, paper and mining factories high-value rotating machine safety protection backup inventory.

• 5. Legacy Bently Nevada 3500 monitoring system aging vibration monitor module replacement project.

FAQ

• 1. Q: What is Bently Nevada 3500/42M 176449-02?
      A: It is a 4-channel vibration and position monitor module for Bently Nevada 3500 machinery protection system.

• 2. Q: What parameters can this module monitor?
      A: It monitors shaft vibration, rotor position and differential expansion using proximity and velocity sensors.

• 3. Q: Can 3500/42M be hot swapped?
      A: Yes, it supports hot swap, module replacement will not shut down the whole machinery monitoring rack.
