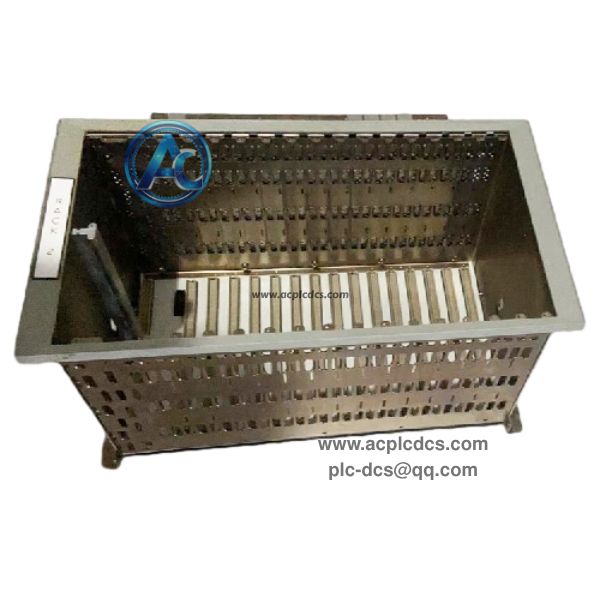

Bently Nevada 3500-05-01-03-00-00-00 3500 Rack Assembly
Bently Nevada 3500-05-01-03-00-00-00 is the rack chassis for 3500 machinery monitoring system. It serves as the mechanical and electrical backplane carrier for all 3500 series monitoring modules, providing power distribution and high-speed internal bus communication for vibration, position and speed monitoring equipment.
This rack supports hot swap of individual monitoring modules without system shutdown. It is designed for rotating machinery protection in heavy industrial environments, widely used for vibration monitoring cabinet maintenance, spare parts replacement and machine protection system retrofit projects.
Data Parameters
1. Brand: Bently Nevada (Baker Hughes).
2. Model: 3500-05-01-03-00-00-00.
3. Product Type: 3500 Series Monitor Rack Chassis.
4. Product Series: 3500 Machinery Protection System.
5. Slots: 13-slot rack with integrated backplane bus.
6. Backplane: High-speed parallel internal communication bus.
7. Module Support: Compatible with all standard 3500 monitoring & communication modules.
8. Mounting: Standard cabinet rack mounting.
9. Power Supply: Matched with 3500 series power supply modules.
10. Operating Temperature: 0℃ ~ +60℃.
Core Functions
1. Provide mechanical housing and backplane bus for installing 3500 series monitoring and power modules.
2. Distribute power and transmit high-speed internal data signals between all plugged-in modules.
3. Support hot swapping of monitoring modules while the whole machine monitoring system remains running.
4. Offer electromagnetic shielding to reduce interference for vibration and rotor position measurement signals.
5. Centralize machinery health data and transmit to display or host DCS/PLC systems via communication modules.
Application Scenarios
1. Thermal power plant turbine vibration monitoring cabinet overhaul and rack spare replacement.
2. Oil & gas compressor and pump rotating machinery protection system upgrade project.
3. Petrochemical plant large rotating equipment online condition monitoring spare parts renewal.
4. Steel, paper and mining factory critical machinery protection system backup inventory.
5. Legacy Bently Nevada 3500 machinery monitoring system aging rack replacement project.
FAQ
1. Q: What is Bently Nevada 3500-05-01-03-00-00-00?
A: It is the 13-slot rack chassis for Bently Nevada 3500 machinery protection monitoring system.2. Q: What is the main purpose of this rack?
A: It holds power supply, monitoring and communication modules and provides internal bus for machinery vibration monitoring.3. Q: Can modules be replaced without system shutdown?
A: Yes, the rack supports hot-swap function for individual monitoring modules during system operation.
