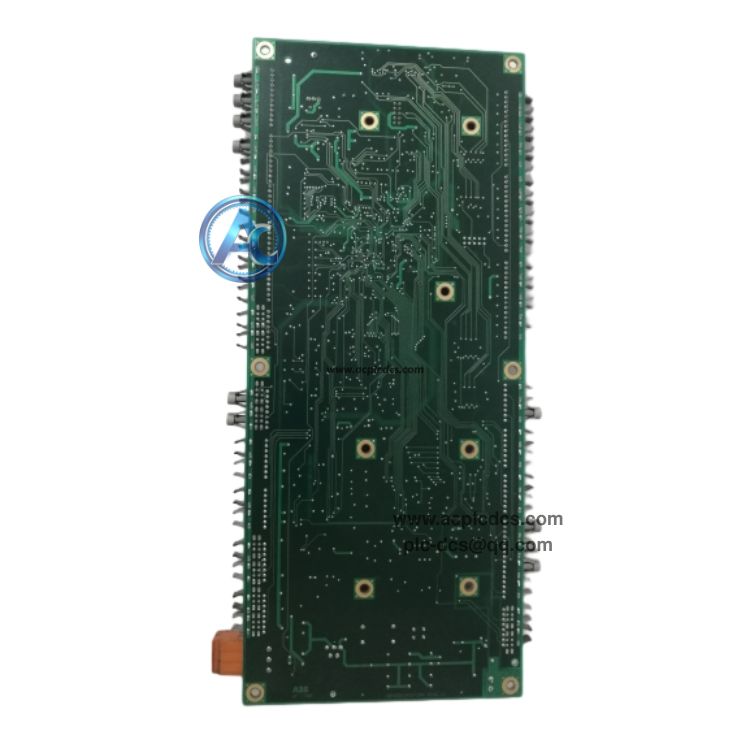

ABB UFC760BE43 3BHE004573R0043 PUB Process Unit Board

ABB UFC760BE43 3BHE004573R0043 is a PUB process unit board designed for ABB medium voltage variable frequency drives. It executes core drive control algorithms and handles closed-loop regulation of current and speed for high-power motor drive systems.

This board integrates fiber communication interfaces for data exchange with power units, and supports Profibus DP industrial fieldbus. It adopts galvanic isolation design for strong anti-interference, widely used as spare replacement for medium voltage drive cabinet maintenance and retrofit projects.

Data Parameters

• 1. Brand: ABB.

• 2. Model: UFC760BE43, Part No:3BHE004573R0043.

• 3. Product Type: PUB Process Unit Board.

• 4. Applicable Equipment: ABB ACS1000 / ACS6000 medium voltage inverters.

• 5. Power Supply: 24V DC, wide input voltage range.

• 6. Communication Interfaces: POF optical fiber port, Profibus DP.

• 7. Profibus Baud Rate: 9.6 kbps to 12 Mbps, configurable via DIP switch.

• 8. Isolation Voltage: High voltage galvanic isolation for signal channels.

• 9. Function Feature: Built-in drive fault detection and status monitoring.

• 10. Application Field: Medium voltage high power motor speed regulation system.

Core Functions

• 1. Run core control algorithm for medium voltage inverter and complete motor current and speed closed-loop control.

• 2. Realize high-speed data communication between main control and power units through optical fiber links.

• 3. Support Profibus DP bus to realize data interaction with upper control system and HMI panel.

• 4. Continuously monitor operating status of the drive and record fault codes for equipment troubleshooting.

• 5. Provide reliable signal isolation to suppress electromagnetic interference in high-voltage industrial environments.

Application Scenarios

• 1. Power plant medium voltage fan and water pump variable frequency speed control system spare parts replacement.

• 2. Oil & gas industry high-power motor drive cabinet maintenance and upgrade project.

• 3. Metallurgical industry medium voltage inverter control board replacement and retrofit.

• 4. Cement and mining heavy-duty medium voltage variable frequency drive spare parts inventory.

• 5. Legacy ABB ACS1000 / ACS6000 drive system overhaul and spare renewal.

FAQ

• 1. Q: What is ABB UFC760BE43 3BHE004573R0043?
      A: It is PUB process unit main control board specially used for ABB ACS1000 and ACS6000 medium voltage frequency converters.

• 2. Q: What communication methods does UFC760BE43 support?
      A: It uses POF fiber to communicate with power units and supports Profibus DP to connect upper automation systems.

• 3. Q: What is the main application of this board?
      A: It is widely used for high-power medium voltage motor speed regulation in power, mining, metallurgy and oil & gas industries.
