ABB PP886 3BSE092980R1 Panel 800 HMI Touch Panel

2026-10-23

ABB PP886 3BSE092980R1 Panel 800 HMI Touch Panel

ABB PP886 3BSE092980R1 is a 15.4-inch widescreen touch HMI from the Panel 800 series, designed for ABB Ability System 800xA and Compact Product Suite. It adopts ARM9 1GHz processor and high brightness TFT LED screen, used for real-time process monitoring, parameter setting and alarm management.


PP886 3BSE092980R1 (4).jpeg

This operator panel features IP66 front protection, 2GB onboard SSD storage and multi-protocol Ethernet communication. It is programmed by Panel Builder 800 software, widely used in petrochemical, power, pulp & paper DCS control cabinets for spare replacement.

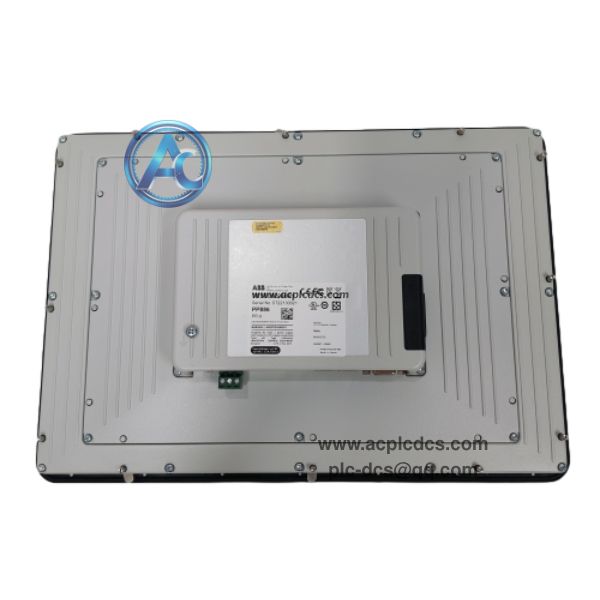

PP886 3BSE092980R1 (2).jpeg

Data Parameters

  • 1. Brand: ABB.

  • 2. Model: PP886, Part No: 3BSE092980R1.

  • 3. Product Type: Panel 800 Operator Touch HMI Panel.

  • 4. Application: ABB System 800xA, Compact Product Suite DCS.

  • 5. Feature: 15.4" 1280×800 widescreen touch display, 450 cd/m².

  • 6. Characteristic: IP66 front panel, aluminum die-cast housing.

  • 7. Hardware: ARM9 1GHz CPU, 1GB RAM, 2GB SSD, Ethernet port.

  • 8. Package: Complete HMI panel with mounting gaskets.

  • 9. Mounting: Cabinet cutout flush mounting.

  • 10. Operating Temperature: -10℃ ~ +60℃.

Core Functions

  • 1. Real-time display of process values, trend curves and equipment running status.

  • 2. Provide operator interface for setpoint adjustment, valve and motor operation control.

  • 3. Collect, display and record system alarms and event logs.

  • 4. Communicate with AC800M controllers via Ethernet and standard industrial protocols.

  • 5. Support multi-language operation interface and recipe management functions.

Application Scenarios

  • 1. Power plant thermal control and combined cycle DCS operation cabinet.

  • 2. Petrochemical, refining and natural gas process control system.

  • 3. Pulp and paper, water treatment and mining automation control room.

  • 4. ABB System 800xA upgrade, maintenance and HMI spare replacement project.

  • 5. Panel 800 series widescreen operator panel spare inventory backup.

FAQ

  • 1. Q: What is ABB PP886 3BSE092980R1?
        A: It is a 15.4-inch widescreen touch HMI panel belonging to ABB Panel 800 series.

  • 2. Q: Which software is used for configuration?
        A: It is configured and downloaded by Panel Builder 800 V6.2 software.

  • 3. Q: Is the front panel dustproof and waterproof?
        A: Yes, the front face meets IP66 protection grade for cabinet installation.
