Products Description

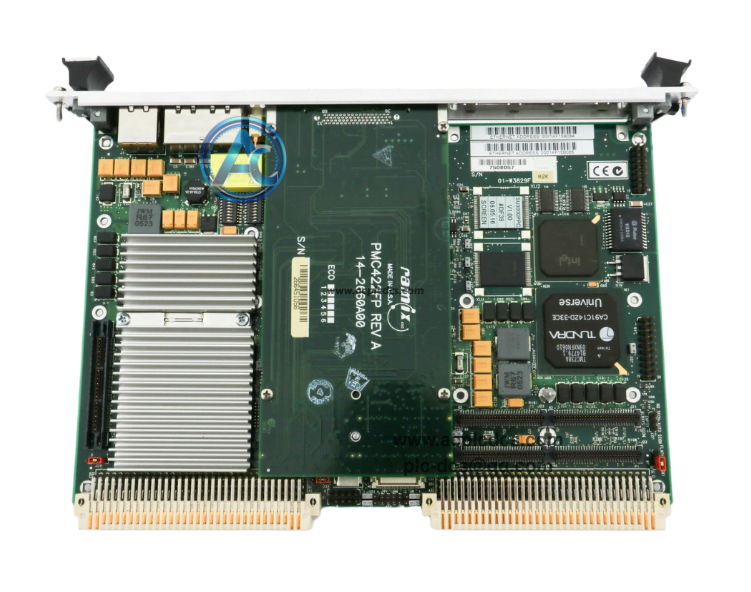

MOTOROLA PMC422FP 8-Port RS422/485 PMC Serial Controller Card
MOTOROLA PMC422FP is a PMC standard 8-port multi-serial communication controller card, compatible with VME and CompactPCI single board computers. It supports RS232, RS422 and RS485 serial standards, equipped with 64-byte FIFO buffer per channel to reduce host CPU interrupt load.
This serial card adopts front panel 68-pin SCSI connector for 8 serial ports output, and also supports rear J4 backplane routing. It is industrial-grade long-life legacy spare, widely used in aerospace, power and heavy industrial embedded control system maintenance and replacement.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | MOTOROLA |
| 2 | Model | PMC422FP |
| 3 | Module Type | PMC Serial Controller Card |
| 4 | Bus Standard | PMC / 32-bit PCI |
| 5 | Serial Channels | 8 ports |
| 6 | Serial Protocol | RS232 / RS422 / RS485 |
| 7 | Per Channel Buffer | 64 Byte FIFO |
| 8 | Front Connector | 68-pin SCSI connector |
| 9 | Operating Temperature | 0℃ ~ +60℃ |
| 10 | Status | Discontinued legacy PMC communication spare card |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Provide 8 independent serial communication channels for embedded PMC/VME single board computers. |
| 2 | DIP switch configurable to select RS232, RS422 or RS485 signal mode per channel pair. |
| 3 | 64-byte FIFO buffer reduces host interrupt frequency and prevents serial data overflow loss. |
| 4 | Dual routing options: front 68pin SCSI or rear J4 backplane interface for field wiring selection. |
| 5 | Compatible with 16C550 UART register, easy to integrate into existing embedded software. |
Application Scenarios
| No. | Application |
|---|---|
| 1 | VME / CompactPCI embedded industrial control system multi-serial data acquisition |
| 2 | Power plant turbine control cabinet serial communication expansion for old VME SBC |
| 3 | Aerospace and defense rugged embedded control serial interface expansion |
| 4 | Legacy VME embedded system spare replacement and on-site maintenance service |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q: What is MOTOROLA PMC422FP? A: It is 8-port PMC serial controller card, used to expand multi-channel RS232/422/485 serial ports for VME/CPCI single board computer. |
| 2 | Q: What is the difference between PMC422 and PMC422FP? A: PMC422FP routes all 8 serial ports to front panel 68pin SCSI connector; standard PMC422 only has 4 front RJ45 ports. |
| 3 | Q: What host board can this card be installed on? A: It can work with any single board computer equipped with PMC slot, including VMEbus and CompactPCI SBC. |
