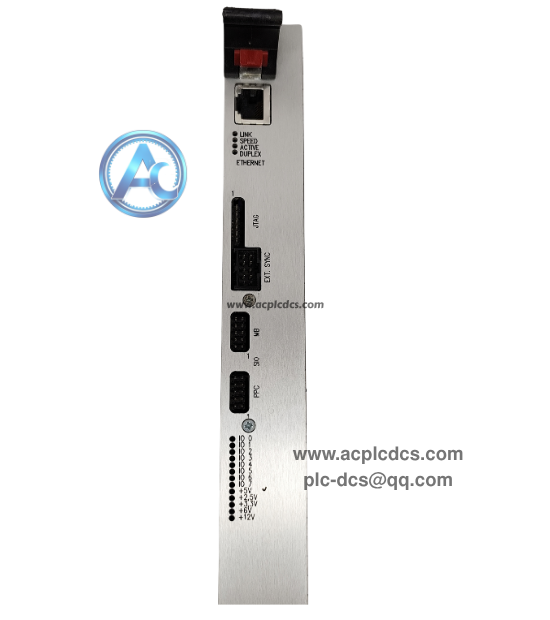

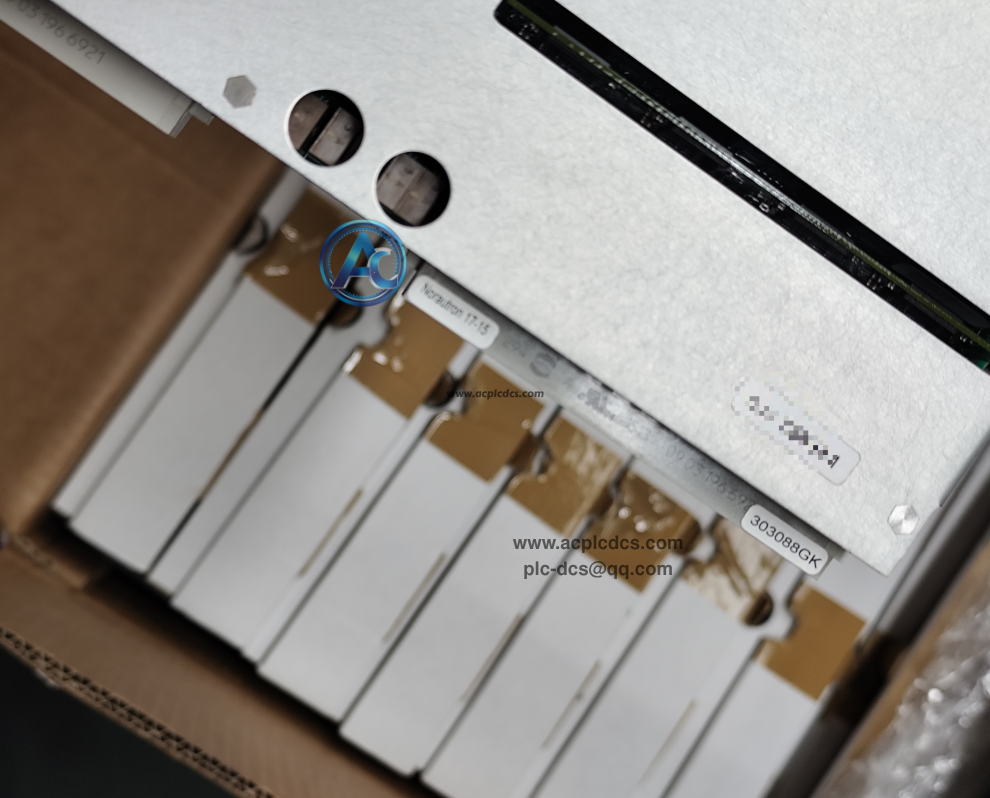

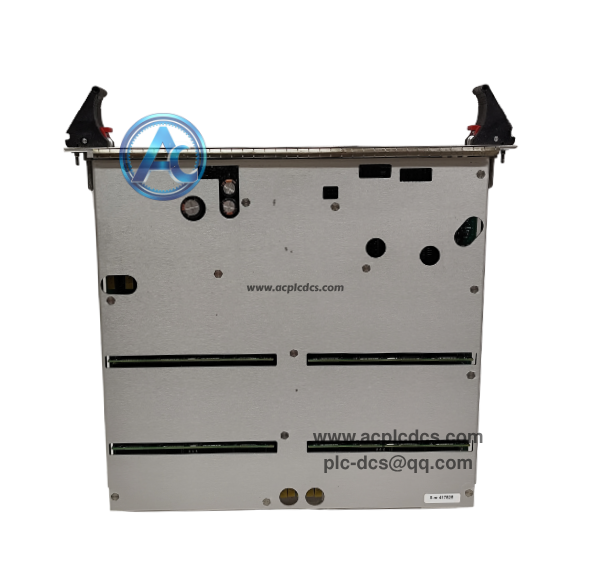

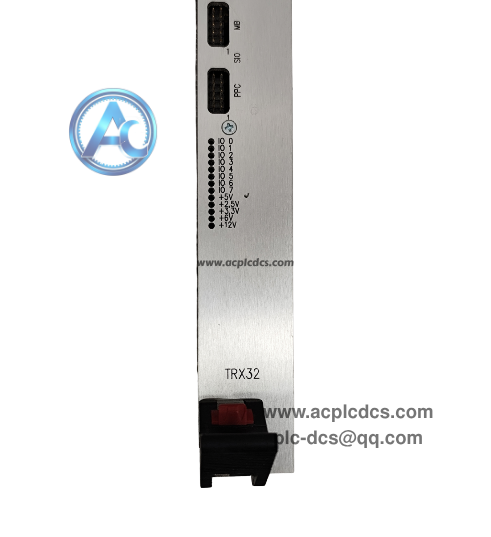

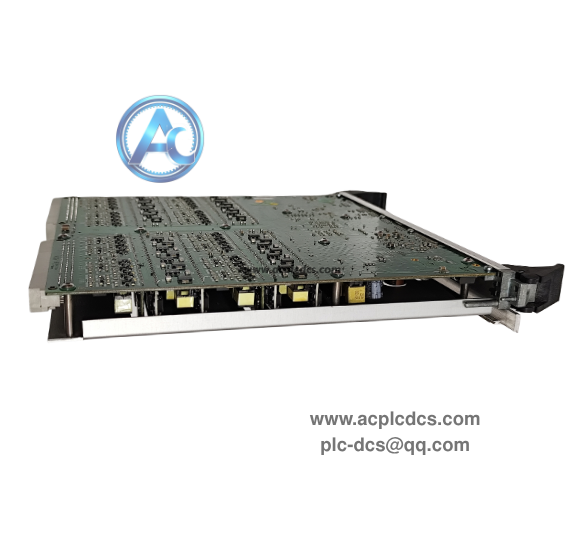

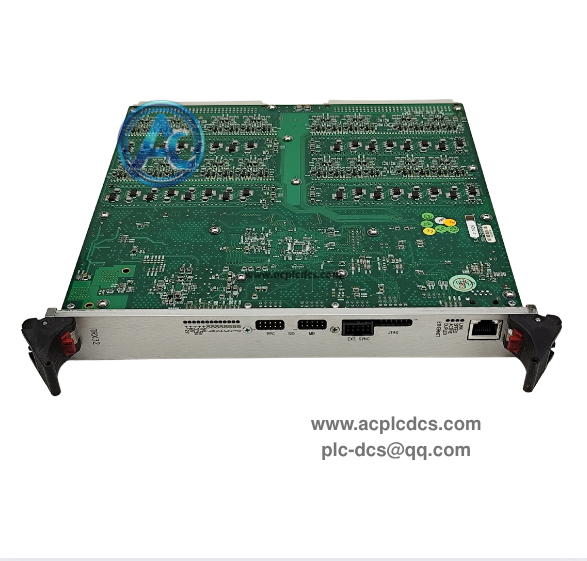

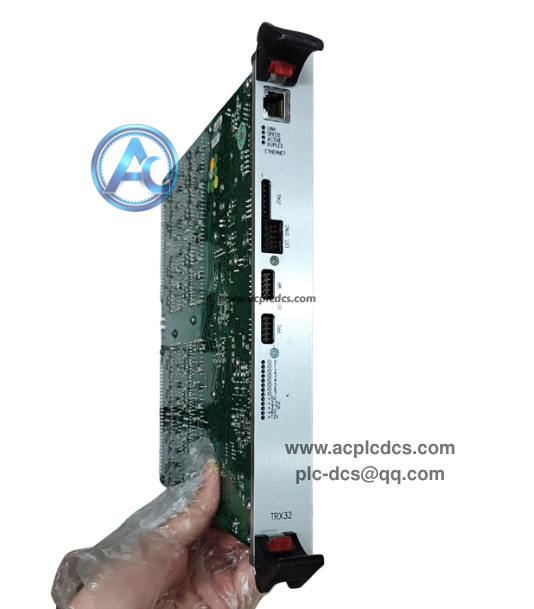

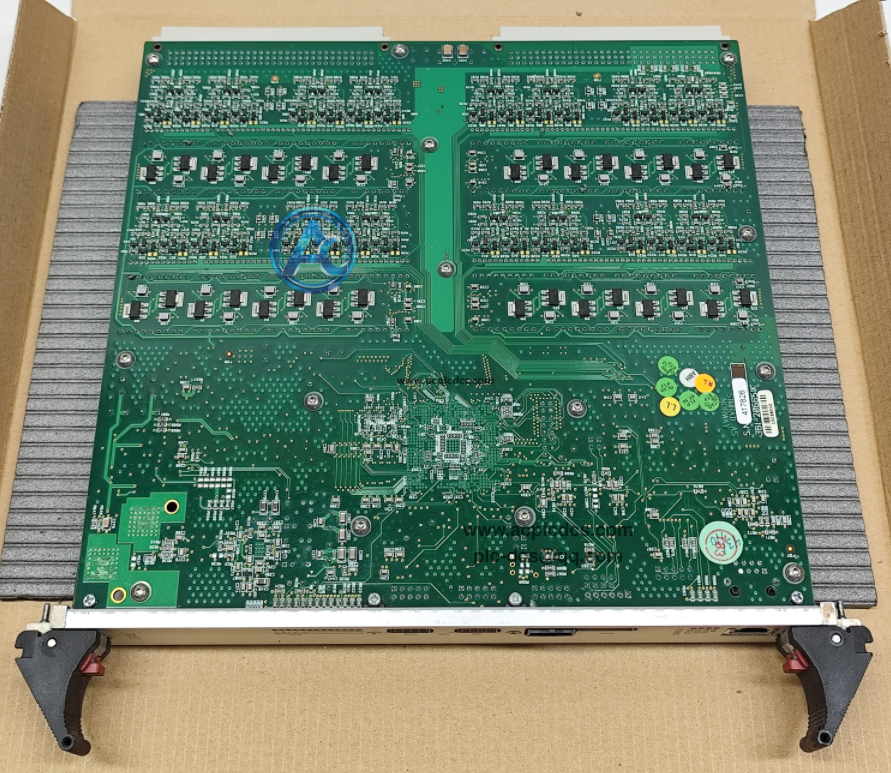

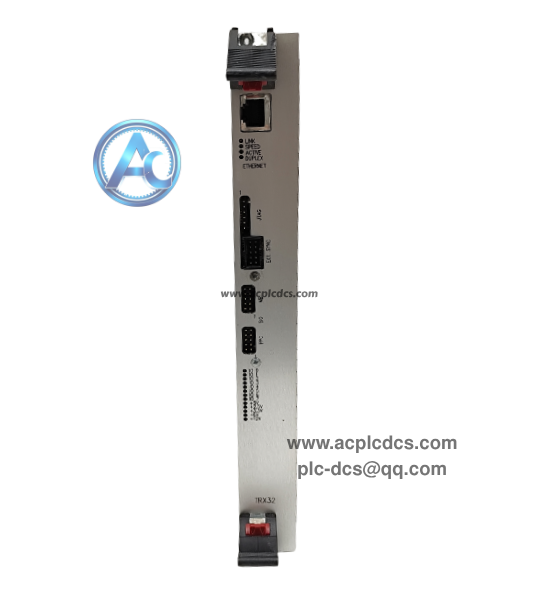

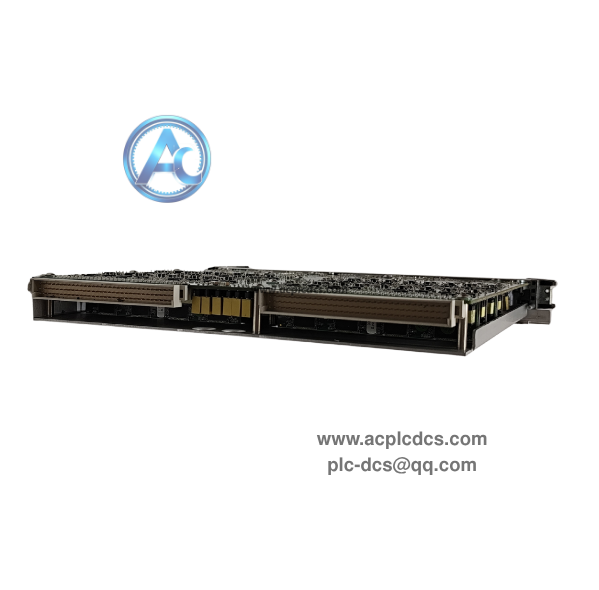

Kongsberg TRX32 303088G Acoustic Transceiver Board in stock
Kongsberg TRX32 303088G is a multi-frequency underwater acoustic transceiver PCB board for Kongsberg HiPAP high-precision acoustic positioning system. It generates multi-frequency transmit signals to drive subsea transducers, receives and digitizes echo signals from seabed transponders and beacons for underwater positioning calculation.
This board adopts marine-grade conformal coated PCB, supports multiple configurable acoustic frequencies. It is a field-replaceable spare part, installed inside the X81 transceiver unit, widely used for ROV, AUV and offshore subsea structure positioning in offshore oil & gas and marine survey projects.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | Kongsberg Maritime (Norway) |
| 2 | Model | TRX32, Part No:303088G |
| 3 | Module Type | Multi-frequency Acoustic Transceiver PCB Board |
| 4 | Compatible System | HiPAP 101/351/451/501 Acoustic Positioning System |
| 5 | Design Feature | Conformal coated PCB for marine harsh environment |
| 6 | Mounting | Installed in X81 transceiver unit chassis |
| 7 | Operating Temperature | -25℃ ~ +70℃ |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Generate multi-frequency acoustic transmitting pulse signals for subsea transducers |
| 2 | Capture, filter and digitize echo signals returned from subsea transponders |
| 3 | Transmit processed acoustic data to topside HiPAP control unit for positioning computation |
| 4 | Support multiple working frequencies to avoid interference in complex subsea environments |
| 5 | Onboard hardware self-diagnosis for transceiver circuit fault detection |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Offshore oil & gas ROV and subsea robot high-precision acoustic positioning |
| 2 | Marine survey, hydrographic mapping and underwater geophysical exploration |
| 3 | Offshore platform subsea structure monitoring and dynamic positioning auxiliary system |
| 4 | AUV underwater autonomous vehicle tracking and positioning |
| 5 | HiPAP acoustic positioning system spare parts replacement and maintenance |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:What is Kongsberg TRX32 303088G? A:It is the core multi-frequency acoustic transceiver board for Kongsberg HiPAP underwater acoustic positioning system. |
| 2 | Q:What is its main job? A:It sends acoustic pulses and receives echo signals to realize subsea target distance and azimuth measurement. |
| 3 | Q:What environment is it designed for? A:Marine offshore harsh environment, conformal coated PCB against humidity and salt fog. |
