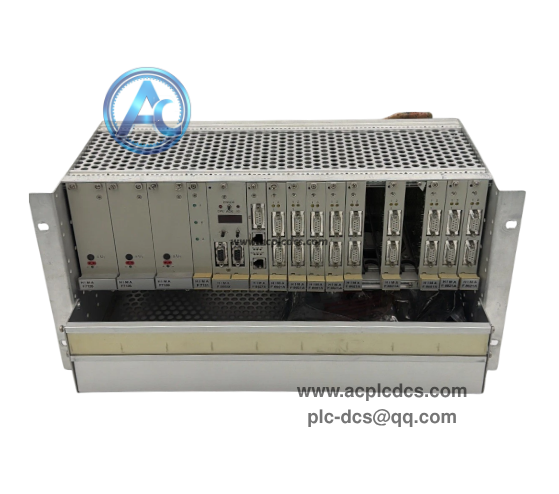

HIMA F7126 HIMatrix Safety Controller Module

HIMA F7126 is a safety controller module for HIMA HIMatrix safety instrumented system (SIS). It adopts certified 1oo2D dual redundant architecture, complies with IEC61508 SIL3 safety standard, specially designed for safety-critical industrial control applications.

This safety module integrates powerful logic processing and comprehensive self-diagnosis functions. It is widely used as spare parts for emergency shutdown, fire & gas protection and safety interlock systems in oil & gas, chemical and power plants.

Main Specifications

1. Brand: HIMA; Model: F7126; Series: HIMatrix Safety Instrumented System

2. Safety Level: SIL3 certified per IEC61508; Architecture: 1oo2D dual redundant

3. Power Supply: 24VDC; Mounting: Standard HIMatrix rack installation

4. Communication: Safe fieldbus communication, compatible with HIMatrix I/O modules

5. Operating Temp: -20℃ ~ +60℃; Industrial EMC protection

6. Application: Safety interlock, ESD and fire & gas safety control systems

Core Functions

1. Execute safety logic programs and handle safety interlock, emergency shutdown commands for SIS system.

2. Dual channel 1oo2D redundant design, ensures fail-safe state once single channel fault occurs.

3. Continuous full hardware self-diagnosis to monitor CPU, memory, communication and circuit health status.

4. Safe data communication with matched HIMatrix I/O modules to collect field safety signals.

5. Support safety event logging and fault recording for troubleshooting and audit review.

6. Modular rack structure for convenient replacement and maintenance of safety control cabinets.

Application Scenarios

1. SIS safety instrumented systems for chemical, oil & gas and offshore platform projects.

2. Emergency shutdown (ESD) and fire & gas protection safety control systems.

3. Power plant boiler and turbine safety interlock protection control.

4. Maintenance and faulty module replacement for existing HIMatrix safety control cabinets.

5. Spare parts inventory for safety automation maintenance and overhaul teams.

6. High-risk process safety control projects requiring SIL3 safety integrity level.

FAQ

1. Q: What is HIMA F7126?
   A: It is a SIL3 safety controller module of HIMA HIMatrix series, used for safety instrumented system SIS logic control.

2. Q: What safety level does F7126 support?
   A: It is TÜV certified SIL3 with 1oo2D dual redundant fault tolerant architecture.

3. Q: What systems can it be used for?
   A: It is applied in ESD emergency shutdown, fire and gas detection and safety interlock systems.
