GE VMIVME-7452 VMEbus Storage Carrier Board in stock

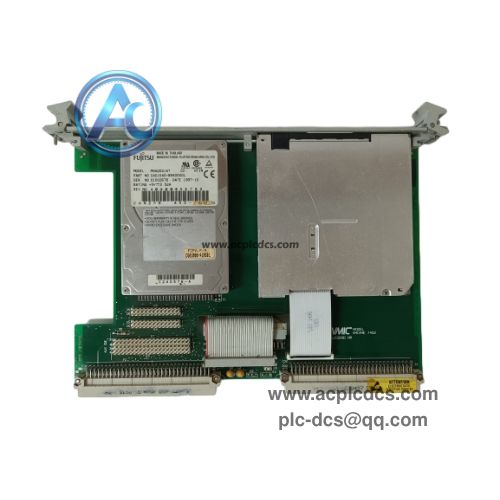

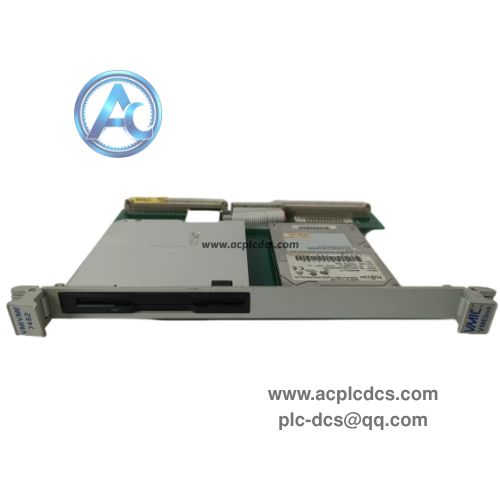

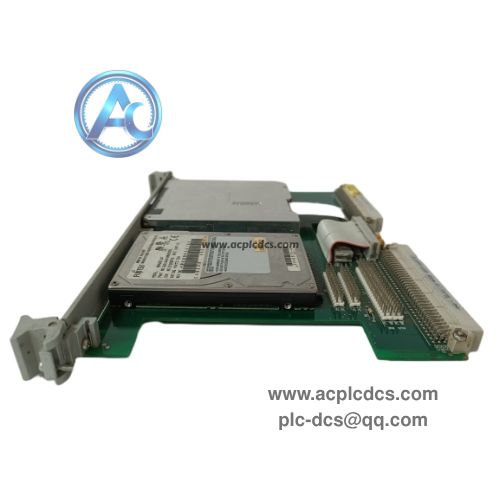

GE VMIVME-7452 is a 6U VMEbus passive storage carrier board originally manufactured by VMIC (GE). It is a non-processing carrier board, equipped with drive bays for 3.5-inch floppy disk and 2.5-inch IDE hard disk, supporting optional flash storage upgrade for VME single board computer systems.
This board connects to VME backplane via P1/P2 connectors, and works cooperatively with VMIC VME SBCs to provide local persistent storage. It stores embedded operating systems, control firmware and historical process data. It is an obsolete legacy hardware, only available as surplus or refurbished spare parts for legacy VME embedded control racks.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | GE VMIC |
| 2 | Model | VMIVME-7452 |
| 3 | Module Type | 6U VMEbus Passive Storage Carrier Board |
| 4 | Form Factor | 6U Eurocard, single VME slot |
| 5 | Storage Support | 3.5" 1.44MB floppy + 2.5" IDE HDD, optional flash disk |
| 6 | Connector | VME P1 / P2 backplane connectors |
| 7 | Operating Temperature | 0℃ ~ +60℃ |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Provide physical carrier and interface for floppy disk and IDE hard disk in VME rack |
| 2 | Store embedded OS, control firmware, application program and process trend logs |
| 3 | Work with compatible VME single board computers to expand local persistent storage |
| 4 | Optional flash media upgrade to replace mechanical disk for better shock resistance |
| 5 | Passive circuit design, low power consumption, powered from VME backplane |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Power plant turbine VME control rack local data and firmware storage |
| 2 | Industrial embedded real-time control systems running VxWorks / Linux |
| 3 | Aerospace and defense VME test & measurement embedded racks |
| 4 | Heavy industry legacy automation equipment data logging system |
| 5 | Legacy VMEbus control system spare parts replacement and retrofit |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:What is GE VMIVME-7452? A:It is 6U VME passive storage carrier board, used to install floppy and IDE hard disk for VME single board computer, providing local storage for embedded control firmware and process data. |
| 2 | Q:Does this board have onboard CPU? A:No, it is a passive carrier board without processing chip. It relies on VME SBC to implement disk read and write operations. |
| 3 | Q:Is this board still in production? A:No, GE discontinued production, only surplus and refurbished spare parts available for legacy system maintenance. |
