Products Description

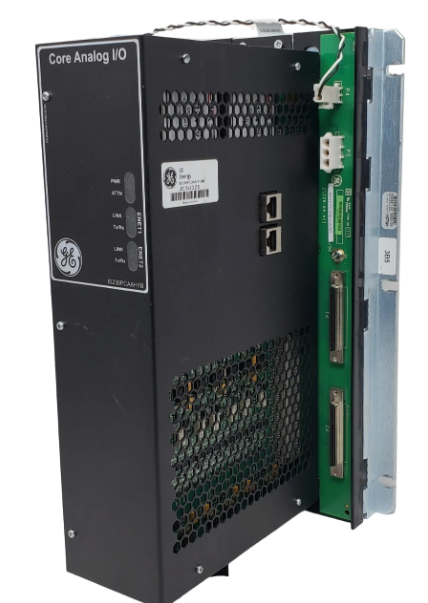

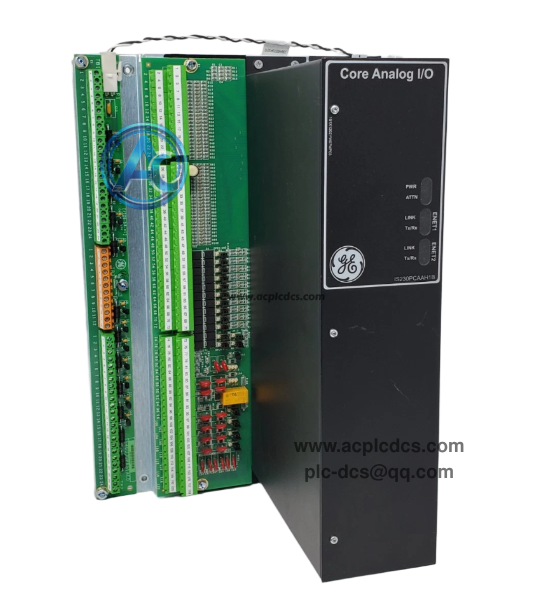

GE IS230PCAAH1B Core Analog I/O Pack Mark VIe Turbine Control System
GE IS230PCAAH1B is a Core Analog I/O pack developed for GE Mark VIe / Mark VIeS distributed turbine control system. It integrates multi-channel analog input and output, LVDT excitation signal monitoring and servo drive functions, collecting field measurement signals and outputting analog control commands for gas and steam turbine closed-loop regulation.
This module adopts built-in signal isolation and anti-interference circuit design, supporting high-precision voltage, current and LVDT signal processing. It communicates with the main controller via dual Ethernet links, and carries on-board self-diagnosis for signal channel and hardware health status. It is discontinued legacy turbine control hardware, available as surplus or refurbished spare parts for power plant system maintenance and retrofit.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | GE General Electric |
| 2 | Model | IS230PCAAH1B |
| 3 | Module Type | Core Analog I/O Pack |
| 4 | Compatible System | Mark VIe / Mark VIeS Turbine Control System |
| 5 | Power Supply | 28VDC ±5% |
| 6 | Communication | Dual 10/100Mbps Ethernet |
| 7 | Operating Temperature | 0℃ ~ +60℃ |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Multi-channel analog signal acquisition for pressure, temperature and vibration measurement of turbines |
| 2 | LVDT excitation monitoring and servo drive output for valve position closed-loop control |
| 3 | Dual redundant Ethernet communication to exchange I/O data with Mark VIe main controller |
| 4 | Signal conditioning, galvanic isolation and high-resolution analog-digital conversion |
| 5 | Continuous on-board self-diagnosis for channel fault and module health monitoring |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Power plant gas turbine and steam turbine Mark VIe control cabinets |
| 2 | Combined cycle power generation unit valve servo control and monitoring |
| 3 | Oil & gas power generation turbine process signal acquisition system |
| 4 | Heavy-duty rotating machinery closed-loop control and safety monitoring |
| 5 | Legacy Mark VIe turbine control system spare replacement and retrofit project |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:What is GE IS230PCAAH1B? A:It is Core Analog I/O pack for Mark VIe turbine control system. It collects analog field signals, provides LVDT excitation and servo valve drive, communicates with main controller via dual Ethernet to realize turbine closed-loop control. |
| 2 | Q:What is the main advantage of dual Ethernet ports? A:Dual redundant network design. If one communication channel fails, the other channel automatically takes over, avoiding interruption of analog control signals and improving the reliability of turbine valve control. |
| 3 | Q:Is IS230PCAAH1B still in production? A:GE Mark VIe series IS230PCAAH1B has been discontinued. Available stock is surplus or refurbished spare parts for maintenance of legacy turbine control systems. |
