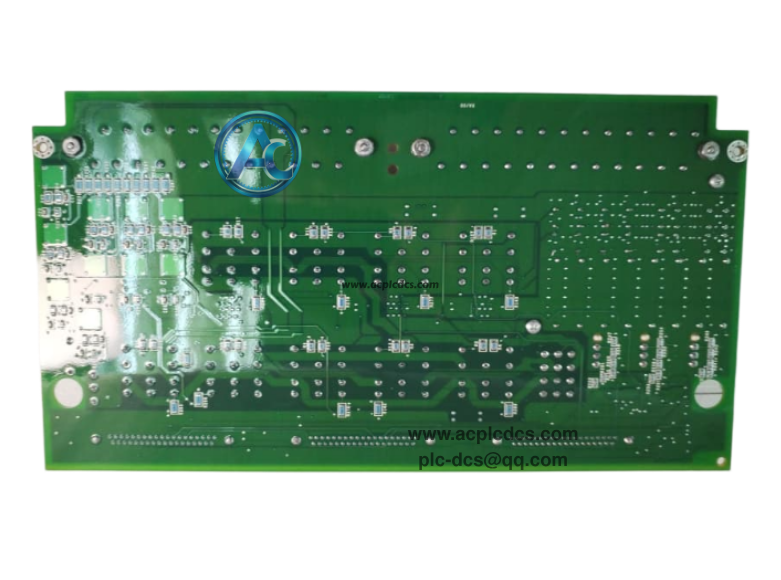

GE IS200TRPGH1BDE Terminal Relay Board in stock
GE IS200TRPGH1BDE is a conformal coated TRPG trip return terminal board for GE Speedtronic Mark VI and Mark VIe turbine safety systems. It provides the negative 125VDC return path for emergency trip solenoid circuits, normally matched with IS200TREGH1BEC positive trip board to form complete energize-to-trip safety loops for independent overspeed protection.
This board integrates 8 isolation relays and MOV surge suppression, supports 2oo3 TMR voting logic together with VPRO overspeed processor packs. The conformal coating protects PCB against moisture and corrosion, widely used as spare parts for gas and steam turbine ESD protection cabinets in power plants.
Data Parameters
1. Brand: GE (General Electric, Speedtronic)
2. Model: IS200TRPGH1BDE
3. Product Type: Trip Return Terminal Relay Board (TRPG)
4. Application: Mark VI / Mark VIe turbine independent overspeed safety system
5. Feature: Negative 125VDC trip return, 8 isolation relays, conformal coating
6. Characteristic: MOV surge suppression, 48-point screw terminal block, TMR compatible
7. Matching Partner: IS200TREGH1BEC positive trip board
8. Safety Logic: 2-out-of-3 voting for overspeed emergency trip
9. Mounting: Plug-in installation inside Mark VI / Mark VIe control rack
10. Operating Temperature: -20℃ ~ +70℃
Core Functions
1. Provide negative power return path for 125VDC trip solenoid safety circuits.
2. Segment trip loops by isolation relays to avoid single-point fault spreading.
3. Suppress surge voltage and transient interference to protect trip components.
4. Cooperate with TREG board and VPRO pack to realize overspeed trip voting logic.
5. Support fault diagnosis of relay status and wiring for safety loop monitoring.
Application Scenarios
1. Combined cycle power plant gas turbine independent overspeed protection cabinet.
2. Steam turbine emergency shutdown and critical safety interlock rack.
3. GE Mark VI / Mark VIe turbine safety system overhaul and spare replacement.
4. VPRO overspeed processor matched trip termination unit.
5. Coastal and humid power plant control cabinet with anti-corrosion coated PCB.
FAQ
1. Q: What is GE IS200TRPGH1BDE?
A: It is a conformal coated negative trip return terminal board for Mark VI/VIe overspeed safety trip circuits.2. Q: What is the difference between IS200TRPGH1BDE and IS200TRPGH1BCC?
A: BDE is negative return trip board for VPRO overspeed; BCC is general relay trip board for standard turbine protection.3. Q: Can it work alone without TREG board?
A: No, it needs to pair with IS200TREGH1BEC positive trip board to complete the trip circuit.
