GE ICP232.2-5V 029.361114 Serial Communication Board in stock

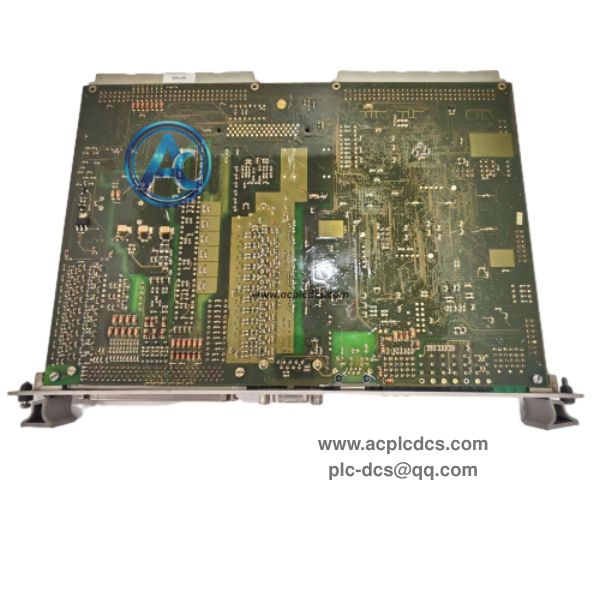

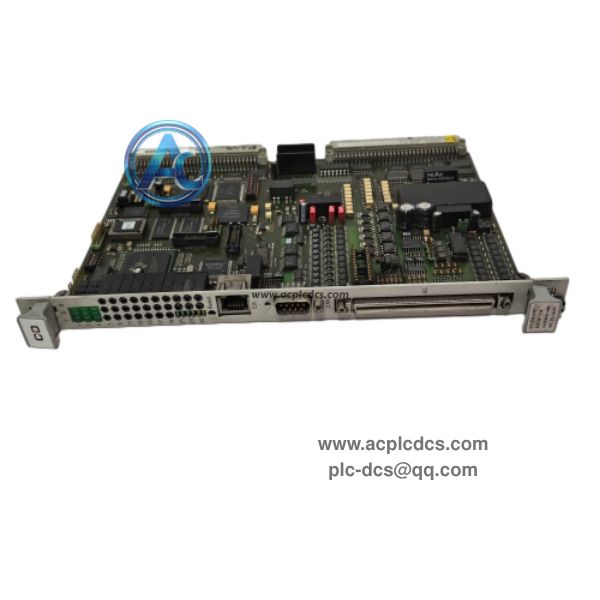

GE ICP232.2-5V 029.361114 is a VME-bus RS232 serial interface module, compatible with Concurrent real-time simulation control platforms. It is designed for 5V bus power supply, providing multi-channel RS232 serial ports for real-time data transmission between controllers and field instruments.

This legacy VME board supports adjustable baud rate, parity and data bit parameters. It is widely matched with Concurrent CPU boards, used in hardware-in-the-loop simulation and old industrial control racks for spare replacement and maintenance.

Data Parameters

• 1. Brand: GE (Concurrent)

• 2. Model: ICP232.2-5V, Part No: 029.361114

• 3. Product Type: VME RS232 Serial Communication Module

• 4. Bus Standard: VMEbus

• 5. Power Supply: 5V onboard power

• 6. Interface: Multi-channel RS232 serial port

• 7. Baud Rate: Configurable up to 115200 bps

• 8. Feature: Hardware FIFO buffer, serial parameter configurable

• 9. Humidity: 5%~95% non-condensing

• 10. Operating Temperature: -20℃ ~ +70℃

Core Functions

• 1. Realize multi-channel RS232 serial data sending and receiving under VME bus system.

• 2. Connect serial sensors, display units and third-party slave devices for data exchange.

• 3. Support flexible serial communication parameter setting for different serial protocols.

• 4. Built-in hardware buffer to reduce data loss during high-speed continuous transmission.

• 5. Cooperate with Concurrent CPU for real-time simulation and test bench control.

Application Scenarios

• 1. Aerospace, marine hardware-in-the-loop real-time simulation test systems.

• 2. Legacy VME industrial control racks built on Concurrent platform.

• 3. Serial instrument data acquisition and monitoring unit expansion.

• 4. Power and defense industry simulation equipment serial communication expansion.

• 5. Spare replacement and maintenance of old VME serial communication modules.

FAQ

• 1. Q: What is GE ICP232.2-5V 029.361114?
      A: It is VME bus RS232 serial communication board for Concurrent real-time simulation system.

• 2. Q: What is the difference between ICP232.2-5V and SSI232.1?
      A: Same series serial boards, different versions for different VME bus power specifications.

• 3. Q: Is this module still in production?
      A: Discontinued, only for aftermarket spare parts supply.
