Products Description

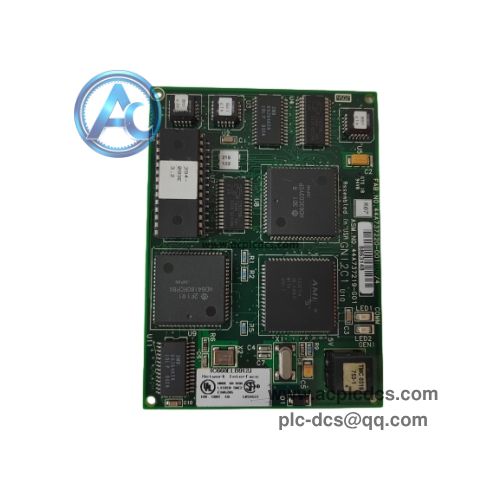

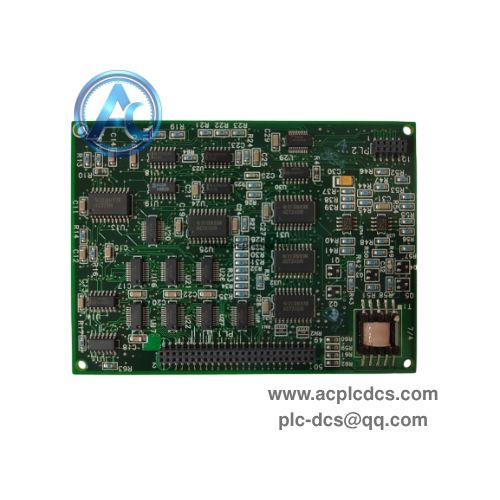

GE IC660ELB912 Interface Daughterboard in stock
GE IC660ELB912 is a MicroGENI (Micro Genius) network interface daughterboard developed by GE Fanuc, designed for Genius I/O distributed bus system. It adopts dual-processor architecture and dual-port RAM to offload bus communication tasks from host CPU, serving as a bridge between main controller and Genius I/O field devices.
This board supports multiple baud rate options and can connect up to 30 Genius I/O devices. It is a discontinued legacy spare part, widely used for maintenance replacement of old GE Genius I/O automation systems in power, oil & gas and chemical industries.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | GE Fanuc |
| 2 | Model | IC660ELB912 |
| 3 | Module Type | MicroGENI Genius Network Interface Daughterboard |
| 4 | Applicable System | GE Genius I/O Distributed Control System |
| 5 | Processor | 6303 serial processor + 64180 management processor |
| 6 | Dual-port RAM | 16KB dual-port RAM for host data exchange |
| 7 | Power Requirement | 5VDC, 400mA |
| 8 | Baud Rate | 38.4K /76.8K /153.6K bps |
| 9 | Max Connected Devices | Up to 30 Genius I/O devices |
| 10 | Status | Discontinued legacy spare part |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Act as Genius bus interface, realize bidirectional data transmission between host CPU and Genius I/O field modules. |
| 2 | Dual processor offloads serial communication processing, reduce host CPU load for real-time control. |
| 3 | Adopt 16KB dual-port RAM to achieve fast and stable data sharing between host and sub-board. |
| 4 | Support Genius protocol, realize global data, datagram and directed control message transmission. |
| 5 | Onboard LED indicators to show network running status and communication fault alarm. |
Application Scenarios
| No. | Application |
|---|---|
| 1 | GE Genius I/O distributed automation control system for power plants |
| 2 | Oil & gas and petrochemical plant field I/O bus communication control |
| 3 | Pulp and paper industry distributed process monitoring and control system |
| 4 | Legacy Genius I/O system spare replacement and on-site maintenance project |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q: What is GE IC660ELB912? A: It is MicroGENI Genius network interface daughterboard for GE Genius I/O distributed bus control system. |
| 2 | Q: What is the core advantage of dual-processor design? A: It can separate communication tasks from host CPU, reduce host load and guarantee stable real-time control. |
| 3 | Q: How many Genius I/O devices can this board connect? A: It supports up to 30 Genius I/O field devices on the Genius bus network. |
