Products Description
GE DS200SIOBH1ACA VME Serial I/O Board in stock

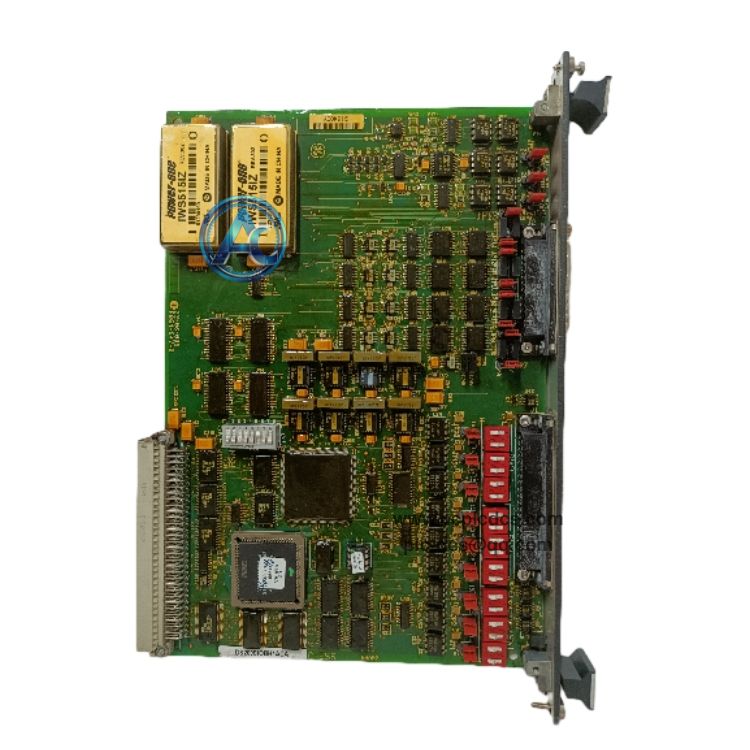

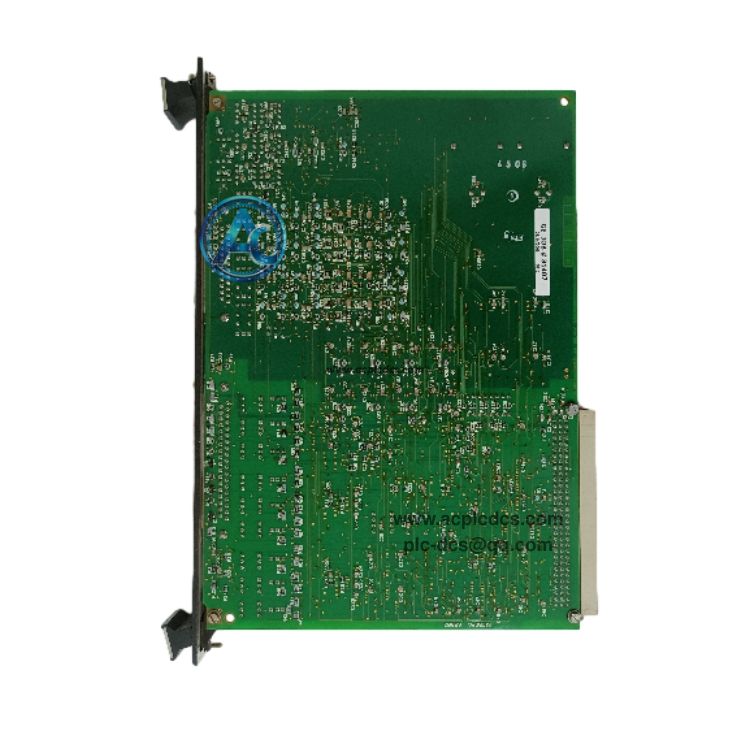

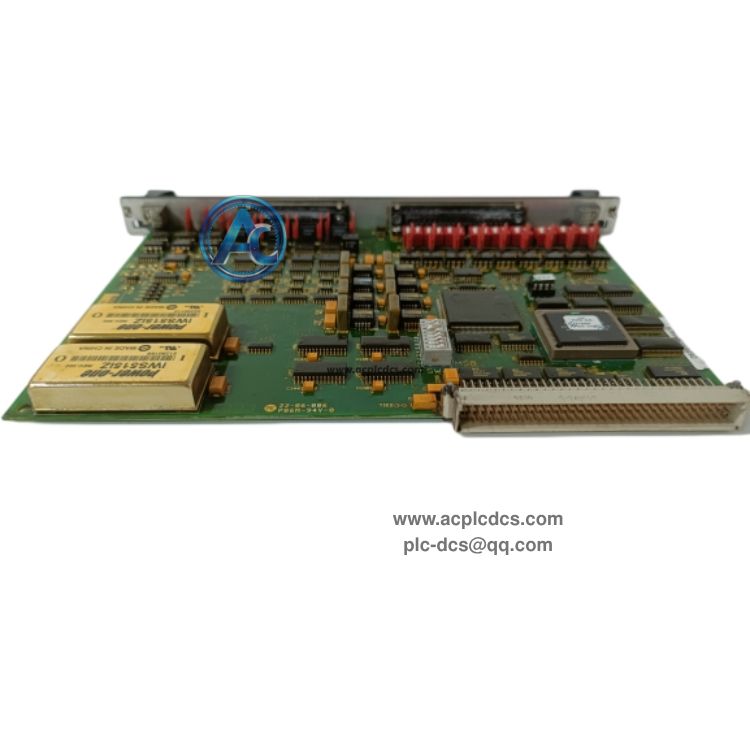

GE DS200SIOBH1ACA is a 6U VME SIOB serial I/O board for GE Speedtronic Mark V turbine control system. It acts as the interface between Mark V controller and field serial intelligent devices and discrete signals, equipped with high isolation circuits and conformal coating for harsh industrial cabinet environments.
This board comes with multiple DIP switch blocks and jumpers for hardware configuration, onboard LED status indicator and 40-pin field connector. It is a discontinued legacy component, supplied as surplus or refurbished spare parts for maintenance and retrofit of existing Mark V gas and steam turbine control cabinets.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | GE General Electric |
| 2 | Model | DS200SIOBH1ACA |
| 3 | Module Type | VME Serial I/O Board (SIOB) |
| 4 | Compatible System | Speedtronic Mark V Turbine Control System |
| 5 | Hardware Configuration | 3 switch blocks, 20 jumpers, 40-pin connector |
| 6 | Protection | High voltage isolation, conformal coating |
| 7 | Operating Temperature | -40℃ ~ +70℃ |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Serial communication between Mark V turbine controller and field smart instruments |
| 2 | Collect discrete digital input signals and output relay interlock control signals |
| 3 | Transmit I/O data to main controller via VME backplane bus |
| 4 | Hardware parameter setting via DIP switches and configurable jumpers |
| 5 | Onboard LED indicator for running status and fault troubleshooting |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Power plant Mark V gas turbine and steam turbine control cabinet |
| 2 | Combined cycle power unit turbine safety interlock monitoring system |
| 3 | Oil & gas compressor turbine Speedtronic control system |
| 4 | Field serial device and discrete signal interface for turbine control |
| 5 | Legacy Mark V turbine control system spare replacement and retrofit |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:What is GE DS200SIOBH1ACA? A:It is VME serial I/O SIOB board for GE Speedtronic Mark V turbine control system, providing serial communication and discrete signal interface between turbine controller and field equipment. |
| 2 | Q:What is the difference between SIOBH1ACA, SIOBH1AAA and SIOBH1ABA? A:All belong to SIOB series for Mark V, different hardware revisions. 1ACA is high-isolation serial I/O variant, 1AAA is RS485 serial + discrete I/O, while 1ABA is mixed analog & digital I/O version. |
| 3 | Q:Is DS200SIOBH1ACA still in production? A:DS200SIOBH1ACA has been discontinued. Available stock is surplus or refurbished spare parts for maintenance of old Mark V turbine control systems. |
