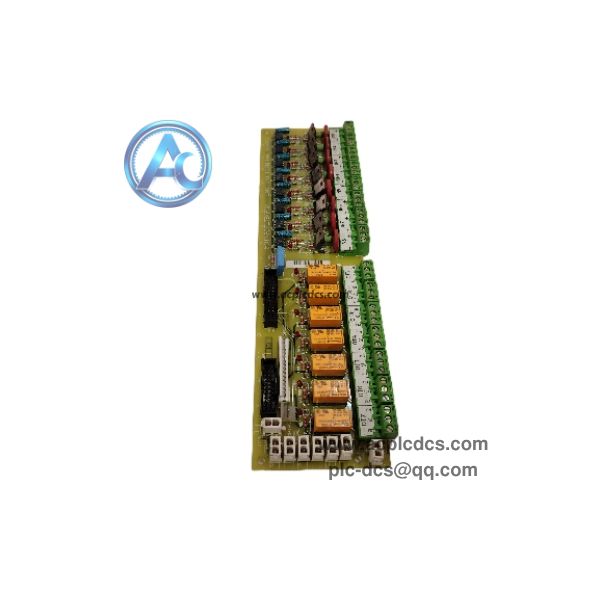

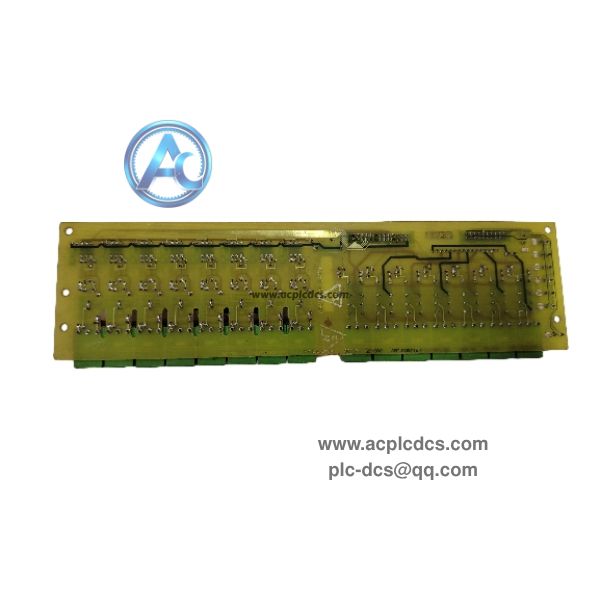

GE 531X307LTBAFG1 LAN I/O Terminal Board in stock

GE 531X307LTBAFG1 is a LAN I/O terminal board for GE EX2000 generator excitation system. It acts as the signal interface between the excitation main controller and field peripheral devices, collecting digital interlock signals and outputting relay control signals.

This legacy circuit board has been discontinued. It is widely used as spare parts for power plant excitation cabinet maintenance and renovation, supporting 8 configurable control inputs and 7 relay output channels for interlock and indicator control.

Data Parameters

• 1. Brand: GE (General Electric / GE Vernova)

• 2. Model: 531X307LTBAFG1

• 3. Product Type: LAN I/O Terminal Board

• 4. Application: EX2000 synchronous generator excitation control system

• 5. Feature: 8 configurable digital inputs, 7 Form C relay outputs

• 6. Characteristic: Input range 2~240V AC/DC, relay contact interlock

• 7. Communication: LAN internal bus, matched with NTB board

• 8. Compatible Devices: EX2000 excitation controller, field pushbuttons and indicators

• 9. Mounting: Installed inside excitation cabinet rack slot

• 10. Operating Temperature: -20℃ ~ +70℃

Core Functions

• 1. Receive field interlock, pushbutton and status digital input signals.

• 2. Output relay contact signals to control indicators, contactors and interlock loops.

• 3. Transmit I/O status data to the main control board via LAN internal bus.

• 4. Cooperate with NTB/3TB terminal board to complete signal distribution of excitation system.

• 5. Provide onboard signal isolation and surge protection for field wiring circuits.

Application Scenarios

• 1. Thermal power plant EX2000 generator excitation control cabinet.

• 2. Hydropower station synchronous generator excitation regulation unit.

• 3. Industrial self-owned power station generator protection and interlock system.

• 4. Turbine excitation cabinet signal acquisition and relay output control.

• 5. Old GE EX2000 system spare replacement and technical transformation.

FAQ

• 1. Q: What is GE 531X307LTBAFG1?
      A: It is LAN I/O terminal board specially designed for GE EX2000 excitation system.

• 2. Q: What is the difference between 531X307LTBAFG1 and 531X307LTBAJG1?
      A: They belong to the same LTB series, different hardware revisions with slight terminal definition differences.

• 3. Q: Is this model still in production?
      A: It has been discontinued, only for aftermarket spare parts supply.
