GE 531X305NTBAPG1 NTB/3TB Terminal Board in stock

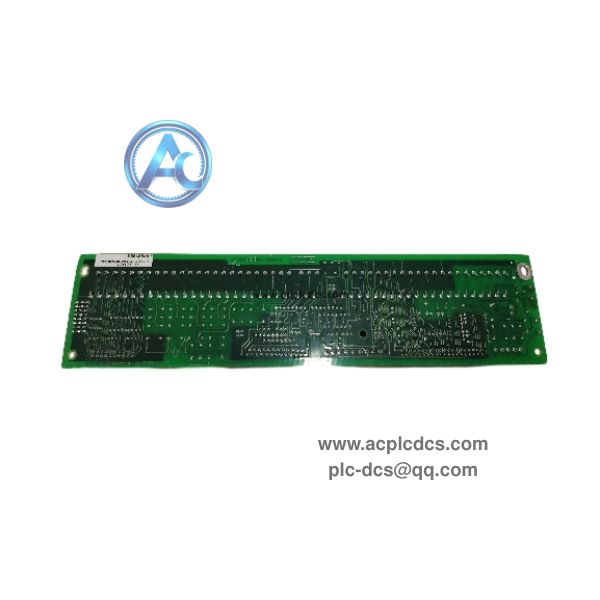

GE 531X305NTBAPG1 is an NTB/3TB terminal interface board for GE EX2000, DC2000 and Mark V excitation and large drive control systems. It acts as an external signal wiring interface inside the excitation cabinet, integrating analog signals, relay interlock outputs, encoder feedback and serial communication circuits.

This old-version circuit board is discontinued. It is commonly used as spare parts for power plant generator excitation and heavy industrial drive maintenance, with adjustable potentiometers and jumpers for signal range and encoder configuration.

Data Parameters

• 1. Brand: GE (General Electric / GE Vernova)

• 2. Model: 531X305NTBAPG1

• 3. Product Type: NTB/3TB Terminal Interface Board

• 4. Application: EX2000 / DC2000 / Mark V excitation and drive system

• 5. Feature: 7 relay outputs, A-Quad-B encoder port, analog signal conditioning

• 6. Characteristic: Regulated 5VDC / ±15VDC, unregulated 24VDC /125VAC power supply

• 7. Communication: RS232C, RS422 serial port

• 8. Compatible Devices: GE generator excitation, large DC drive controller

• 9. Mounting: Installed inside drive or excitation cabinet rack

• 10. Operating Temperature: -20℃ ~ +70℃

Core Functions

• 1. Provide terminal wiring for analog measurement signals and interlock relay signals.

• 2. Receive A-Quad-B encoder signals for speed and position feedback of drive equipment.

• 3. Supply stable and unregulated auxiliary power for field peripheral signal circuits.

• 4. Support serial communication for online parameter debugging and fault diagnosis.

• 5. Adjust analog scaling and encoder operating voltage via onboard potentiometers and jumpers.

Application Scenarios

• 1. Power plant steam turbine and gas turbine excitation control cabinet.

• 2. EX2000 synchronous generator excitation regulation unit.

• 3. Large DC drive and rolling mill heavy-duty drive control system.

• 4. Industrial drive interlock, speed feedback and signal acquisition cabinet.

• 5. Old GE Mark V / DC2000 system spare replacement and overhaul.

FAQ

• 1. Q: What is GE 531X305NTBAPG1?
      A: It is NTB/3TB signal terminal board for GE EX2000/DC2000 excitation and drive system.

• 2. Q: What is the difference between 531X305NTBAPG1 and 531X305NTBANG1?
      A: They belong to the same NTB/3TB series, different hardware revisions with minor circuit differences.

• 3. Q: Is this model still in production?
      A: It has been discontinued, only available for aftermarket spare supply.
