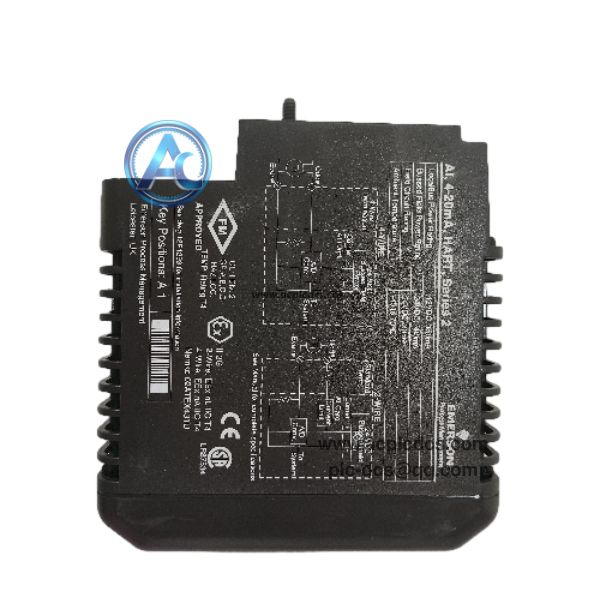

EMERSON KJ4110X1-BA1 DeltaV Standard Terminal Block in stock

EMERSON KJ4110X1-BA1 is an intrinsic safety terminal block for Emerson DeltaV DCS system. It mates with DeltaV I/O cards to provide field wiring termination, signal isolation and intrinsic safety protection for hazardous area instrument loops.

This terminal block adopts blue IS housing design, supports quick connection and hot insertion under system specifications. It simplifies field wiring and protects I/O cards from overvoltage and surge interference. Widely used in power, chemical and pulp & paper DCS maintenance, spare replacement and control system retrofit projects.

Data Parameters

• 1. Brand: Emerson.

• 2. Model: KJ4110X1-BA1.

• 3. Product Type: Intrinsic Safety Terminal Block.

• 4. Application: Emerson DeltaV DCS I/O module wiring termination.

• 5. Feature: IS intrinsically safe, quick plug connection, blue housing.

• 6. Characteristic: Matched with DeltaV series I/O cards for field instrument wiring.

• 7. Mounting: DIN rail installation behind DeltaV I/O card.

• 8. Package: Terminal block assembly with screw terminals.

• 9. Compatibility: Compatible with DeltaV analog and digital I/O modules.

• 10. Operating Temperature: -40℃ ~ +70℃.

Core Functions

• 1. Provide wiring terminals for field transmitters, switches and sensors connected to DeltaV I/O cards.

• 2. Intrinsic safety protection for hazardous area loops, limiting energy to prevent explosion risk.

• 3. Signal surge suppression and isolation to protect the I/O card against field electrical interference.

• 4. Quick plug-in structure for fast module replacement without re-wiring field cables.

• 5. Built-in circuit monitoring to detect wiring faults and short-circuit conditions.

Application Scenarios

• 1. Power plant DeltaV DCS cabinet terminal block spare replacement.

• 2. Petrochemical plant hazardous area instrument loop wiring maintenance project.

• 3. Pulp and paper mill DCS control system field wiring upgrade.

• 4. Heavy industry DeltaV intrinsic safety control spare parts inventory backup.

• 5. Old DeltaV IS terminal block renewal and retrofit project.

FAQ

• 1. Q: What is EMERSON KJ4110X1-BA1?
      A: It is Emerson DeltaV intrinsic safety terminal block, used for field signal wiring termination for DeltaV I/O modules in hazardous locations.

• 2. Q: What does IS stand for?
      A: IS means Intrinsic Safety, certified for use in explosive hazardous area applications.

• 3. Q: Can it be hot swapped?
      A: Follow DeltaV operation manual; ensure field hazardous circuit is isolated before replacement.
