Products Description

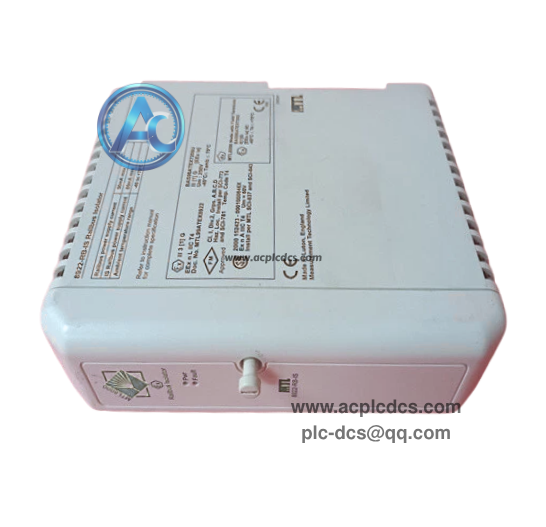

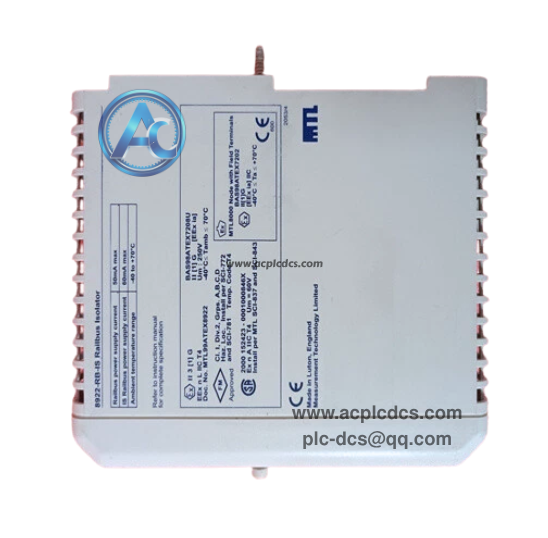

EATON 8922-RB-IS Railbus Intrinsically Safe Isolator Module in stock
EATON 8922-RB-IS (MTL) is a railbus intrinsically safe isolator module, designed to separate hazardous area and safe area for MTL 8000 series IS system. It provides galvanic isolation for railbus communication data lines, limiting energy transfer to explosion-proof field circuits and enabling reliable digital data transmission between I.S. modules and backplane host system.
This module is DIN rail mountable, ATEX / IECEx certified for intrinsically safe applications. It works with 8230-AI-IS and other 8000 series I.S. I/O modules, supporting multi-channel field signal collection. It is legacy explosion protection automation hardware, supplied as surplus or refurbished spare parts for petrochemical plant safety system maintenance and upgrade.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | EATON MTL |
| 2 | Model | 8922-RB-IS |
| 3 | Module Type | Railbus Intrinsically Safe Isolator |
| 4 | Compatible Series | MTL 8000 Series Intrinsically Safe System |
| 5 | Certification | ATEX, IECEx Intrinsically Safe Certification |
| 6 | Mounting | DIN rail mounting |
| 7 | Operating Temperature | -20℃ ~ +60℃ |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Provide galvanic isolation for railbus communication lines between safe zone and hazardous zone |
| 2 | Limit energy passing to field side to meet intrinsic safety requirements for explosive atmosphere |
| 3 | Transmit digital data between MTL 8000 IS I/O modules and system backplane |
| 4 | Support multi-module expansion on railbus, matched with 8230-AI-IS analog input module |
| 5 | Suppress surge and electromagnetic interference to protect explosion-proof field instruments |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Petrochemical plant intrinsically safe control system for hazardous area |
| 2 | Oil & gas onshore / offshore platform process monitoring and safety control |
| 3 | Chemical reactor, tank farm explosion-proof instrument signal isolation |
| 4 | Pharmaceutical, grain and other explosive dust environment automation system |
| 5 | Legacy MTL8000 IS system spare replacement and retrofit project |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:What is EATON 8922-RB-IS? A:It is EATON MTL railbus intrinsically safe isolator module for MTL8000 series. It isolates railbus communication lines, restricts energy transfer, enables safe digital communication between safe area controller and hazardous area I.S. field modules. |
| 2 | Q:Which modules work with 8922-RB-IS? A:It is designed for MTL 8000 series I.S. modules, such as 8230-AI-IS 8-channel analog input module, and installed with module carrier base for rack assembly. |
| 3 | Q:Is 8922-RB-IS still in production? A:EATON MTL 8922-RB-IS has been discontinued. Available stock is surplus or refurbished spare parts for maintenance of legacy intrinsically safe automation systems. |
