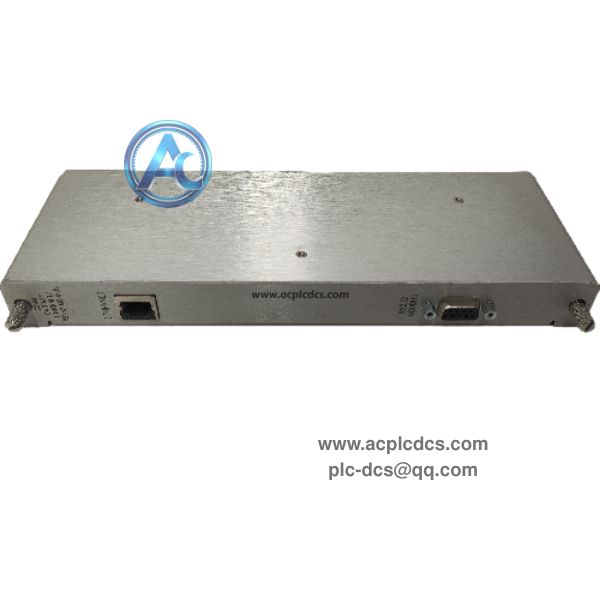

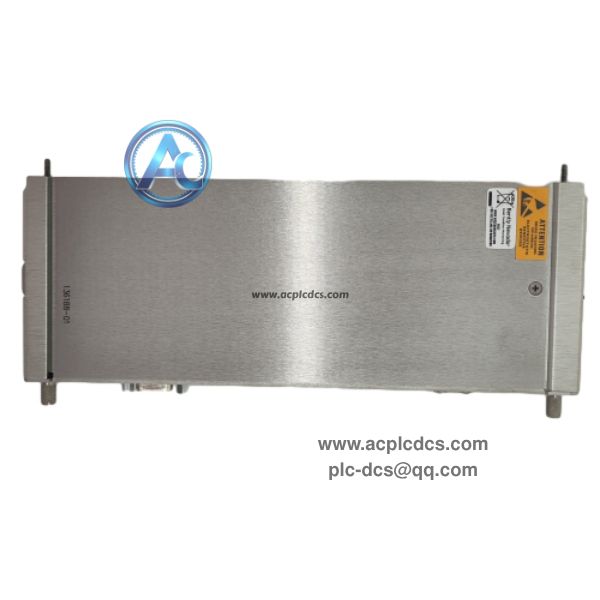

Bently Nevada 3500/92 136188-01 Communication Gateway Module in stock

Bently Nevada 3500/92 136188-01 is an Ethernet communication gateway module for Bently Nevada 3500 machinery protection rack. It collects real-time vibration, speed, position and alarm data from all internal rack modules, and transmits these machinery health data to DCS, PLC or monitoring workstation via Ethernet port.

This module supports multiple industrial communication protocols and built-in network diagnostic functions. It adopts hot-swap design for online maintenance without stopping the whole monitoring rack, widely used for rotating machinery monitoring cabinet maintenance, spare parts replacement and machine protection system network retrofit projects.

Data Parameters

• 1. Brand: Bently Nevada (Baker Hughes).

• 2. Model: 3500/92, Part Number:136188-01.

• 3. Product Type: Communication Gateway Module.

• 4. Product Series: 3500 Machinery Protection System.

• 5. Port: Ethernet communication interface.

• 6. Function: Internal rack data acquisition and external protocol transmission.

• 7. Protocol: Support multiple standard industrial automation protocols.

• 8. Feature: Hot swappable without system shutdown.

• 9. Diagnosis: Network link and module hardware fault monitoring.

• 10. Operating Temperature: 0℃ ~ +60℃.

Core Functions

• 1. Collect real-time machinery condition data from all installed modules inside the 3500 rack via internal backplane bus.

• 2. Convert internal rack data into standard industrial protocol and send to upper DCS, PLC or monitoring workstation over Ethernet.

• 3. Provide remote access channel for viewing machine operating status, alarm logs and historical monitoring records.

• 4. Continuously diagnose network and module hardware faults and upload alarm signals to the system.

• 5. Support hot-swap replacement, allowing maintenance without interrupting the machinery protection system.

Application Scenarios

• 1. Thermal power plant turbine monitoring cabinet communication module overhaul and spare replacement.

• 2. Oil & gas compressor rotating machinery protection system network data transmission upgrade project.

• 3. Petrochemical plant large rotating equipment online monitoring data upload spare parts renewal.

• 4. Steel, paper and mining factories critical equipment protection system remote monitoring backup inventory.

• 5. Legacy Bently Nevada 3500 machinery monitoring system aging communication gateway replacement project.

FAQ

• 1. Q: What is Bently Nevada 3500/92 136188-01?
      A: It is Ethernet communication gateway module for Bently Nevada 3500 machinery protection system, used for transmitting machine monitoring data to host systems.

• 2. Q: What systems can it communicate with?
      A: It can send monitoring data to DCS, PLC and dedicated machinery condition monitoring workstations.

• 3. Q: Can 3500/92 be hot swapped?
      A: Yes, it supports hot swap, module replacement will not shut down the whole machinery monitoring rack.
