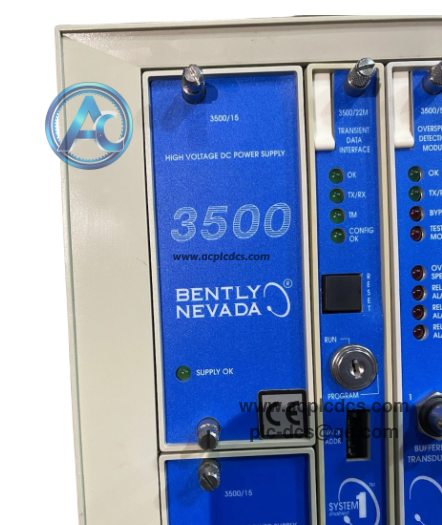

Bently Nevada 3500/15-03-03-00 129486-01 Power Supply Module

Bently Nevada 3500/15-03-03-00 (129486-01) is a dual redundant power supply module for the 3500 machinery monitoring system. It converts AC or DC input power into stable internal rack bus voltage to feed all monitoring cards, featuring built-in fault detection, overvoltage, overcurrent and short-circuit protection for continuous safe operation.

This module supports hot-swap replacement without powering down the whole rack. It can work in simplex or redundant parallel mode, status and fault alarms are uploaded to the 3500 system host. It is widely used on turbine, compressor and pump condition monitoring racks in power and petrochemical plants.

Data Parameters

• 1. Brand: Bently Nevada (Baker Hughes)

• 2. Model: 3500/15-03-03-00, Part No. 129486-01

• 3. Product Type: Redundant Rack Power Supply Module

• 4. Application: 3500 machinery condition monitoring rack

• 5. Feature: Dual input design, hot swappable, built-in fault diagnostics

• 6. Characteristic: Overvoltage, overcurrent and short-circuit protection

• 7. Input Range: Universal AC / DC input as per 03-03 configuration

• 8. Output: Internal regulated bus for 3500 rack modules

• 9. Mounting: Slot installation in 3500 rack rear chassis

• 10. Operating Temperature: 0℃ ~ +60℃

Core Functions

• 1. Provide stable regulated power for all monitoring modules inside the 3500 rack.

• 2. Support redundant parallel operation, automatic switchover if one supply fails.

• 3. Detect power abnormality and send fault alarm signals to the system controller.

• 4. Allow online hot swap for maintenance without interrupting machine monitoring.

• 5. Protect backplane and monitoring cards against surge and abnormal voltage.

Application Scenarios

• 1. Power plant steam/gas turbine vibration monitoring 3500 rack cabinet.

• 2. Petrochemical centrifugal compressor and large pump condition monitoring system.

• 3. Bently 3500 series rack overhaul and spare power supply replacement.

• 4. Oil & gas rotating machinery safety monitoring and protection system.

• 5. Redundant power backup spare for critical machinery monitoring racks.

FAQ

• 1. Q: What is 3500/15-03-03-01 129486-01?
      A: It is a Bently Nevada 3500 rack redundant power supply module with part number 129486-01.

• 2. Q: Can it be replaced while the rack is running?
      A: Yes, it supports hot swap under redundant configuration.

• 3. Q: What does the suffix -03-03-00 mean?
      A: It defines input type, voltage option and special configuration for this power supply.
