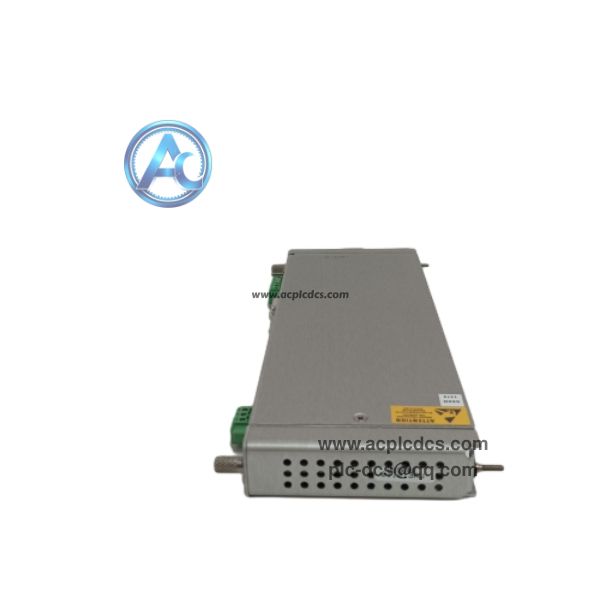

Bently Nevada 135031-01 3500/20 RIM I/O Module in stock

Bently Nevada 135031-01 is the I/O interface board for 3500/20 rack interface module, part of the 3500 machinery protection system. It provides external communication and modem interface for the RIM, responsible for signal routing and data transmission between the rack and external host.

This board works together with the main 3500/20 RIM card. It supports TDXnet communication and remote modem access, used for rack configuration, event uploading and machine monitoring data transmission. It is a legacy spare part for old 3500 racks.

Data Parameters

• 1. Brand: Bently Nevada (Baker Hughes)

• 2. Model: 135031-01

• 3. Product Type: 3500/20 RIM I/O Interface Board

• 4. Matching Main Module: 3500/20 Rack Interface Module

• 5. Communication: TDXnet, modem interface

• 6. Dimension: 241.3mm × 24.4mm × 99.1mm

• 7. Weight: Approx 0.45 kg

• 8. System: 3500 machinery condition monitoring rack

• 9. Humidity: 95% non-condensing

• 10. Operating Temperature: -30℃ ~ +65℃

Core Functions

• 1. Serve as external communication interface for 3500/20 RIM module with modem port.

• 2. Route rack bus data to TDXnet network for System 1 monitoring software.

• 3. Support remote configuration and event log upload via modem connection.

• 4. Realize signal isolation and conversion between backplane bus and external port.

• 5. Transfer vibration, speed and position data from all monitor modules in rack.

Application Scenarios

• 1. Power plant steam turbine and generator 3500 monitoring rack.

• 2. Oil & gas compressor, pump and high-speed rotating machinery protection system.

• 3. Petrochemical, metallurgy heavy industry machine condition monitoring cabinet.

• 4. Remote modem access for old generation 3500 rack configuration.

• 5. 3500/20 RIM I/O spare replacement and on-site maintenance.

FAQ

• 1. Q: What is Bently 135031-01?
      A: It is the I/O sub-board for 3500/20 rack interface module with modem interface.

• 2. Q: Can it work independently?
      A: No, it must be used together with the main 3500/20 RIM module.

• 3. Q: Is this model still in production?
      A: Discontinued, only supplied for aftermarket spare parts.
