ABB RF533 3BSE014227R1 12SU Subrack with BB510 Backplane in stock

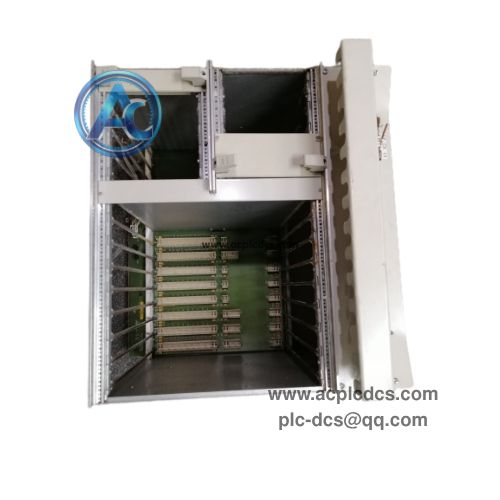

ABB RF533 (3BSE014227R1) is a 12SU subrack integrated with BB510 backplane, specially designed for ABB Advant Controller 450 DCS system. It provides mechanical support and electrical backplane bus connection for CPU, I/O and communication modules inside the control cabinet.
This rack adopts robust metal frame construction for industrial cabinet mounting. The onboard backplane realizes high-speed data interaction between all inserted modules. It is discontinued legacy spare unit, widely used for overhaul and replacement of old Advant 450 distributed control systems.
Main Specifications
| Item | Parameter |
| [1] Brand | ABB |
| [2] Model | RF533 3BSE014227R1 |
| [3] Product Type | 12SU Subrack with BB510 Backplane |
| [4] Applicable System | Advant Controller 450 DCS |
| [5] Slot Quantity | 12 slots |
| [6] Backplane Model | BB510 |
| [7] Mounting Method | Cabinet rack mounting |
| [8] Material | Heavy-duty metal frame |
| [9] Operating Temp | 0℃ ~ +60℃ |
| [10] Application | DCS control cabinet assembly |
Core Functions
| Function | Description |
| [1] Mechanical Module Housing | Provide stable mechanical installation frame for 12 pieces of DCS control modules. |
| [2] Backplane Bus Communication | BB510 backplane enables high-speed data exchange between all plugged modules. |
| [3] Power Distribution | Distribute system power supply to each slot for all inserted electronic boards. |
| [4] Vibration & Shock Protection | Rugged metal structure protects internal modules from industrial vibration impact. |
| [5] System Expansion Support | Support flexible configuration of CPU, I/O and communication modules for DCS system. |
Application Scenarios
| Industry | Usage |
| [1] Thermal Power Plant | Advant 450 DCS control cabinet assembly for boiler and turbine control. |
| [2] Petrochemical Industry | Distributed control system rack for chemical process monitoring and control. |
| [3] Pulp & Paper | Advant Controller 450 DCS rack for paper-making production line control. |
| [4] Legacy System Maintenance | Spare replacement for aging ABB Advant 450 DCS subrack assemblies. |
FAQ
| Question | Answer |
| [1] What is ABB RF533 3BSE014227R1? | It is 12SU subrack with BB510 backplane for ABB Advant Controller 450 DCS system. |
| [2] How many module slots does it have? | It has 12 slots for installing various DCS control and I/O modules. |
| [3] What backplane is equipped? | Comes with BB510 backplane to realize inter-module bus communication. |
| [4] Is it obsolete spare part? | Yes, it is legacy spare for maintenance of old Advant Controller 450 DCS cabinets. |
