Products Description

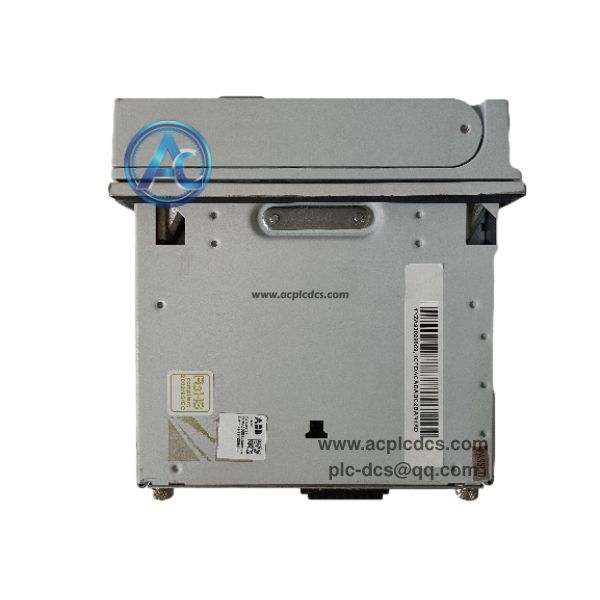

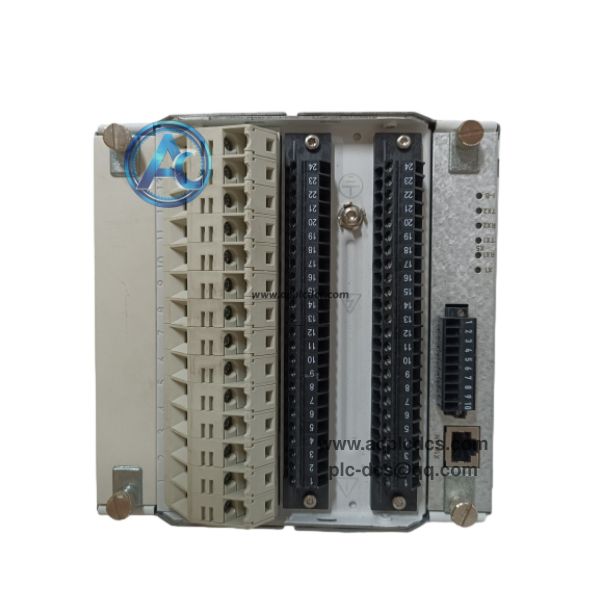

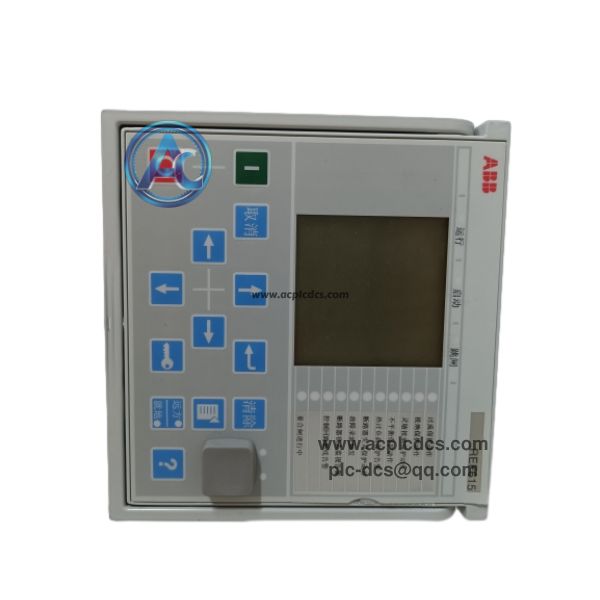

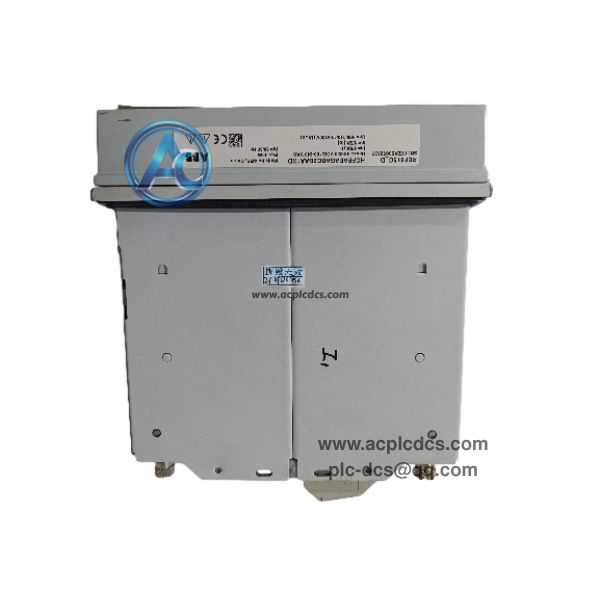

ABB REF615C-D HCFFAEAGABC2BAA1XD Feeder Protection Relay in stock
ABB REF615C-D HCFFAEAGABC2BAA1XD is a feeder protection and control relay from ABB Relion 615 series, designed for medium voltage distribution feeders. It integrates protection, control, measurement and supervision functions for overhead lines and cable feeders in power distribution networks.
This relay supports multiple communication protocols including IEC 61850, Modbus and DNP3. It has built-in HMI, fault recording and event logging. The full model code HCFFAEAGABC2BAA1XD defines hardware configuration, I/O quantity and communication options for substation automation.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | ABB |
| 2 | Model | REF615C-D HCFFAEAGABC2BAA1XD |
| 3 | Module Type | Feeder Protection and Control Relay, Relion 615 Series |
| 4 | Application Object | Medium voltage cable and overhead distribution feeders |
| 5 | Communication | IEC 61850, Modbus, DNP3, Ethernet |
| 6 | Power Supply | 80~250 VDC / 80~240 VAC |
| 7 | Operating Temperature | -40℃ ~ +70℃ |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Comprehensive feeder protection: overcurrent, earth fault, overload and voltage protection |
| 2 | Switchgear control, remote switching on/off and local HMI operation |
| 3 | Real-time voltage, current, power and energy measurement for power monitoring |
| 4 | Fault recording, event log and disturbance recording for post-fault analysis |
| 5 | Substation automation communication supporting IEC61850 GOOSE and MMS |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Urban and industrial medium voltage substation feeder protection |
| 2 | Power plant auxiliary medium voltage distribution network protection |
| 3 | Renewable energy station (solar/wind) feeder control and protection |
| 4 | Mine, petrochemical factory medium voltage power distribution system |
| 5 | Substation automation upgrade and protection relay spare replacement |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:What is REF615C-D used for? A:It is ABB Relion series feeder protection relay for medium voltage distribution feeders. |
| 2 | Q:What does the long suffix HCFFAEAGABC2BAA1XD mean? A:It is the full ordering code defining I/O, power supply, communication and hardware options. |
| 3 | Q:Does it support IEC61850? A:Yes, it supports IEC 61850 including GOOSE and MMS communication. |
