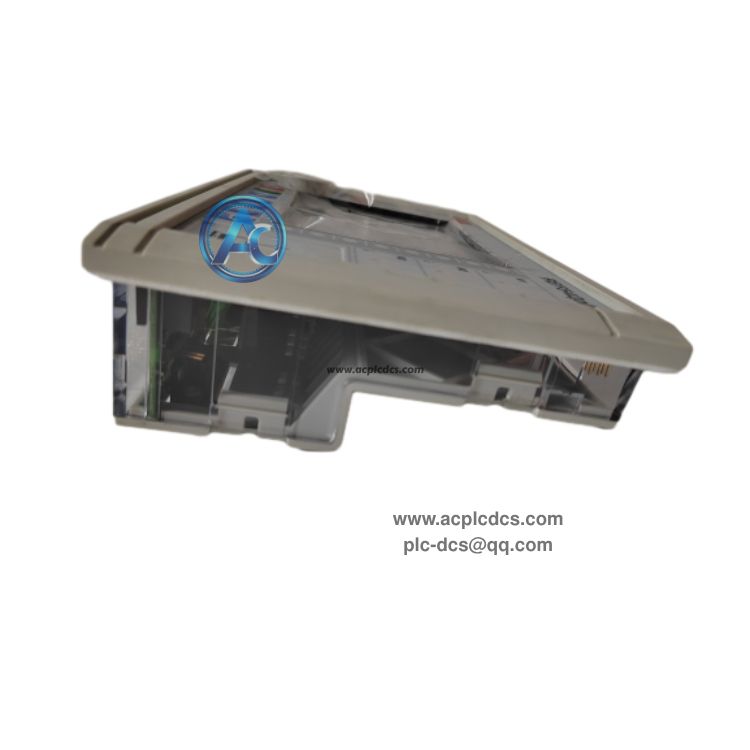

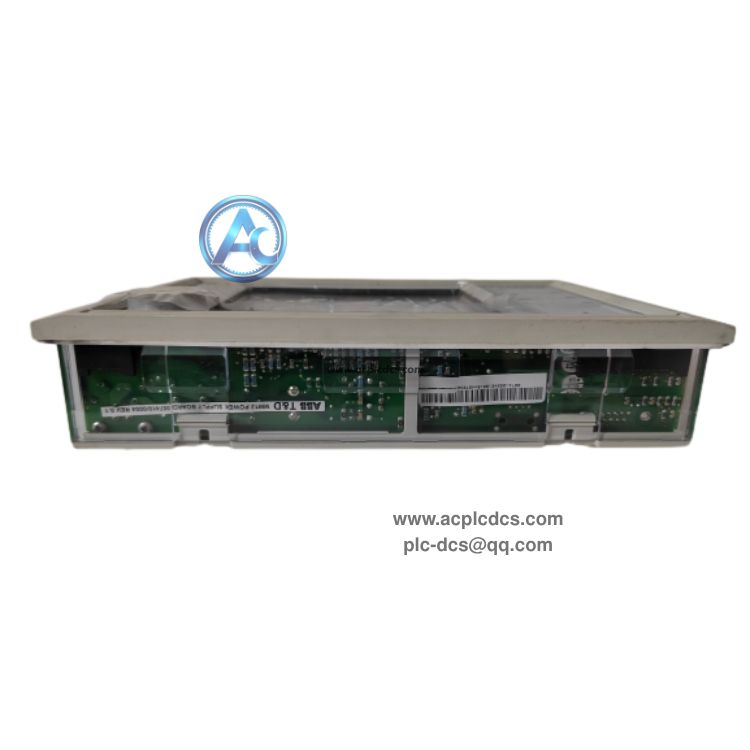

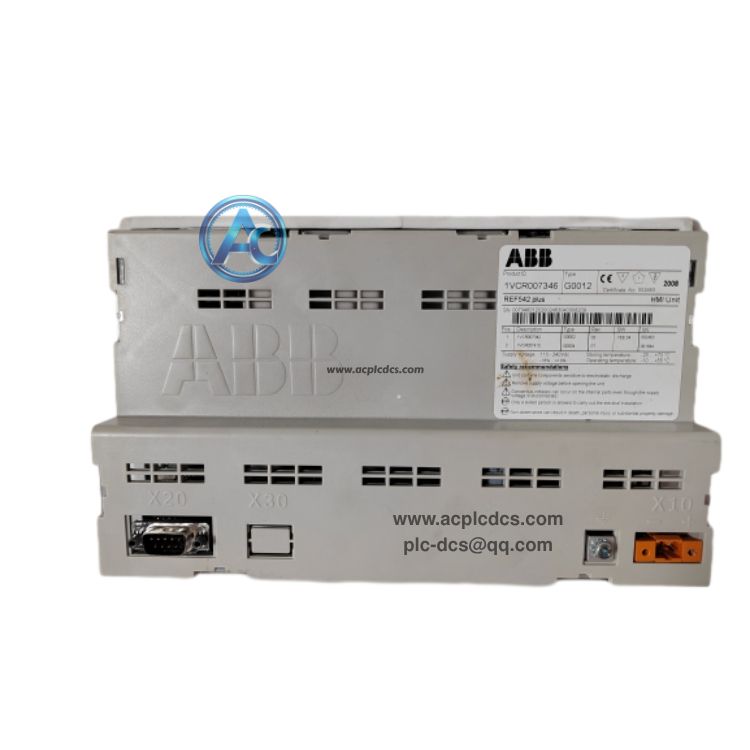

ABB REF542plus Multifunction Bay Protection and Control Unit in stock
ABB REF542plus is a compact digital bay protection and control unit for medium voltage switchgear. It integrates measurement, monitoring, protection, switch control and self-diagnosis into one single device, widely used for feeder, transformer and motor protection in substation automation systems.
This device consists of central processing unit and separate HMI panel, supporting multiple protection function configuration and rich communication interfaces. It has been discontinued since 2020, available spare parts are surplus or refurbished units for maintenance and retrofit of existing substation projects.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | ABB |
| 2 | Model | REF542plus |
| 3 | Module Type | Bay Protection & Control Unit, Feeder Terminal |
| 4 | Application Voltage Level | Medium Voltage Switchgear |
| 5 | Hardware Structure | Central Unit + Separated HMI Panel |
| 6 | Communication | Ethernet, RS485, CAN, IRIG-B time sync |
| 7 | Operating Temperature | -20℃ ~ +60℃ |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Comprehensive protection: overcurrent, earth fault, over/under voltage, frequency, thermal overload |
| 2 | Switch bay control, local remote operation, auto-reclosing and synchro check function |
| 3 | Real-time electrical measurement, fault recording and event sequence logging |
| 4 | Built-in hardware self-diagnosis to detect internal circuit and I/O faults |
| 5 | Data communication with substation SCADA and third-party automation systems |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Medium voltage feeder protection and bay control for power distribution substation |
| 2 | Industrial plant transformer and high-voltage motor protection control |
| 3 | Air-insulated and gas-insulated switchgear substation automation system |
| 4 | Power plant auxiliary medium voltage switchgear protection and monitoring |
| 5 | Old REF542 relay replacement and substation retrofit spare project |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:What is ABB REF542plus? A:It is multifunction bay protection and control unit for medium voltage switchgear, integrating protection, measurement, control and communication for substation automation. |

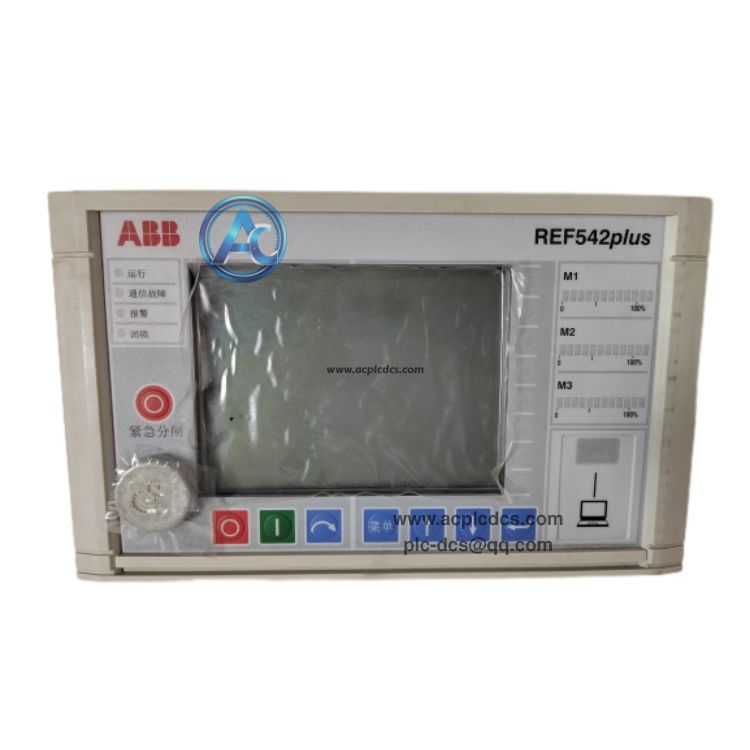

| 2 | Q:What is the hardware composition? A:It consists of central main unit and separate HMI panel, connected by RS485 cable, HMI can be mounted on switchgear door for local operation. |
| 3 | Q:Is REF542plus still in production? A:ABB stopped production of REF542plus since 2020. Available stock is surplus or refurbished spare parts for existing substation maintenance. |
