Products Description

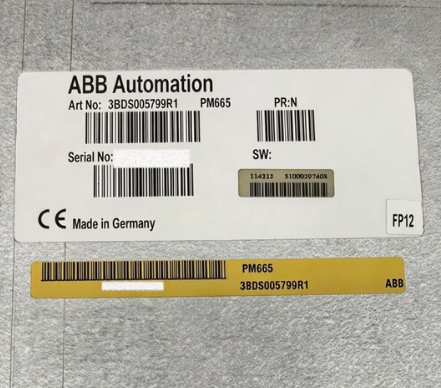

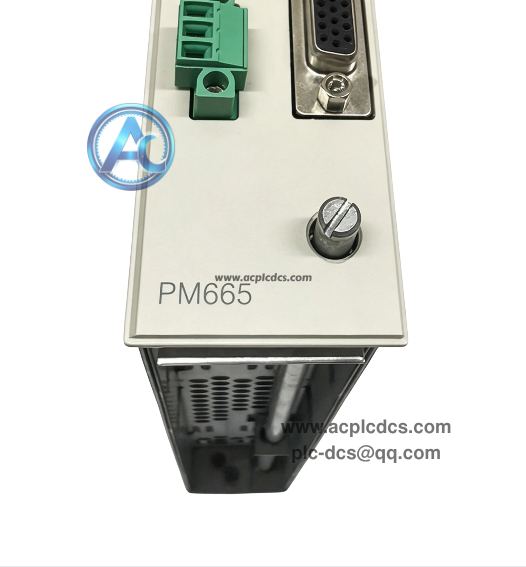

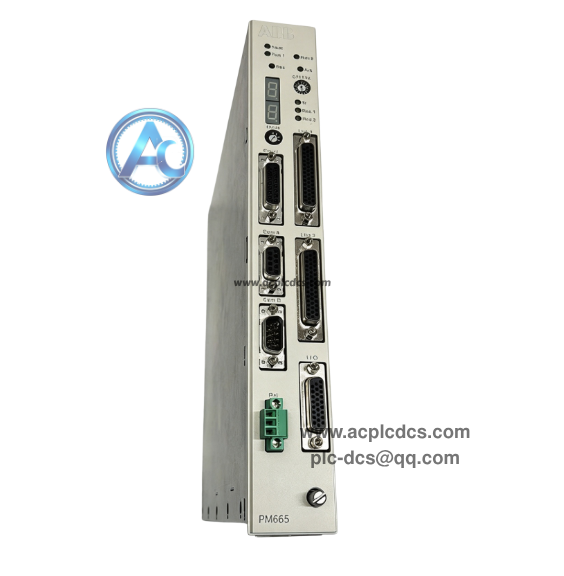

ABB PM665 3BDS005799R1 Processor Module
ABB PM665 (3BDS005799R1) is a PowerPC-based high-performance processor module for ABB Advant Controller 160 / Advant Master DCS system. It integrates redundancy voter, high-speed link and speed input interface, acting as the central core to execute control algorithms and coordinate system communication.
This module supports dual lockstep redundant architecture and SIL2 safety capability, with built-in comprehensive self-diagnosis. It connects to I/O racks and plant supervisory systems, widely deployed in power, pulp & paper and petrochemical process control. It is discontinued, supplied as surplus or refurbished spare parts for system replacement.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | ABB |
| 2 | Model | PM665, Part No:3BDS005799R1 |
| 3 | Module Type | Advant AC160 Processor Module |
| 4 | CPU Architecture | PowerPC, Dual Lockstep Redundant |
| 5 | Safety Rating | SIL2, extendable to SIL3 |
| 6 | Interfaces | High-speed link, speed input, I/O bus |
| 7 | Operating Temperature | 0℃ ~ +60℃ |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Run process control logic, sequence control and closed-loop regulation algorithms |
| 2 | Redundancy voter function for dual lockstep CPU fault detection and comparison |
| 3 | High-speed communication with I/O modules and upper-level DCS supervision system |
| 4 | Speed signal acquisition for rotating machinery monitoring and protection |
| 5 | Continuous hardware self-diagnosis for fault alarming and module health monitoring |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Power plant boiler, turbine and auxiliary process DCS control |
| 2 | Pulp and paper manufacturing production line automation control |
| 3 | Petrochemical continuous process and rotating machinery monitoring system |
| 4 | Advant Master / AC160 DCS rack spare replacement project |
| 5 | Legacy ABB DCS system maintenance, retrofit and spare inventory |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:What is ABB PM665 3BDS005799R1? A:It is the core processor module of ABB Advant AC160 DCS. Built on PowerPC with lockstep redundancy, it executes control logic, handles I/O communication and collects speed signals for continuous process industries. |
| 2 | Q:What is lockstep redundancy? A:Dual CPUs run identical instructions synchronously, and the voter compares outputs in real time. If discrepancy occurs, the system triggers fault alarm to avoid silent failure and meet SIL2 safety requirement. |
| 3 | Q:Is ABB PM665 3BDS005799R1 still in production? A:This processor module has been discontinued by ABB. Available products are new surplus or refurbished spare parts for existing Advant Master DCS system maintenance. |
