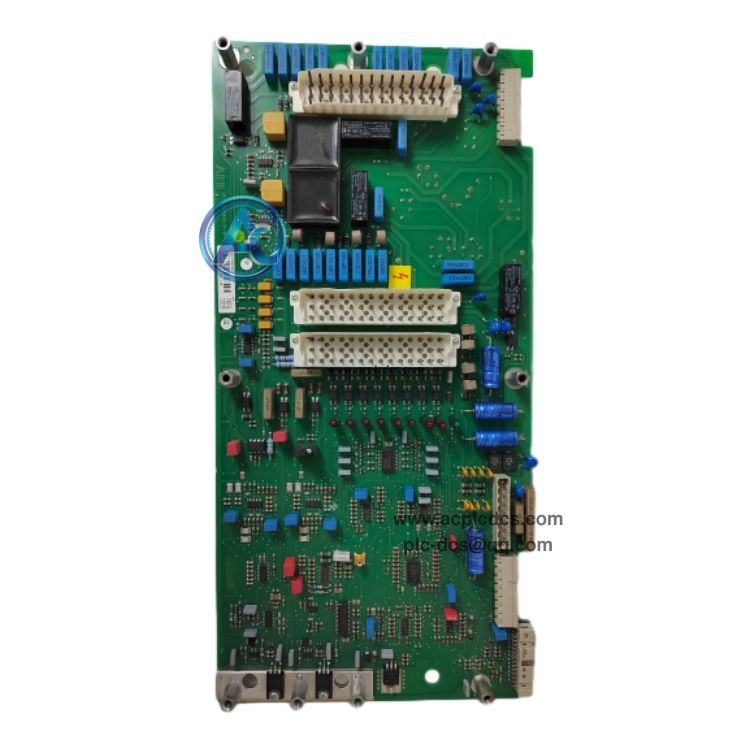

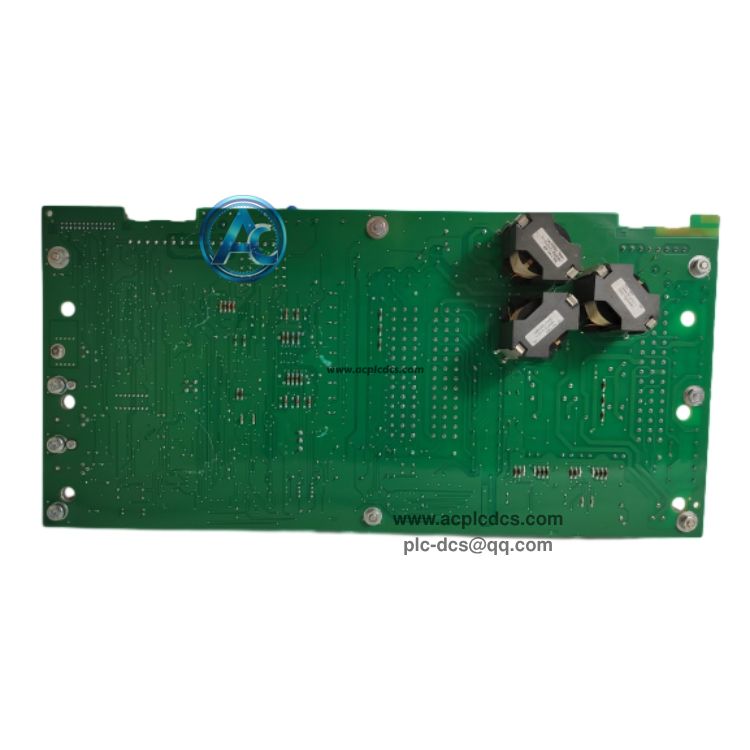

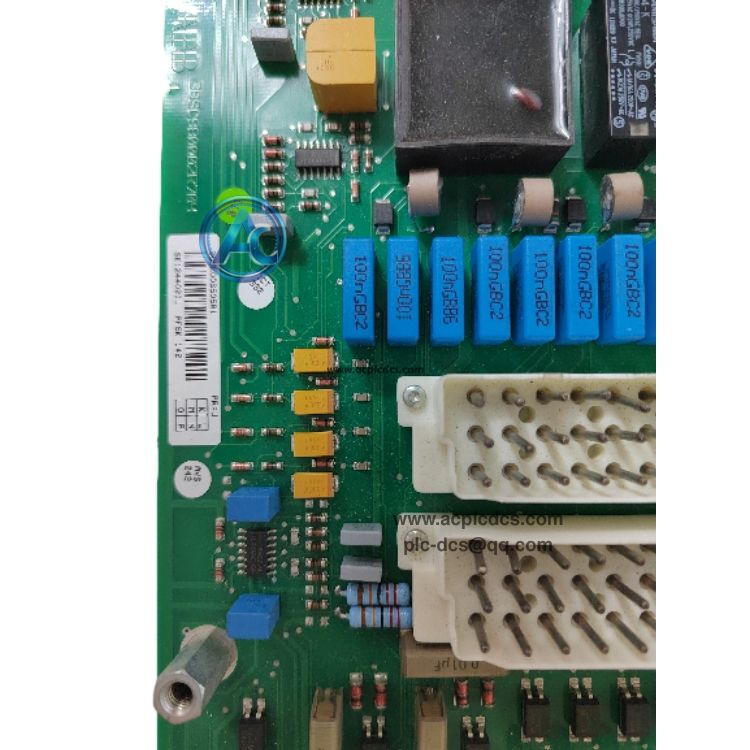

ABB PFSK142 3BSE006505R1 Signal Processing Board in stock
ABB PFSK142 3BSE006505R1 is a signal processing board belonging to ABB Advant OCS S100 series DCS system. It performs high-speed signal calculation and data processing tasks, realizing data exchange between the controller and I/O modules through the backplane bus.
This board is mounted inside the S100 rack and equipped with hardware self-test function to detect internal circuit faults. It is a discontinued legacy component, commonly supplied as surplus or refurbished spare parts for maintenance of existing Advant distributed control systems.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | ABB |
| 2 | Model | PFSK142 3BSE006505R1 |
| 3 | Module Type | Signal Processing Board, S100 Series |
| 4 | Compatible System | Advant OCS / MOD300 DCS System |
| 5 | Communication Interface | S100 backplane bus |
| 6 | Installation | S100 I/O subrack |
| 7 | Operating Temperature | 0℃ ~ +60℃ |
Core Functions
| No. | Function Description |
|---|---|
| 1 | High-speed industrial signal processing and arithmetic calculation for DCS control logic |
| 2 | Data forwarding and interaction between controller and field I/O modules |
| 3 | Built-in hardware self-test to identify internal circuit failures and report alarms |
| 4 | Coordinate signal transmission of multiple I/O modules in the S100 rack |
| 5 | Support real-time process data transmission for closed-loop control applications |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Power plant Advant OCS DCS process control and monitoring system |
| 2 | Chemical plant MOD300 distributed control system spare replacement |
| 3 | Pulp & paper mill legacy S100 rack maintenance and retrofit |
| 4 | Oil and gas production facility continuous process control system |
| 5 | Legacy ABB Advant system spare parts backup project |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:What is ABB PFSK142 3BSE006505R1? A:It is S100 series signal processing board for ABB Advant OCS DCS, responsible for high-speed signal processing and data communication between controller and I/O modules. |
| 2 | Q:Which rack does this board fit into? A:It is designed for ABB S100 I/O subrack and communicates with other modules via the backplane bus. |
| 3 | Q:Is this board still in production? A:PFSK142 has been discontinued. Available stock mainly includes surplus and refurbished units for old Advant DCS system maintenance. |
