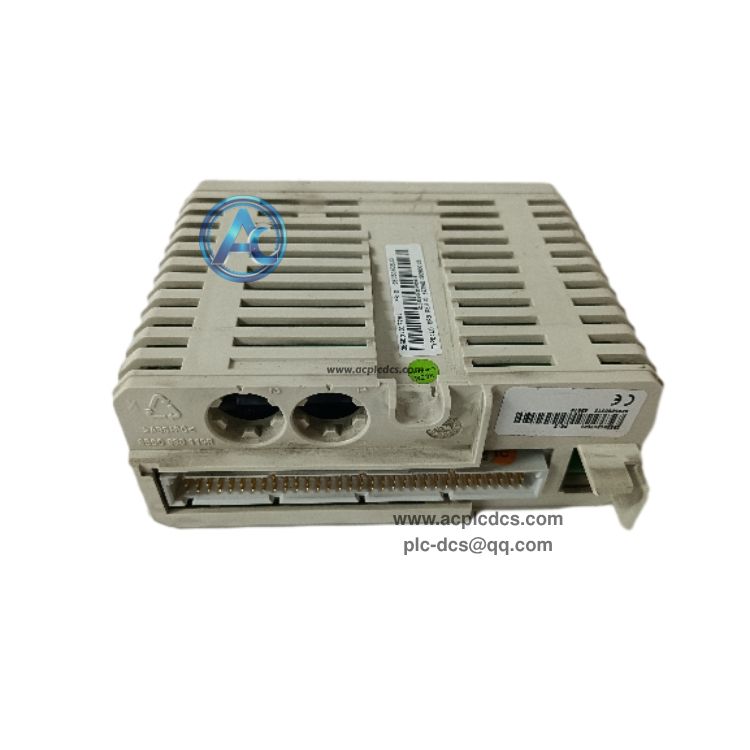

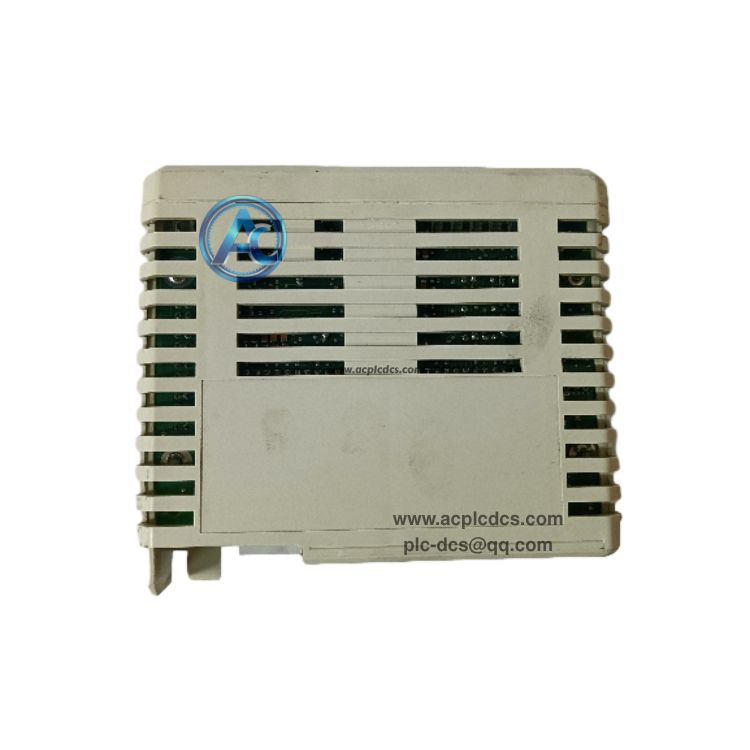

ABB LDGRB-01 3BSE013177R1 Logic Controller Board in stock

ABB LDGRB-01 3BSE013177R1 is a logic controller board matched with GRBTU base terminal unit and GOP2 operator panel under ABB 800xA DCS platform. It serves as the local logic processing unit to realize signal conversion, data buffering and communication management for the HMI workstation assembly.

This board adopts PowerPC processor and VxWorks embedded operating system, supporting stable long-time operation in control room environment. It is commonly assembled together with GOP2 touch screen and GRBTU base, widely supplied as spare replacement part for power plant and petrochemical DCS cabinet maintenance projects.

Data Parameters

• 1. Brand: ABB.

• 2. Model: LDGRB-01, Part No:3BSE013177R1.

• 3. Product Type: HMI Logic Controller Board.

• 4. Applicable System: ABB 800xA DCS System.

• 5. Matching Components: GOP2 panel and GRBTU 3BSE013175R1 base unit.

• 6. Processor: PowerPC MPC5200B 400MHz.

• 7. Memory: 256MB RAM, 2GB flash storage.

• 8. Communication: Ethernet and internal backplane bus interface.

• 9. Power Supply: 24V DC.

• 10. Operating Temperature: 0℃ ~ +50℃.

Core Functions

• 1. Process HMI data and execute local logic for GOP2 operator panel workstation.

• 2. Realize data exchange between GRBTU base terminal unit and 800xA DCS control network.

• 3. Handle alarm message forwarding, historical data caching and panel access permission management.

• 4. Built-in hardware self-diagnosis to monitor board running status and report fault alarms.

• 5. Support firmware upgrade and on-site parameter configuration for HMI workstation assembly.

Application Scenarios

• 1. Power plant DCS control room GOP2 HMI workstation spare parts replacement.

• 2. Petrochemical plant ABB 800xA distributed control system cabinet renovation project.

• 3. Metallurgy, pulp and paper heavy industry automation HMI control unit maintenance.

• 4. Offshore platform and marine control cabinet human-machine interface assembly.

• 5. Legacy ABB 800xA system upgrade and logic controller board fault replacement.

FAQ

• 1. Q: What is ABB LDGRB-01 3BSE013177R1?
      A: It is logic controller board for ABB 800xA DCS, matched with GOP2 touch panel and GRBTU base unit to form complete HMI workstation.

• 2. Q: What accessories does LDGRB-01 work with?
      A: It works with GOP2 operator panel and GRBTU 3BSE013175R1 gateway base terminal unit.

• 3. Q: What operating system runs on this board?
      A: It runs VxWorks embedded operating system, which is stable and widely used in industrial DCS control equipment.
