Products Description

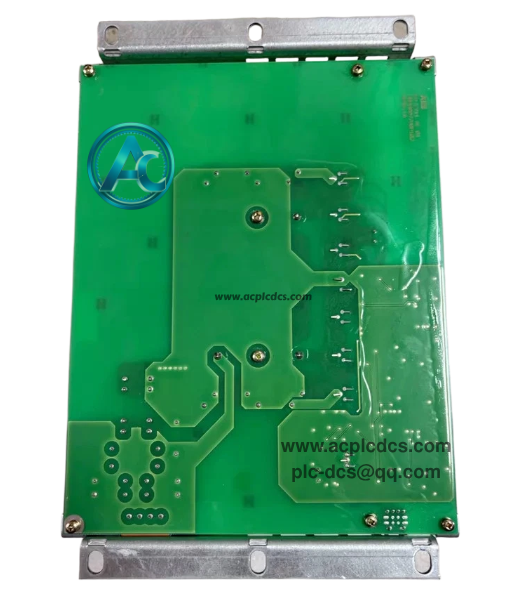

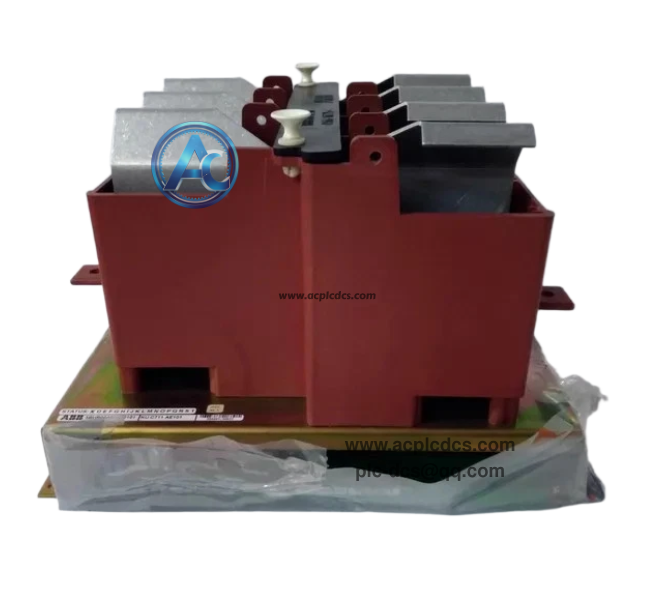

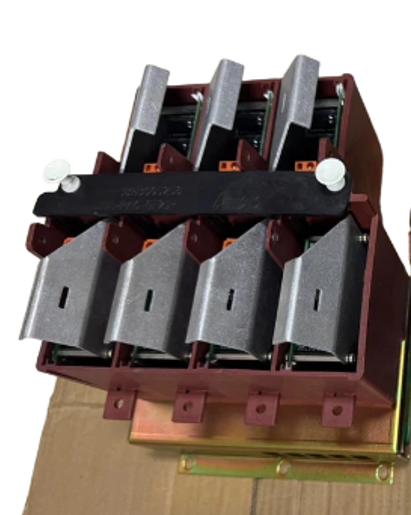

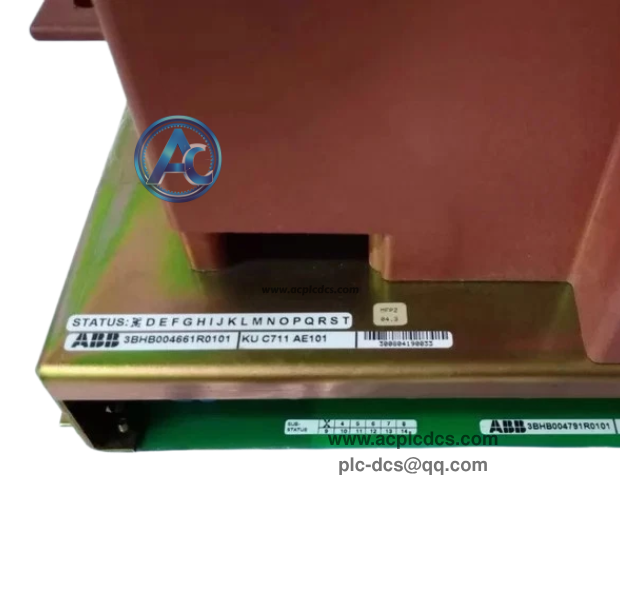

ABB KUC711AE101 3BHB004661R0101 Gate Unit Power Supply Module in stock
ABB KUC711AE101 3BHB004661R0101 is a gate unit power supply module for ABB generator excitation control and Symphony Plus DCS systems. It supplies stable DC power for gate drive units and supports redundant high-speed bus communication between system components.
This rack-mounted module integrates multi-level protection circuits and diagnostic LED indicators. It is a discontinued legacy spare, widely used for maintenance replacement of power plant excitation control systems.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | ABB |
| 2 | Model | KUC711AE101, 3BHB004661R0101 |
| 3 | Module Type | Gate Unit Power Supply Module |
| 4 | Output | 24VDC power for gate drive units |
| 5 | Mounting | Rack mount, backplane bus connection |
| 6 | Operating Temperature | -20 ~ +60°C |
| 7 | Status | Discontinued legacy spare part |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Provide stable 24V DC power supply for power semiconductor gate drive units |
| 2 | Support redundant high-speed bus communication within excitation control systems |
| 3 | Built-in overvoltage, undervoltage and short-circuit protection for power circuit |
| 4 | Onboard LED indicators for power status and fault diagnostic display |
| 5 | Work cooperatively with excitation regulator to stabilize generator output voltage |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Generator excitation control system in thermal power plants |
| 2 | ABB Symphony Plus DCS distributed control rack system |
| 3 | Hydroelectric generator voltage regulation and power control |
| 4 | Legacy power automation system spare replacement and retrofit |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q: What is ABB KUC711AE101 3BHB004661R0101? A: It is an ABB gate unit power supply module used for generator excitation control and Symphony Plus DCS systems. |
| 2 | Q: What is the main function of this module? A: It supplies 24V DC power to gate drive units and supports redundant communication for excitation control racks. |
| 3 | Q: Which systems is it compatible with? A: It is designed for ABB Symphony Plus and generator excitation control systems in power plants. |
