Products Description

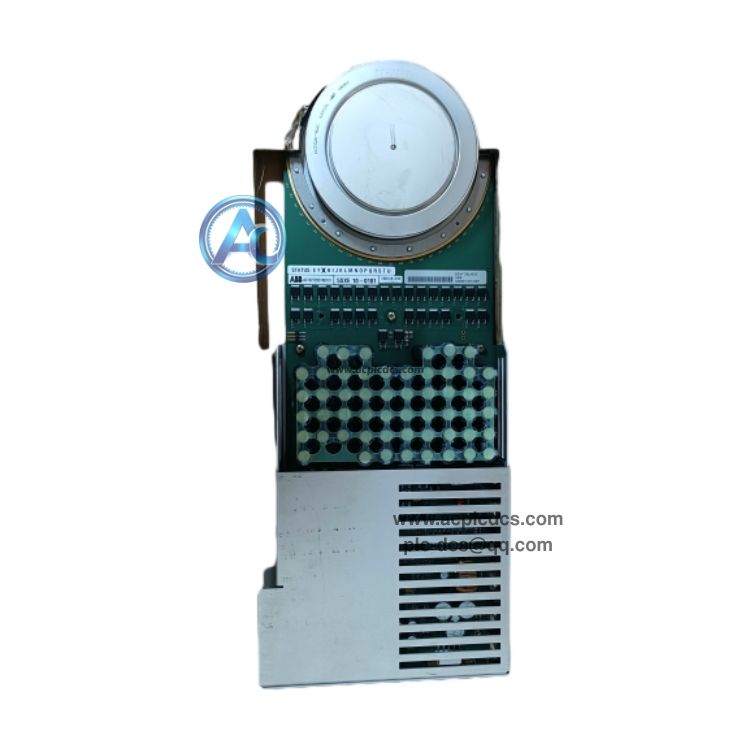

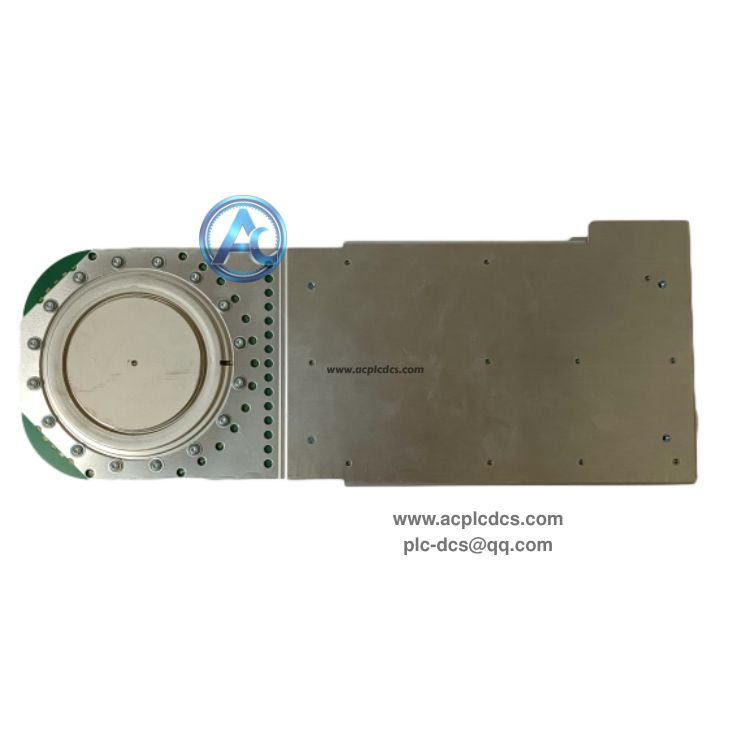

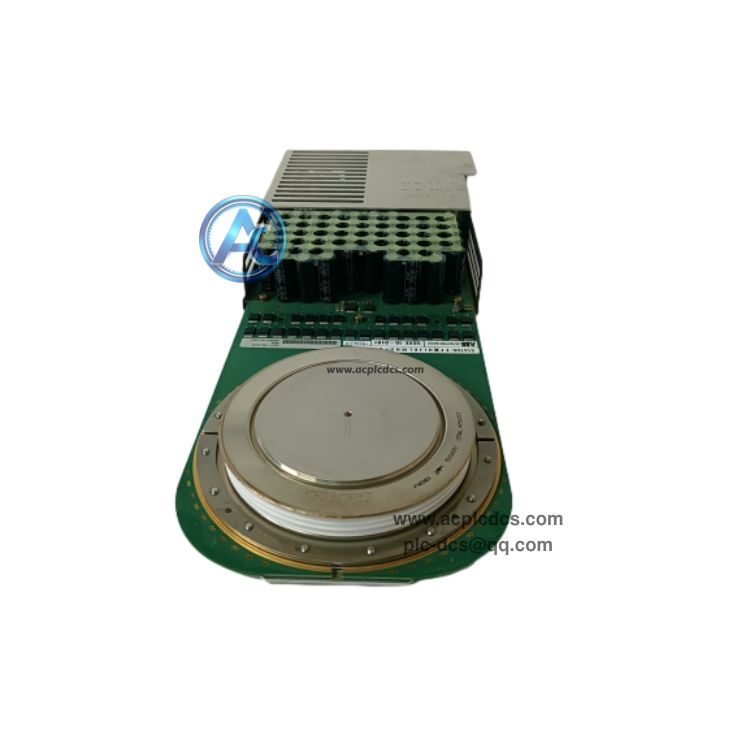

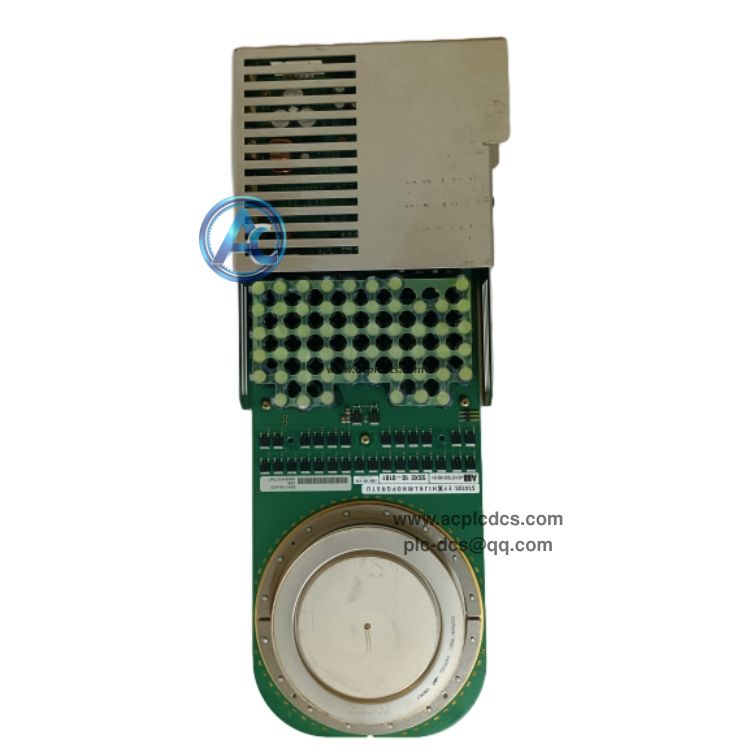

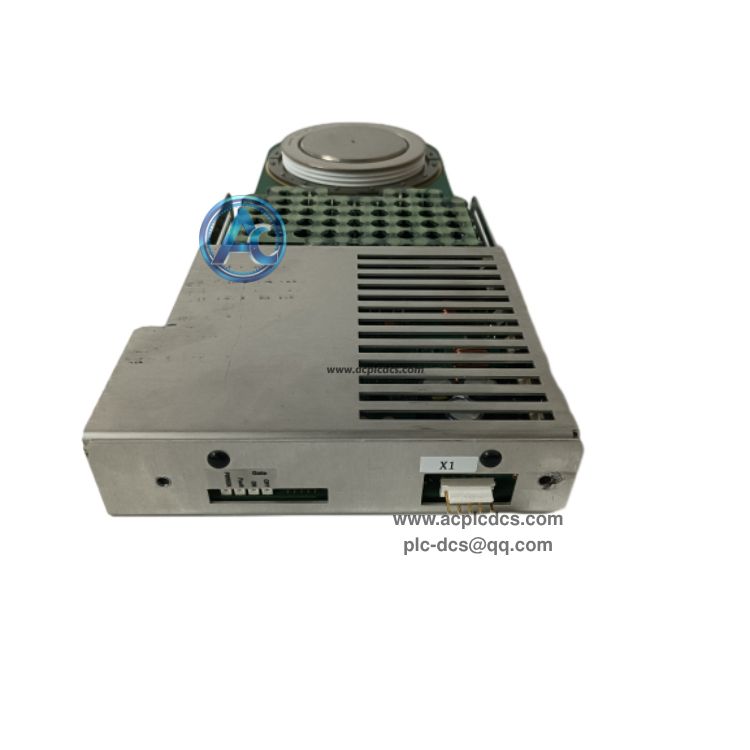

ABB 5SHY35L4520 5SXE10-0181 AC10272001R0101 IGCT Power Module in stock
ABB 5SHY35L4520 with codes 5SXE10-0181 and AC10272001R0101 is a high-power IGCT integrated gate-commutated thyristor power module. It combines IGCT chip, freewheeling diode and gate driver unit for medium voltage high-power power conversion systems.
This water-cooled IGCT module features high voltage rating, large current capacity and excellent short-circuit withstand performance. It is widely used in ABB medium voltage inverters and generator excitation systems as key spare components for power unit overhaul and replacement.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | ABB |
| 2 | Model | 5SHY35L4520, 5SXE10-0181, AC10272001R0101 |
| 3 | Module Type | IGCT Integrated Gate Commutated Thyristor Module |
| 4 | Rated Voltage | 4500V |
| 5 | Rated Current | 4000A |
| 6 | Cooling Method | Water cooling |
| 7 | Internal Components | IGCT chip, freewheeling diode, integrated gate driver |
| 8 | Typical Platform | ACS5000 / ACS6000 MV drive, UNITROL excitation system |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Core high-power switching device for medium voltage power unit, to realize AC-DC and DC-AC power conversion |
| 2 | Integrated gate driver receives optical trigger signal to control turn-on and turn-off of IGCT chip |
| 3 | Built-in freewheeling diode to absorb inductive current and protect power circuit during switching actions |
| 4 | High short-circuit tolerance, quickly cut off fault current to protect medium voltage power system |
| 5 | Low switching loss under high power density water-cooled working condition for stable operation |
Application Scenarios
| No. | Application |
|---|---|
| 1 | ABB ACS5000, ACS6000 medium voltage water-cooled variable frequency drive power unit |
| 2 | Power plant UNITROL generator excitation cabinet power conversion assembly |
| 3 | Metallurgy, mining large medium voltage motor speed regulation system |
| 4 | Cement, oil & gas high-power fan and pump medium voltage drive equipment |
| 5 | Medium voltage power conversion equipment spare parts replacement and field overhaul |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:What is 5SHY35L4520? A:It is ABB high current IGCT power module with multiple part numbers, widely used in medium voltage drives and generator excitation power units. |
| 2 | Q:What cooling method does this module adopt? A:Water cooling design, suitable for high current and high power density medium voltage power unit cabinet. |
| 3 | Q:What is the advantage of this IGCT module? A:It supports large rated current, strong short-circuit protection capability, and stable performance for long-term heavy-load industrial power electronic applications. |
